E336D erpillar Excavator Transmission Gearbox Final Drive 296-6246 336D Travel Gearbox
Kemampuan Supply
Kemampuan Supply: 500 Potongan / potongan per Bulan
Kemasan & Pengiriman
Rincian Kemasan:Paket pengiriman standar
Port: Huangpu
Memimpin waktu:
| Jumlah (potongan) | 1 - 1 | > 1 |
| Est. Est. Time(days) Waktu (hari) | 2 | Untuk dinegosiasikan |
E336D erpillar Excavator Transmission Gearbox Final Drive
Deskripsi Produk
| Bagian nama | E336D Transmisi Gearbox Final Drive 296-6246 336D Travel Gearbox |
| Excavator Terapan | 336D |
| Bagian no. | 296-6246 |
| Jaminan | 3 bulan sejak tanggal B / L |
| Tempat asal | CINA |
| Jangka waktu pembayaran | T / T, Western Union, Pembayaran Aman, Jaminan Perdagangan, Paypal |
| MOQ | 1 buah |
| Sarana transportasi | Melalui laut, kargo udara atau DHL, FEDEX, EMS, UPS dll. |
| Pengepakan | Kotak kayu |
| Ukuran kemasan | Standar kargo ekspor |
| Waktu pengiriman | 2-4 hari kerja setelah pembayaran diterima |

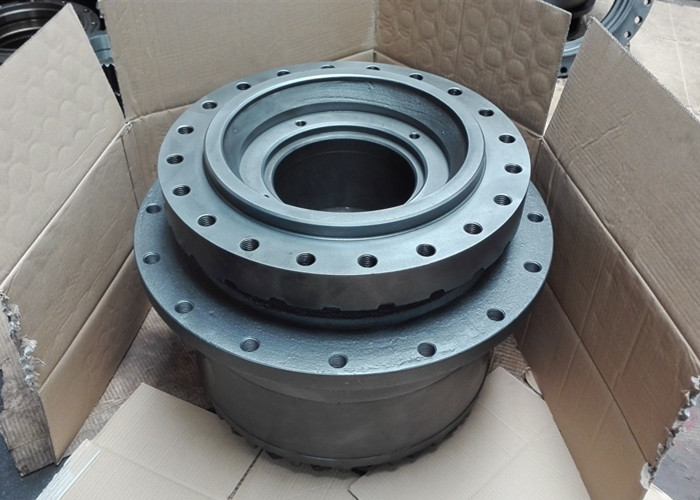

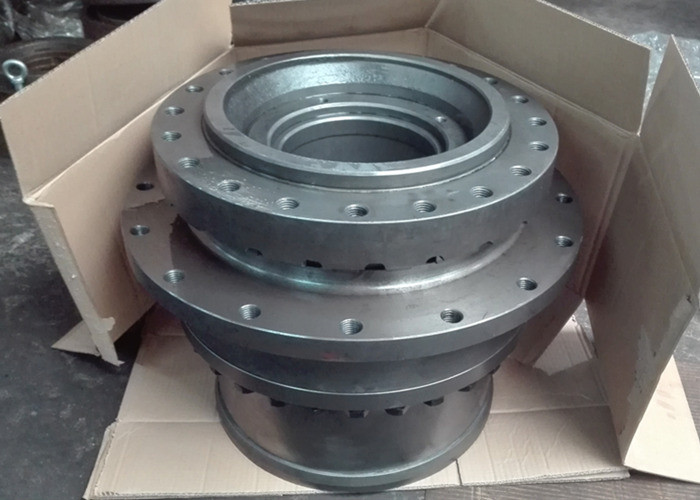

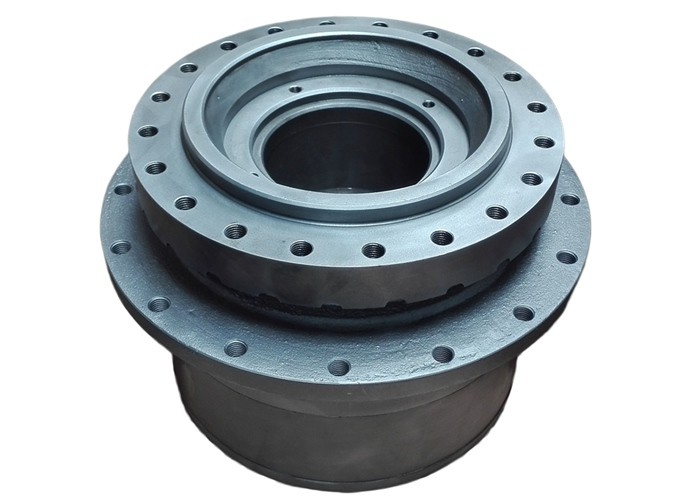

E336D erpillar Excavator Transmission Gearbox Final Drive Gambar
SIS ERPILLAR
| Pos. | Bagian no | Jumlah | Nama bagian | Komentar |
|---|---|---|---|---|
| 1. | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) | |
| 2. | 7Y-1056 B | [1] | SHIM (0,8-MM THK) | |
| 7Y-1057 B | [1] | SHIM (1-MM THK) | ||
| 267-6809 B | [1] | SHIM (0,75-MM THK) | ||
| 267-6810 B | [1] | SHIM (0,85-MM THK) | ||
| 267-6811 B | [1] | SHIM (0,9-MM THK) | ||
| 267-6812 B | [1] | SHIM (0,95-MM THK) | ||
| 267-6813 B | [1] | SHIM (1.2-MM THK) | ||
| 267-6814 B | [1] | SHIM (1,4-MM THK) | ||
| 267-6815 B | [1] | SHIM (THK 1,8-MM) | ||
| 267-6816 B | [1] | SHIM (2-MM THK) | ||
| 267-6817 B | [1] | SHIM (2.3-MM THK) | ||
| 4. | 094-0577 B | [1] | PLATE (7-MM THK) | |
| 094-0578 B | [1] | PLATE (8-MM THK) | ||
| 094-0579 B | [1] | PLATE (9-MM THK) | ||
| 094-0580 B | [1] | PLATE (10-MM THK) | ||
| 8. | 114-1541 | [6] | PIN-DOWEL | |
| 9. | 136-2898 | [14] | WASHER (58.3X89X1-MM THK) | |
| 10. | 191-2690 | [6] | WASHER (42.3X70X1-MM THK) | |
| 11. | 227-6190 | [1] | PERUMAHAN-MOTOR | |
| 12. | 227-6192 | [1] | GEAR-COUPLING | |
| 13. | 255-2272 | [1] | SEAL GP-DUO-CONE | |
| 23. | 279-0344 | [2] | MENDAPATKAN ROLLER AS-TAPERED | |
| 24. | 295-9234 | [1] | SEAL-O-RING | |
| 25. | 296-6181 | [1] | PERUMAHAN | |
| 26. | 296-6182 | [1] | PENUTUP | |
| 27. | 296-6183 | [1] | PLANETARY CARRIER | |
| 28. | 296-6184 | [4] | GEAR-PLANETARY (21-TEETH) | |
| 29. | 296-6185 | [4] | BATANG | |
| 30. | 296-6186 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 31. | 296-6189 | [1] | GEAR-SUN (20-TEETH) | |
| 32. | 296-6190 | [1] | GEAR-SUN (20-TEETH) | |
| 33. | 296-6192 | [1] | SPACER (143X170X8-MM THK) | |
| 34. | 296-6194 | [1] | PLANETARY CARRIER | |
| 35. | 296-6195 | [3] | BATANG | |
| 36. | 296-6230 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 37. | 296-6231 | [1] | GEAR-SUN (20-TEETH) | |
| 38. | 296-6232 | [1] | CARRIER AS | |
| 39. | 296-6247 | [11] | BEARING AS-ROLLER | |
| 40. | 296-6248 | [3] | BEARING AS-ROLLER | |
| 41. | 296-6311 | [1] | GEAR-RING (64-TEETH) | |
| 42. | 093-1731 | [2] | RING-RETAINING | |
| 43. | 095-0891 | [7] | PIN-SPRING | |
| 44. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 45. | 096-8058 | [3] | RING-RETAINING | |
| 46. | 191-2645 | [1] | KOPEL | |
| 47. | 3E-2338 | [2] | PIPA PLUG | |
| 48. | 6V-8133 M | [10] | BOLT (M24X3X80-MM) | |
| 49. | 6V-8237 | [10] | WASHER (26X44X4-MM THK) | |
| 50. | 7M-8485 | [2] | SEAL-O-RING | |
| 51. | 7Y-5217 M | [30] | KEPALA BOLT-SOCKET (M20X2.5X70-MM) | |
| 52. | 8T-4123 | [30] | WASHER (3.62X5.75X0.375-MM THK) | |
| 53. | 8T-4223 | [16] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 54. | 8T-4956 M | [16] | BOLT (M12X1.75X35-MM) | |
| 55. | 1U-8846 B | SEALANT-GASKET | ||
| B | GUNAKAN SEPERTI YANG DIBUTUHKAN | |||
| M. | BAGIAN METRIK | |||
1. Kualitas tinggi
2. Harga bersaing
3. Pengiriman Yang Cepat
4. Layanan terbaik
Q1. Q1. What is your terms of packing? Apa ketentuan anda packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. A: Umumnya, kami mengemas barang-barang kami dalam kotak putih dan karton coklat netral. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. Jika Anda memiliki paten terdaftar secara hukum, kami dapat mengemas barang-barang dalam kotak merek Anda setelah mendapatkan surat otorisasi Anda.
Q2. Q2. What are payments available? Apakah pembayaran tersedia?
A: Perdagangan jaminan, T / T, Western Union, Paypal
Q3. Q3. What is your terms of delivery? Apa ketentuan pengiriman Anda?
A: EXW, FOB, CFR
Q4. Q4. How about your delivery time? Bagaimana dengan waktu pengiriman Anda?
A: Generally, it will take 1 to 3 days after receiving your advance payment. A: Secara umum, ini akan memakan waktu 1 hingga 3 hari setelah menerima pembayaran di muka Anda. The specific delivery time depends on the items and the quantity of your order. Waktu pengiriman spesifik tergantung pada barang dan jumlah pesanan Anda.
Produk kami dijual di seluruh dunia. Anda dapat yakin dengan seluruh proses produk kami.
