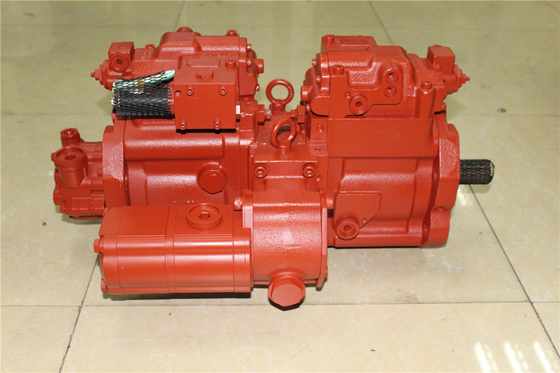

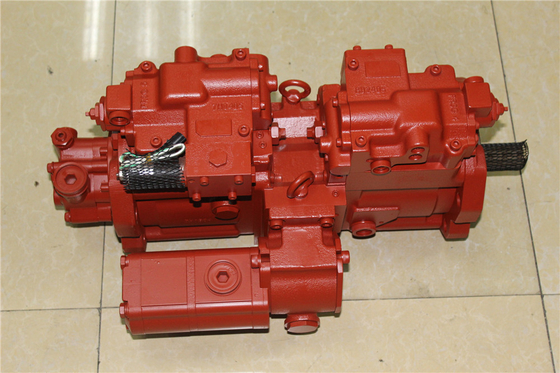

BelpartsR140LC-7 R140LC-7Apompa utama excavator R140LC-9 pompa hidrolik 31Q4-10010 31N3-10010 31N3-10011
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin: R140LC-7 R140LC-7A R140LC-9
Ukuran kemasan: 84*38*49
Nomor bagian: 31Q4-10010 31N3-10010 31N3-10011
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | R140LC-7 R140LC-7A |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 31Q4-10010 31N3-10010 31N3-10011 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N3-10010 | Pompa Utama | 1 | |
| * | 31N3-10011 | Pompa Utama | 1 | |
| 111 | XJBN-00432 | SHAFT ((F) - DRIVE | 1 | |
| 113 | XJBN-00431 | SHAFT ((R) - DRIVE | 1 | |
| 114 | XJBN-00430 | PEMANGGUNG-SPLINE | 1 | |
| 123 | XJBN-00429 | Berkas-Roller | 2 | |
| 124 | XJBN-00428 | Jaring bantalan | 2 | |
| 127 | XJBN-00427 | SPACE-LAYER | 4 | |
| N141 | XJBN-00426 | Blok-silinder | 2 | |
| N151 | XJBN-00425 | Piston | 18 | |
| N152 | XJBN-00424 | Sepatu | 18 | |
| 153 | XJBN-00423 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | Sepatu plat | 2 | |
| N212 | XJBN-00419 | Plat-Swash | 2 | |
| N214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | Dukungan | 2 | |
| 261 | XJBN-00416 | COVER ((F) - SEAL | 1 | |
| 271 | XJBN-00415 | Casing-Pump | 2 | |
| 312 | XJBN-00414 | BLOCK-VALVE | 1 | |
| N313 | XJBN-00413 | PLATE ((R) -VALVE | 1 | |
| N314 | XJBN-00412 | PLATE ((L) -VALVE | 1 | |
| 401 | XJBN-00411 | PELUANG | 8 | |
| 406 | XJBN-00410 | PELUANG | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00409 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| N531 | XJBN-00408 | PING-TILT | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00406 | STOPPER ((L) | 2 | |
| 535 | XJBN-00405 | STOPPER (S) | 2 | |
| N548 | XJBN-00404 | PIN-feed kembali | 2 | |
| 702 | XJBN-00232 | O-RING | 2 | |
| 702 | XJBN-00817 | O-RING | 2 | |
| 710 | XJBN-00387 | O-RING | 1 | |
| 717 | XJBN-00401 | O-RING | 2 | |
| 719 | XJBN-00400 | O-RING | 2 | |
| 724 | XJBN-00044 | O-RING | 18 | |
| 725 | XJBN-00045 | O-RING | 2 | |
| 728 | XJBN-00097 | O-RING | 4 | |
| 732 | XJBN-00283 | O-RING | 2 | |
| 732 | XJBN-00820 | O-RING | 2 | |
| 774 | XJBN-00399 | SEAL-OIL | 1 | |
| 789 | XJBN-00398 | RING-BACK UP | 2 | |
| 792 | XJBN-00397 | RING-BACK UP | 2 | |
| 808 | XJBN-00396 | NUT-HEX | 4 | |
| 824 | XJBN-00395 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PLAT PIN-VALVE | 2 | |
| 886 | XJBN-00365 | Pin-SPRING | 4 | |
| 901 | XJBN-00393 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00392 | SETUAN SELINGKAP | 2 | |
| 981 | XJBN-00391 | NAME PLATE (Plat Nama) | 1 | |
| 981 | XJBN-00156 | NAME PLATE (Plat Nama) | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| 011 | XJBN-00437 | Piston Sub ASSY | 18 | |
| 013 | XJBN-00436 | Silinder ASSY-RH | 1 | |
| 014 | XJBN-00435 | Silinder ASSY-LH | 1 | |
| 030 | XJBN-00434 | SWAASH PLATE ASSY | 2 | |
| 530 | XJBN-00433 | SELINGKAP PIN ASSY Lihat ILLUST |
2 | |
| N | @ | Pipa injeksi bahan bakar & NOZZLE | AR |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
L1 | L | Berat badan (kg) |
|||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
||||||
| CBHZ-F23-AL** | 23 | 20 | 25 | 600 | 2500 | 3000 | 92 | 60 | 116 | 4.1 |
| CBHZ-F25-AL** | 25 | 61.5 | 119 | 4.3 | ||||||
| CBHZ-F26.5-AL** | 26.5 | 62.5 | 121 | 4.5 | ||||||
| CBHZ-F28.2-AL** | 28.2 | 63.5 | 123 | 4.6 | ||||||
| CBHZ-F30-AL** | 30 | 64.5 | 125 | 4.8 | ||||||
| CBHZ-F32-AL** | 32 | 65.5 | 127 | 5.0 | ||||||
| CBHZ-F36-AL** | 36 | 68 | 132 | 5.4 | ||||||
Produk kami dijual di seluruh dunia. Anda dapat yakin dengan seluruh proses produk kami.
