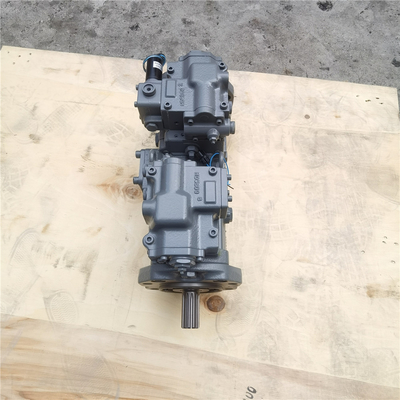

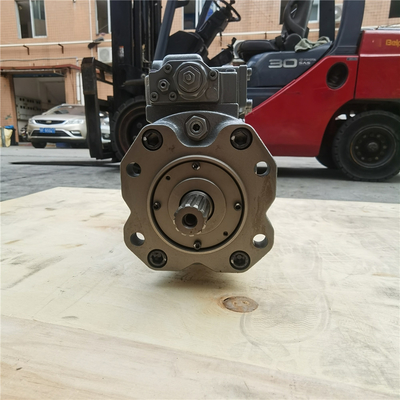

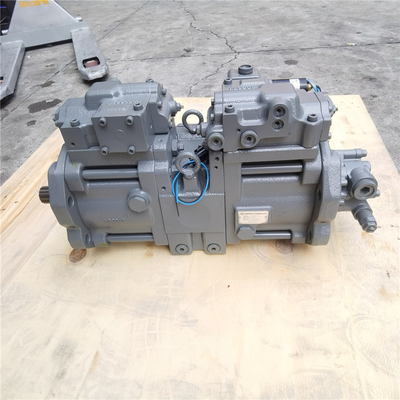

Belparts excavator pompa utama R160LC-7 R180LC-7 pompa hidrolik 31N5-10010 31N5-10011 31N5-10030 untuk Hyundai
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:R160LC-7 R180LC-7
Ukuran kemasan: 84*38*49
Nomor bagian: 31N5-10010 31N5-10011 31N5-10030
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | R160LC-7 R180LC-7 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 31N5-10010 31N5-10011 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N5-10010 | Pompa Utama | 1 | |
| * | 31N5-10011 | Pompa Utama | 1 | |
| *-1 | @ | Pipa injeksi bahan bakar & NOZZLE | 1 | |
| 111 | XJBN-00802 | SHAFT ((F) - DRIVE | 1 | |
| 113 | XJBN-00803 | SHAFT ((R) - DRIVE | 1 | |
| 114 | XJBN-00430 | PEMANGGUNG-SPLINE | 1 | |
| 123 | XJBN-00429 | Berkas-Roller | 2 | |
| 124 | XJBN-00805 | Jaring bantalan | 2 | |
| 127 | XJBN-00806 | SPACE-LAYER | 4 | |
| S141 | XJBN-00807 | Blok-silinder | 2 | |
| S151 | XJBN-00425 | Piston | 18 | |
| S152 | XJBN-00424 | Sepatu | 18 | |
| 153 | XJBN-00808 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | Sepatu plat | 2 | |
| S212 | XJBN-00419 | Plat-Swash | 2 | |
| S214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | Dukungan | 2 | |
| 261 | XJBN-00809 | COVER-FR | 1 | |
| 271 | XJBN-00415 | Casing-Pump | 2 | |
| 312 | XJBN-00414 | BLOCK-VALVE | 1 | |
| S313 | XJBN-00413 | PLATE ((R) -VALVE | 1 | |
| S314 | XJBN-00412 | PLATE ((L) -VALVE | 1 | |
| 401 | XJBN-00411 | PELUANG | 8 | |
| 406 | XJBN-00410 | PELUANG | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00409 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| S531 | XJBN-00815 | PING-TILT | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00816 | STOPPER ((L) | 2 | |
| 535 | XJBN-00405 | STOPPER (S) | 2 | |
| S548 | XJBN-00360 | PIN-feed kembali | 2 | |
| K702 | XJBN-00888 | O-RING | 2 | |
| K710 | XJBN-00402 | O-RING | 2 | |
| K717 | XJBN-00401 | O-RING | 2 | |
| K719 | XJBN-00400 | O-RING | 2 | |
| K724 | XJBN-00361 | O-RING | 18 | |
| K725 | XJBN-00362 | O-RING | 2 | |
| K728 | XJBN-00097 | O-RING | 4 | |
| K732 | XJBN-00820 | O-RING | 2 | |
| K774 | XJBN-00098 | SEAL-OIL | 1 | |
| K789 | XJBN-00398 | RING-BACK UP | 2 | |
| K792 | XJBN-00397 | RING-BACK UP | 2 | |
| 808 | XJBN-00396 | NUT-HEX | 4 | |
| 824 | XJBN-00395 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PLAT PIN-VALVE | 2 | |
| 886 | XJBN-00365 | Pin-SPRING | 4 | |
| 901 | XJBN-00393 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00392 | SETUAN SELINGKAP | 2 | |
| 981 | XJBN-00156 | NAME PLATE (Plat Nama) | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE Lihat 4020, belakang |
1 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE Lihat 4020, depan |
1 | |
| *-3 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4030 |
1 | |
| S | XJBN-00437 | Piston Sub ASSY Lihat ILLUST |
1 | |
| S | XJBN-00798 | Silinder Sub ASSY-RH Lihat ILLUST |
1 | |
| S | XJBN-00799 | CYLINDER SUB ASSY-LH Lihat ILLUST |
1 | |
| S | XJBN-00800 | SWASH PLATE SUB ASSY Lihat ILLUST |
1 | |
| S | XJBN-00801 | TILTING PIN SUB ASSY Lihat ILLUST |
1 | |
| K | XJBN-01106 | SEAL KIT-PUMP UNIT Lihat ILLUST |
1 |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) |
Volumetrik efisiensi (≥%) |
L1 | L | A | d | D | Berat badan (kg) |
||||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
||||||||||
Intet |
Outlet |
|||||||||||||
| CBN-F520-BF** | 20 | 20 | 25 | 600 | 2500 | 3000 | 92 | 66.5 | 134 | 48 | 65 | 25 | 20 | 5.1 |
| CBN-F525-BF** | 25 | 68.5 | 138 | 5.3 | ||||||||||
| CBN-F532-BF** | 32 | 93 | 69 | 139 | 30 | 5.6 | ||||||||
| CBN-F540-BF** | 40 | 72 | 145 | 51 | 76 | 35 | 5.9 | |||||||
| CBN-F550-BF** | 50 | 76 | 153 | 25 | 6.3 | |||||||||
| CBN-F563-BF** | 63 | 81.5 | 164 | 6.8 | ||||||||||
Model |
Nominal pergeseran ((ml/r) Pompa depan Pompa belakang |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik Efisiensi (≥%) Pompa depan Pompa belakang |
L1 | L2 | L | Berat badan (kg) |
|||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
|||||||
| CBHY-G36/F3.5-ATφ* | 36/3.5 | 25/20 | 28/25 | 800 | 2500 | 3000 | 92/85 | 123 | 123 | 205 | 6.8 |
| CBHY-G36/F4.5-ATφ* | 36/4.5 | 92 - 90 | 208 | 7.0 | |||||||
| CBHY-G32/F3.5-ATφ* | 32/3.5 | 92/85 | 118 | 118 | 200 | 6.5 | |||||
| CBHY-G32/F4.5-ATφ* | 32/4.5 | 92 - 90 | 203 | 6.7 | |||||||
| CBHY-G30/F3.5-ATφ* | 30/3.5 | 92/85 | 116 | 116 | 198 | 6.1 | |||||
| CBHY-G30/F4.5-ATφ* | 30/4.5 | 92 - 90 | 201 | 6.4 | |||||||
| CBHY-G28/F3.5-ATφ* | 28/3.5 | 92/85 | 114 | 114 | 196 | 6.1 | |||||
| CBHY-G28/F4.5-ATφ* | 28/4.5 | 92 - 90 | 199 | 6.2 | |||||||
| CBHY-G25/F3.5-ATφ* | 25/3.5 | 92/85 | 110 | 110 | 192 | 5.8 | |||||
| CBHY-G25/F4.5-ATφ* | 25/4.5 | 92 - 90 | 195 | 5.9 | |||||||
