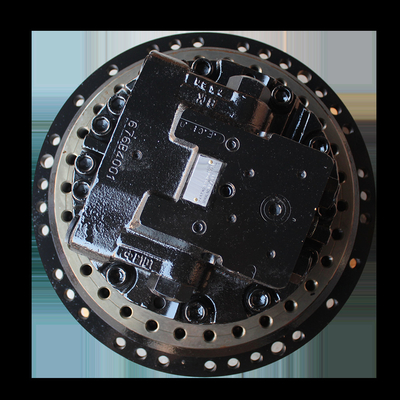

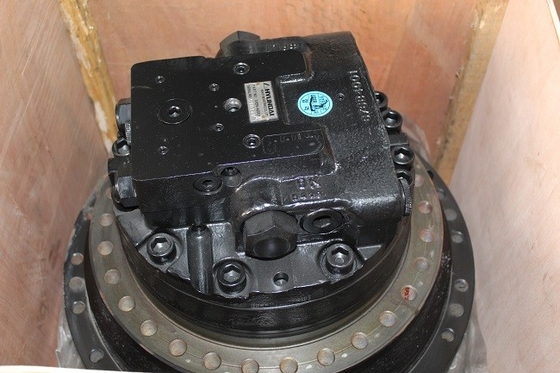

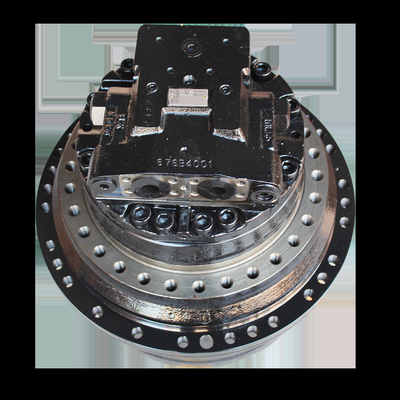

Belparts Excavator R210LC-7 R210LC-9 R235LCR-9 final drive assembly 31N6-40060 31Q6-40010 travel motor untuk Hyundai
Deskripsi Produksi
|
Merek
|
Belparts
|
|
Nama suku cadang
|
Excavator Travel Motor Assy
|
|
Model
|
R210LC-7 R210LC-9 R235LCR-9
|
|
Kualitas
|
Baru sekali
|
| Bagian no. | 31N6-40060 31Q6-40010 |
|
Jaminan
|
12 bulan
|
|
MOQ
|
1pcs
|
|
Ketentuan Pengiriman
|
Setelah pembayaran 3-7 hari
|
|
Ketentuan Pembayaran
|
L/C, T/T, Paypal, Alibaba Trade Assurance
|
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N6-40060 | ASSY MOTOR Perjalanan Lihat ILLUST |
1 | |
| * | 31N6-40060BG | ASSY MOTOR Perjalanan Lihat ILLUST |
1 | |
| *-1 | XKAH-01043 | Perangkat motor | 1 | |
| *-11 | XKAH-00891 | C/BLOCK & PISTON KIT | 1 | |
| 104 | XKAH-01044 | Blok-silinder | 2 | |
| 110 | XKAH-00407 | PEMANAS | 2 | |
| 114 | XKAH-00405 | RING-SNAP | 1 | |
| 145 | XKAH-00405 | RING-SNAP | 1 | |
| *-12 | XKAH-00893 | PISTON ASSY | 1 | |
| 105 | XKAH-01045 | Piston | 9 | |
| 106 | XKAH-00419 | Sepatu | 9 | |
| 151 | XKAH-00404 | Roller | 6 | |
| 107 | XKAH-00403 | PEMANGKAT PLAT | 1 | |
| 108 | XKAH-00402 | Ball-Thrust | 1 | |
| *-13 | XKAH-00895 | PISTON ASSY | 1 | |
| 161 | XKAH-00422 | Piston | 1 | |
| 162 | XKAH-00421 | Sepatu | 1 | |
| 163 | XKAH-00094 | SPRING-2 Kecepatan | 1 | |
| 102 | XKAH-00410 | SHAFT-MAIN | 1 | |
| 103 | XKAH-01046 | Plat-Swash | 1 | |
| 109 | XKAH-00897 | PELAT-TIMING | 1 | |
| 115 | XKAH-00399 | FRIKSI PLATE | 3 | |
| 116 | XKAH-00401 | PEMATING PLATE | 4 | |
| 112 | XKAH-00898 | PEMARKASAN PISTON | 1 | |
| 113 | XKAH-00397 | SPRING | 9 | |
| 132 | XKAH-00388 | OIL SEAL | 1 | |
| 149 | XKAH-00899 | Ball-Bearing | 1 | |
| 150 | XKAH-00900 | Ball-Bearing | 1 | |
| 139 | XKAH-00396 | O-RING | 1 | |
| 178 | XKAH-00395 | O-RING | 1 | |
| 181 | XKAH-00377 | PIN-PARALEL | 2 | |
| 167 | XKAH-00095 | PIVOT | 2 | |
| 168 | XKAH-00034 | PIN-PARALEL | 2 | |
| *-21 | XKAH-01065 | Klep RELIEF ASSY | 1 | |
| 301 | XKAH-01066 | SEAT | 1 | |
| 302 | XKAH-01064 | Plunger | 1 | |
| 303 | XKAH-01063 | ROD | 1 | |
| 304 | XKAH-00668 | Piston | 1 | |
| 305 | XKAH-00670 | Badan | 1 | |
| 306 | XKAH-01062 | PLUG | 1 | |
| 307 | XKAH-00671 | SPRING | 1 | |
| 308 | XKAH-00669 | SHIM | 1 | |
| 309 | XKAH-00035 | O-RING | 1 | |
| 310 | XKAH-00035 | O-RING | 1 | |
| 311 | XKAH-00665 | RING-BACK UP | 1 | |
| *-3 | XKAH-01035 | Bagian Belakang | 1 | |
| *-31 | XKAH-01036 | KIT FLANGE BACK | 1 | |
| 201 | XKAH-01037 | Flang belakang | 1 | |
| 223 | XKAH-01038 | SPOOL utama | 1 | |
| *-32 | XKAH-00874 | Stopper ASSY | 2 | |
| 294 | XKAH-00875 | Stopper-A | 1 | |
| 298 | XKAH-00876 | Stopper-B | 1 | |
| 295 | XKAH-01052 | SPOOL | 1 | |
| 296 | XKAH-01040 | SPRING | 1 | |
| 224 | XKAH-00328 | STOPPER | 2 | |
| 228 | XKAH-00045 | SPRING | 2 | |
| 279 | XKAH-00047 | O-RING | 2 | |
| 226 | XKAH-00043 | PLUG | 2 | |
| 227 | XKAH-00879 | VALVE-CHECK | 2 | |
| 230 | XKAH-00046 | SPRING | 2 | |
| 234 | XKAH-00048 | O-RING | 2 | |
| 221 | XKAH-00032 | PLUG-RO | 1 | |
| 238 | XKAH-00035 | O-RING | 1 | |
| 252 | XKAH-00327 | PLUG-PT | 4 | |
| 244 | XKAH-00880 | PLUG | 5 | |
| 268 | XKAH-00056 | Baja bola | 2 | |
| 242 | XKAH-00411 | VALVE | 1 | |
| 272 | XKAH-00462 | VALVEL SEAT | 1 | |
| 276 | XKAH-00382 | RING | 1 | |
| 275 | XKAH-00383 | SPRING | 1 | |
| 218 | XKAH-00881 | VALVEL SEAT | 1 | |
| 219 | XKAH-00392 | VALVE | 1 | |
| 220 | XKAH-00391 | SPRING | 1 | |
| 222 | XKAH-00390 | RING ((untuk T-TYPE) | 1 | |
| 233 | XKAH-00389 | O-RING | 1 | |
| 263 | XKAH-01039 | VALVE-dua kecepatan | 1 | |
| 264 | XKAH-01041 | PLUG RO | 1 | |
| 265 | XKAH-00052 | O-RING | 1 | |
| 266 | XKAH-00384 | SPRING ((TWO SPEED) | 1 | |
| 241 | XKAH-00065 | PIN-PARALEL | 2 | |
| 282 | XKAH-00066 | BOLT-SOCKET | 9 | |
| 297 | XKAH-00885 | Oriffice | 1 | |
| 199 | XKAH-01042 | NAME PLATE (Plat Nama) | 1 | |
| 200 | XKAH-00116 | PELUANG-PELUANG | 2 | |
| K | XKAH-01054 | SEAL KIT Lihat ILLUST |
1 |
Keuntungan:
A. Sejarah panjang, tim profesional. ((Lebih dari 10 tahun pengalaman di lini pasar. Kami cukup profesional untuk menyediakan produk berkualitas tinggi, solusi dan layanan)
B. suku cadang excavator dalam skala penuh tersedia di stok
C. Pemesanan kecil diperbolehkan
D. Pengiriman tepat waktu (respon cepat dalam waktu 24 jam)
E. Kami mendukung permintaan paket yang dibuat khusus
F. Umpan balik pelanggan yang positif dari pasar luar negeri
G. Layanan purna jual yang sangat baik
