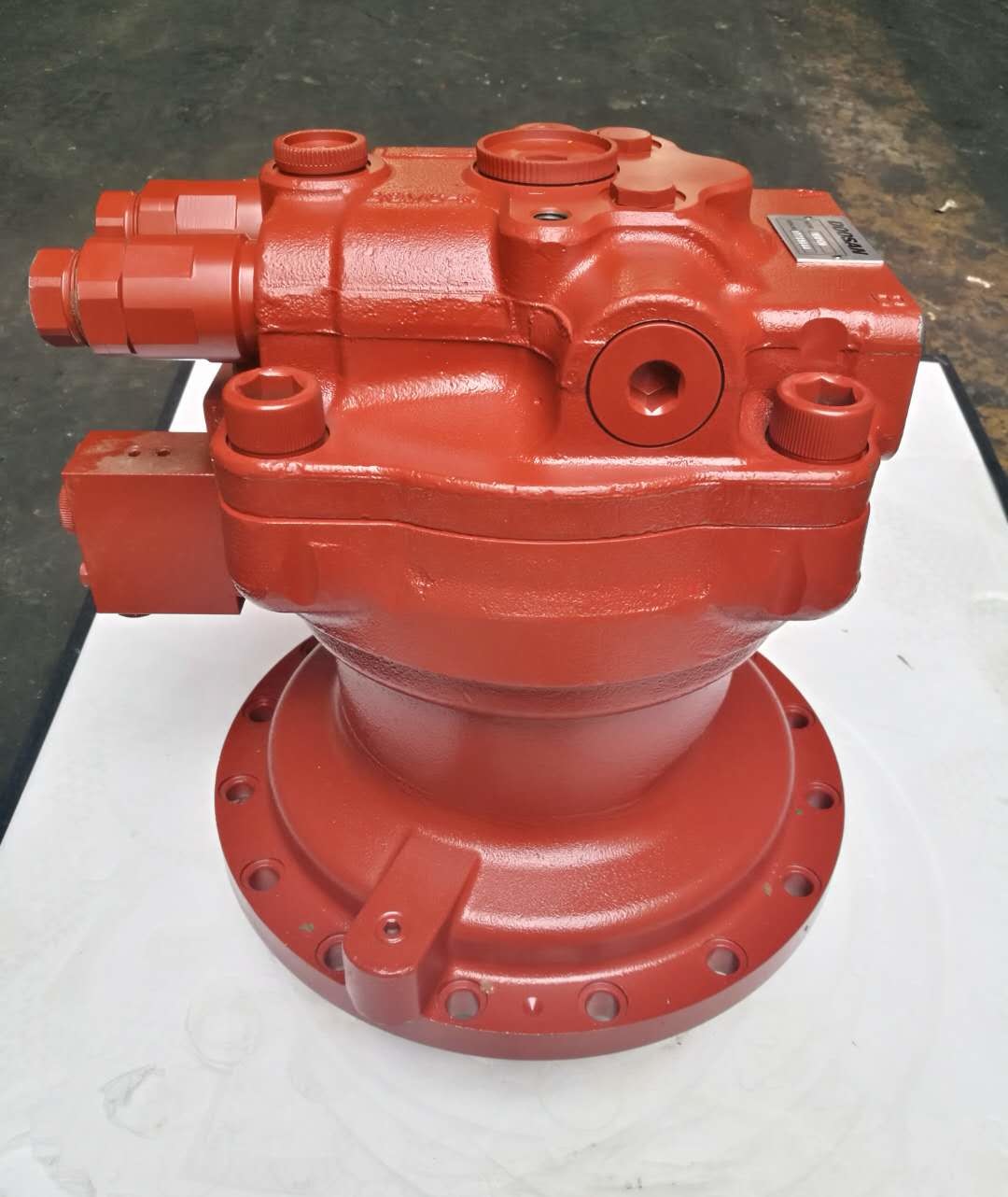

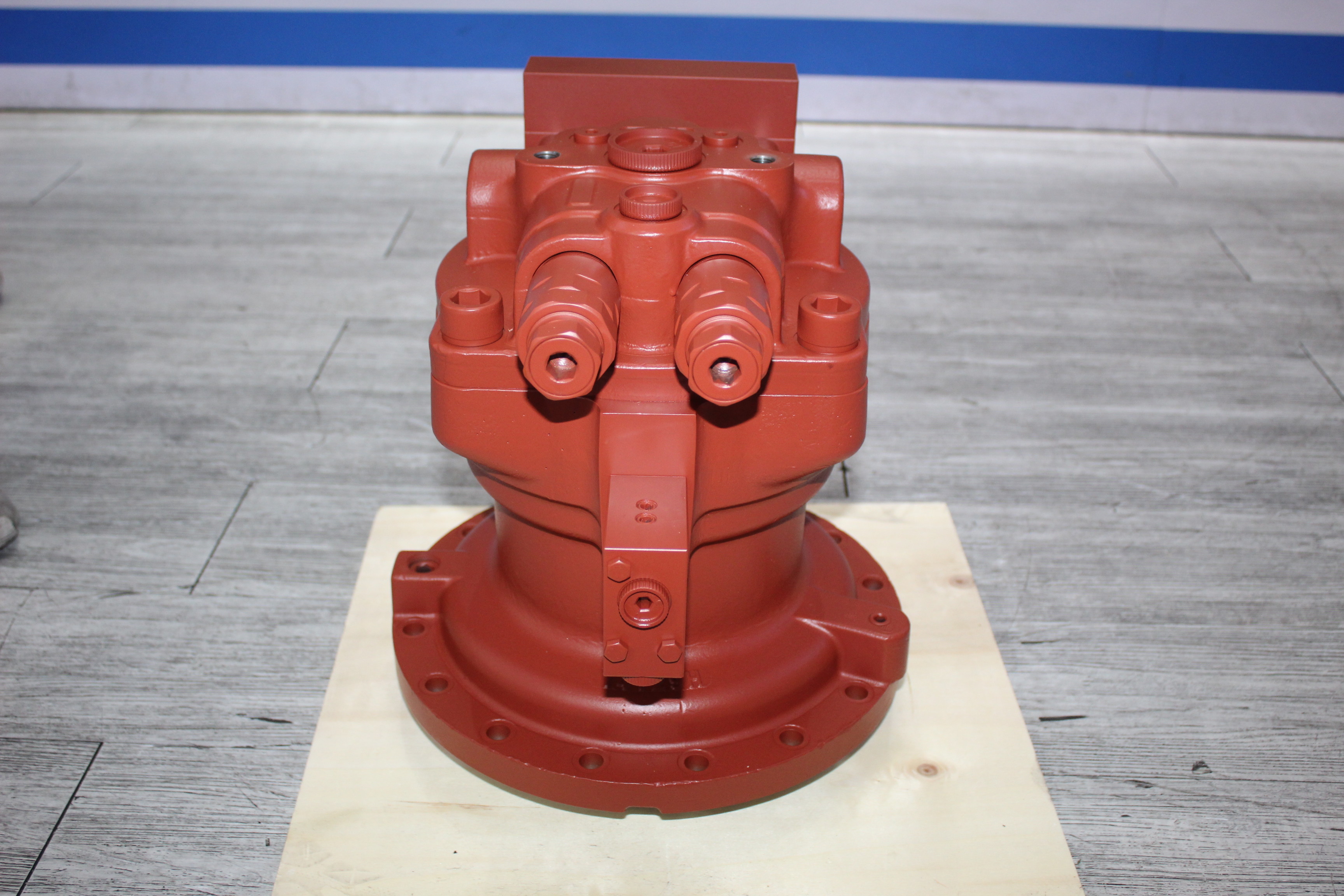

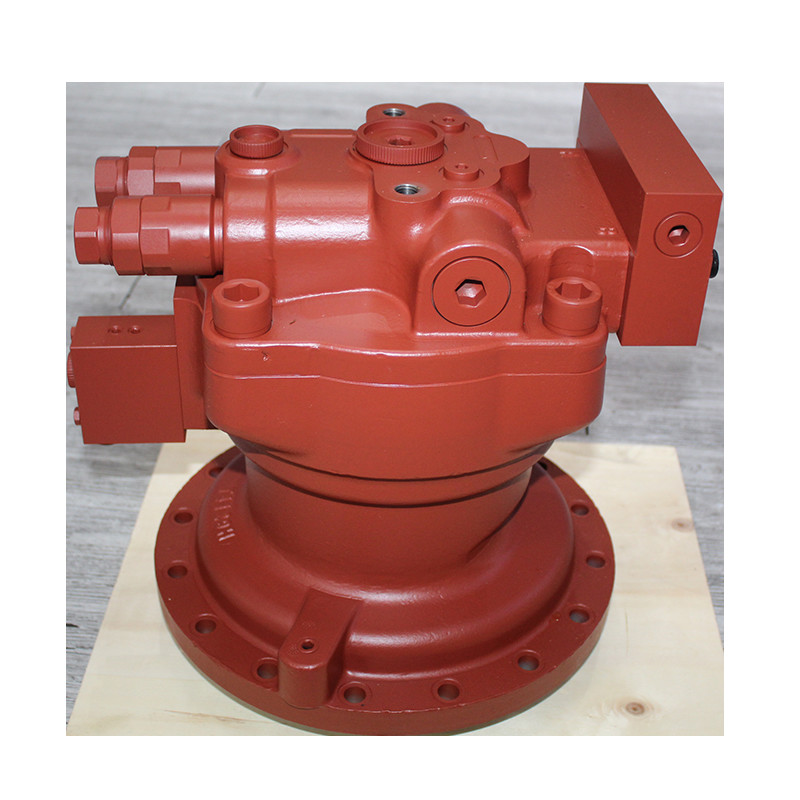

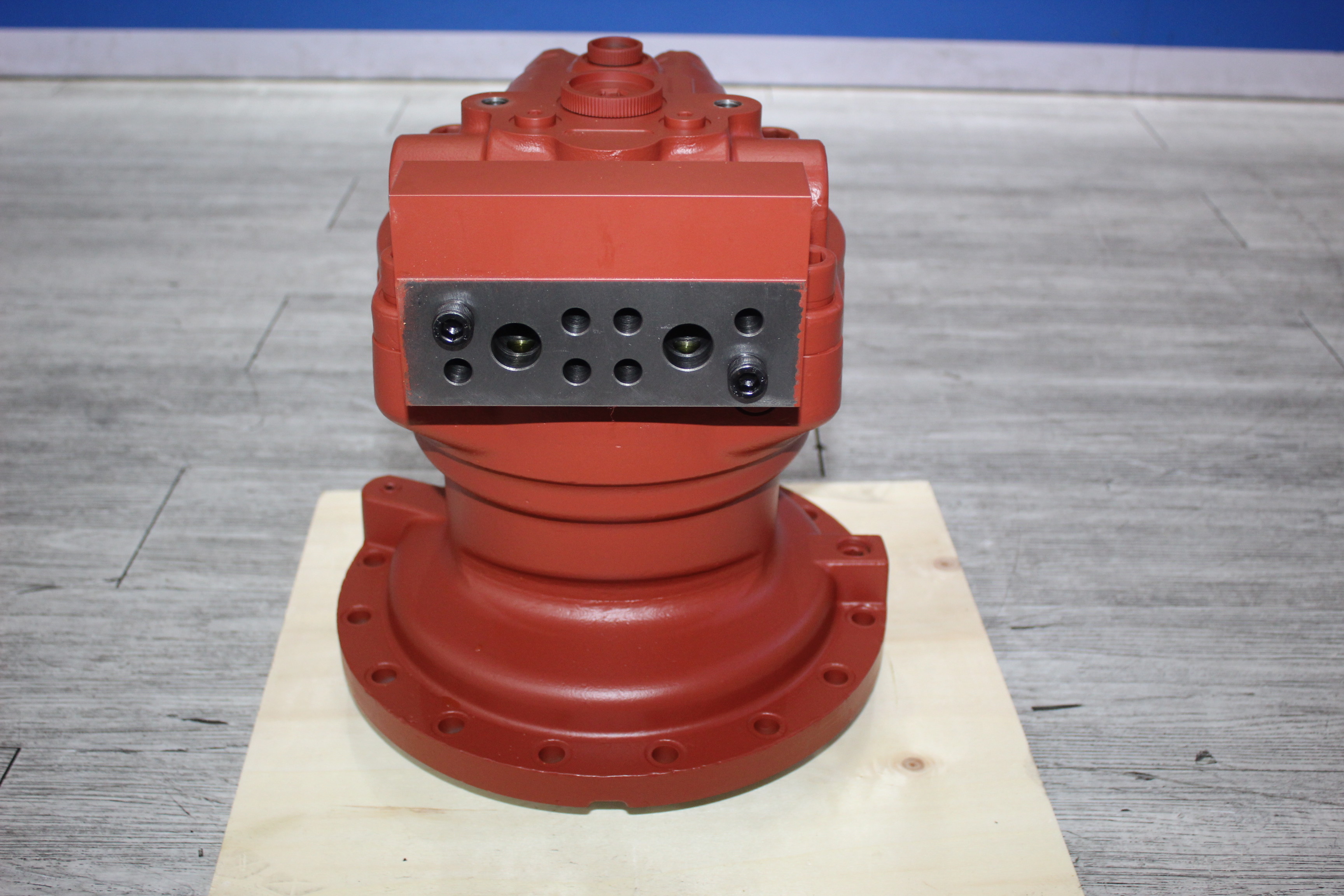

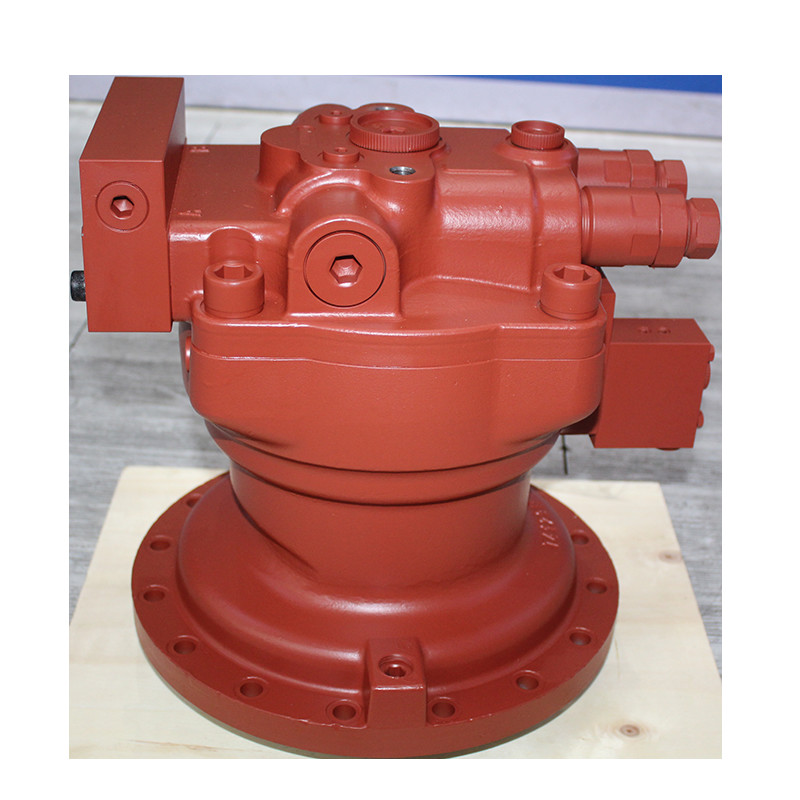

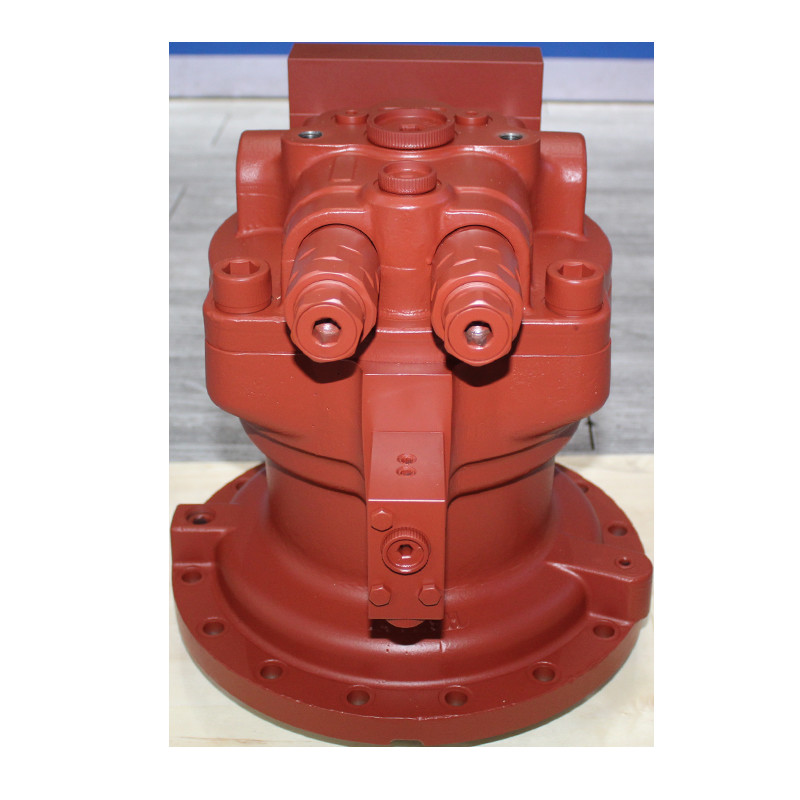

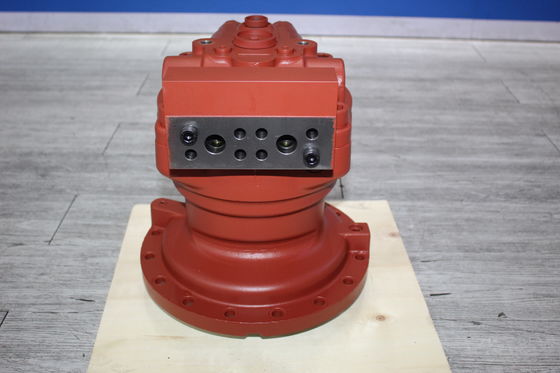

Mesin Excavator Belparts DX225LCA K1000697A K9001903 Perangkat Motor Ayunan
| # | Bagian No | Bagian nama | Komentar | jumlah | Permintaan harga |
|---|---|---|---|---|---|
| 107 | 1.420-00111 | KATUP, KELUARGA | 1 kg | 2 | |
| 108 | S6005050 | BANTALAN, BOLA | 1 | ||
| 109 | S2227561 | BOLT, KEPALA SOCKET HEX | 4 | ||
| 110 | 2181-1950D1 | colokkan, CEK ULANG | 2 | ||
| 111 | S8000111 | O-RING | 1BP11 | 2 | |
| 112 | K9001842 | O-RING | 1 | ||
| 113 | S5741162 | PIN, Musim Semi | D8X16L | 2 | |
| 201 | K9001843 | SHAFT, MENGEMUDI | 3 kg | 1 | |
| 202 | K9001844 | PIRING, SWASH | 3 kg | 1 | |
| 203 | K9001845 | PISTON & SHOE ASS`Y | 1 SET | ||
| 205 | K9001846 | BLOK, SILINDER | 5 kg | 1 | |
| 206 | 1.148-00015 | BOLA, DORONG | 1 | ||
| 207 | 1.412-00092 | PELAT, PELANGGA | 1 | ||
| 208 | 1.114-00009 | kerah, mesin cuci | 1 | ||
| 209 | 1.109-00134 | BEARING, ROLLER | 5 | ||
| 210 | 1.114-00286 | MESIN CUCI | 2 | ||
| 211 | 1.131-00048 | MUSIM SEMI | 1 | ||
| 212 | S6510620 | CINCIN, PENYIMPANAN | 1 | ||
| 213 | K9001847 | PIRING, WAKTU | 1 kg | 1 | |
| 301 | K9001848 | SELUBUNG | 22 kg | 1 | |
| 302 | 180-00219 | SEGEL, MINYAK | 1 | ||
| 303 | S6005090 | BANTALAN, BOLA | 1 kg | 1 | |
| 304 | 1.123-00053 | PIN, PARALEL | 1 | ||
| 305 | 352-00014 | PIRING SEPARATOR (S/M) | 3 | ||
| 306 | 412-00013 | PIRING, GESERAN | 2 | ||
| 307 | 180-00220 | O-RING | 1 | ||
| 308 | 180-00221 | O-RING | 1 | ||
| 309 | 452-00020 | PISTON, REM | 3 kg | 1 | |
| 310 | 129-00062 | musim semi, rem | 18 | ||
| 311 | 181-00346 | PLUG, PT | 1 | ||
| 312 | 2181-1116D2 | colokkan, CEK ULANG | 1 | ||
| 313 | 2181-1950D1 | colokkan, CEK ULANG | 1 | ||
| 314 | S8000111 | O-RING | 1BP11 | 1 | |
| 400 | 420-00110 | KATUP, REM | 1 kg | 1 | |
| * | K9001903 | SEAL KIT, SWING MOTOR | 1 | ||
| - | K1000697A | MOTOR, ayun | 64 kg | 1 | |
| 101 | *NA00351 | KASING, KATUP | 1 | ||
| 102 | 2.121-00009 | STEKER | 2 | ||
| 103 | K9001840 | MUSIM SEMI | 2 | ||
| 104 | K9001841 | PENYELAM | 2 | ||
| 105 | 1.420-00016 | KATUP, SWING TANPA REAKSI | 1 kg | 1 | |
| 106 | S8000341 | O-RING | E630761 | 2 |
DX225LC (DTC); DX180LC; DX225LC (MESIN DL06); DX225LC; DX225LCA; DX180LC; DX225NLC; DX225LC; DX220LC (DTC);
| Model | Bagian simpul |
|---|---|
| DX225NLC | BAGIAN HIDROLIK /MOTOR ayun |
| DX225LL | BAGIAN HIDROLIK /MOTOR ayun |
| DX225LC (MESIN DL06) | BAGIAN HIDROLIK /MOTOR ayun |
| DX225LCA | BAGIAN HIDROLIK /MOTOR ayun |
| DX190W | BAGIAN HIDROLIK /MOTOR ayun |
| DX210W | BAGIAN HIDROLIK /MOTOR ayun |
| DX180LC | BAGIAN HIDROLIK /MOTOR ayun |
| DX225LC (DTC) | BAGIAN HIDROLIK /MOTOR ayun |
| DX180LC | BAGIAN HIDROLIK /MOTOR ayun |
| DX225LC | BAGIAN HIDROLIK /MOTOR ayun |
| DX225LC | BAGIAN HIDROLIK /MOTOR ayun |
| TXC180LC-2 | BAGIAN HIDROLIK /MOTOR ayun |
| TXC225LC-2 | BAGIAN HIDROLIK /MOTOR ayun |
