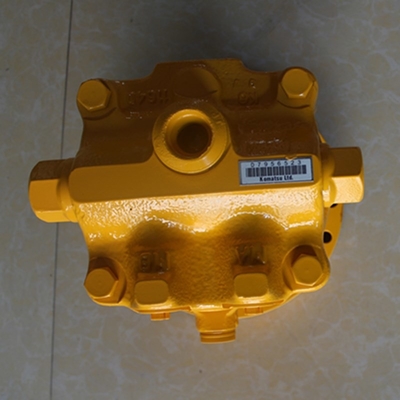

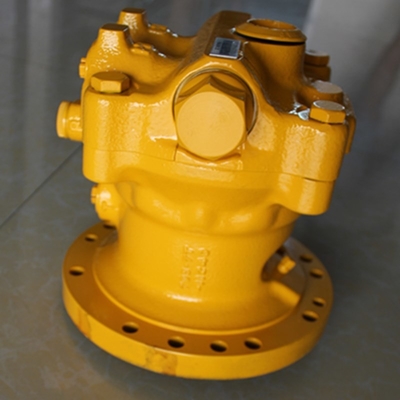

Ekskavator Slewing Motor pc40 pc60-7 Swing Motor Assy 708-7T-00470 bekas
Aplikasi: Ekskavator
Nama bagian: motor ayun
Bahan: Baja
Model: pc40 pc60-7
Nomor bagian:708-7T-00470
Jangka waktu pembayaran: 37*36*52
Pengiriman: 56KG
Merek: Belparts
| Penerapan | Penggali |
| Bagian nama | motor ayun |
| Bahan | Baja |
| Model | pc40 pc60-7 |
| Nomor bagian | 708-7T-00470 |
| Jangka waktu pembayaran | 37*36*52 |
| Pengiriman | 56KG |
| Merek | Belpart |
| # | Bagian No | Bagian nama | Jumlah. | Permintaan harga |
| 1 | 708-7T-00470 | MOTOR ASS'Y | 1 | |
| 1 | 708-7T-00360 | MOTOR ASS'Y | 1 | |
| 1 | 708-7T-00240 | MOTOR ASS'Y | 1 | |

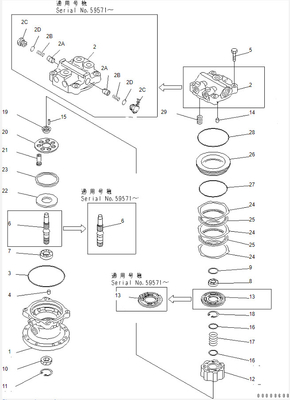

| RAKITAN INI TERDIRI DARI SELURUH BAGIAN YANG DITAMPILKAN DALAM Gbr.Y1640-01A0 SAMPAI Y1640-02A0A | ||||
| 1 | 708-7T-01210 | SUB MOTOR ASS'Y | 1 | |
| 1 | 708-7T-01040 | SUB MOTOR ASS'Y | 1 | |
| 1 | (*708-7T-11240) | KASUS, MOTOR | 1 | |
| 2 | (*708-7T-11670) | PENUTUP, AKHIR | 1 | |
| 2 | (*708-7T-11640) | PENUTUP, AKHIR | 1 | |
| 2A | 706-73-72420 | Bos | 2 | |
| 2B | 706-73-72440 | Musim semi | 2 | |
| 2C | 706-73-72430 | Steker | 2 | |
| 2D | 07002-12434 | O-RING,(UNTUK LAMPIRAN 2 AKTUAT) | 2 | |
| 3 | (*708-7T-51210) | Cincin-O | 1 | |
| 4 | (*720-68-19610) | PIN, PAK | 2 | |
| 5 | (*01010-81250) | Baut | 4 | |
| 6 | (*708-7T-12420) | Batang | 1 | |
| 6 | (*708-7T-12220) | Batang | 1 | |
| 7 | (*708-7T-12240) | Bantalan | 1 | |
| 8 | (*708-7T-12250) | Bantalan | 1 | |
| 9 | (*708-7T-05020) | KIT pengatur jarak | 1 | |
| 9 | pengatur jarak?1.6MM | 1 | ||
| 9 | pengatur jarak?1.7 MM | 1 | ||
| 9 | pengatur jarak?1.8MM | 1 | ||
| 9 | pengatur jarak?1.9 MM | 1 | ||
| 9 | pengatur jarak?2.0 MM | 1 | ||
| 9 | pengatur jarak?2.1 MM | 1 | ||
| 9 | pengatur jarak?2.2MM | 1 | ||
| 10 | 708-7T-12230 | GASKET, SEGEL | 1 | |
| 11 | 04065-04518 | CINCIN,Jepret (ITL) | 1 | |
| 12 | (*708-7T-13140) | BLOK, SILINDER | 1 | |
| 13 | (*708-7T-13290) | PELAT, KATUP | 1 | |
| 13 | (*708-7T-13261) | PELAT, KATUP | 1 | |
| 14 | (*720-68-19610) | PIN, PAK | 1 | |
| 15 | (*708-7T-13540) | Pin | 3 | |
| 16 | (*708-7T-13530) | Mesin cuci | 2 | |
| 17 | (*708-7T-13570) | Musim semi | 1 | |
| 18 | (*04065-03815) | CINCIN, JENIS | 1 | |
| 19 | (*708-7T-13510) | PANDUAN, PENJAGA | 1 | |
| 20 | (*708-7T-13342) | PENYEDIA, PENYEDIA | 1 | |
| 21 | (*708-7T-13352) | PISTON SUB ASS'Y | 7 | |
| 21 | (*708-7T-13611) | PISTON SUB ASS'Y | 7 | |
| 22 | (*708-7T-53420) | PIRING, DORONG | 1 | |
| 22 | (*708-7T-13421) | PELAT DORONG | 1 | |
| 23 | (*708-7T-13710) | pengatur jarak | 1 | |
| 24 | (*708-7T-52512) | Piring | 3 |
