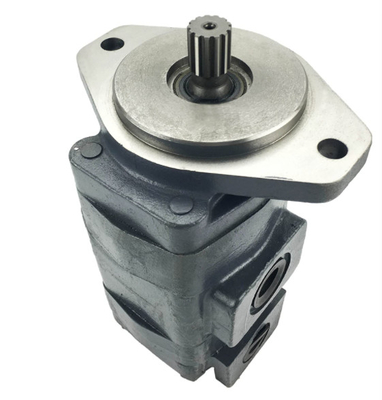

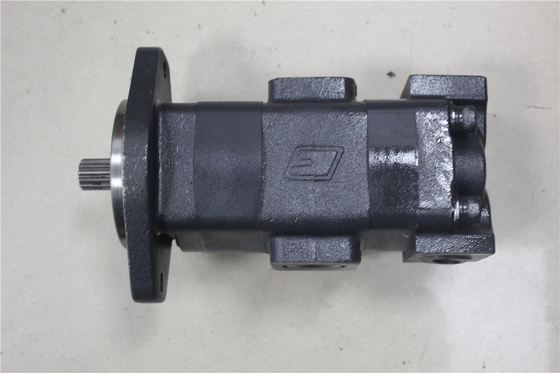

Belparts excavator pompa gir hidraulik EC360C L EC330C L EC360B LC EC330B LC pemompa pilot kumpulan VOE 14530502
Nama merek:Belparts
Nama:Hydraulic Gear Pump
Model:EC360C L EC330C L EC360B LC EC330B LC
Bahan: Baja
Warna: Perak
Nama Bagian:Pilot Pump
Nomor bagian:VOE 14530502
| Nama merek | Belparts |
| Model | EC360C L EC330C L EC360B |
| Nama | Pompa Girang Hidraulik |
| Bahan | Baja |
| Warna | Perak |
| Nama Bagian | Pompa Pilot |
| Nomor bagian | VOE 14530502 |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 8280233 | ||||
| VOE 14530502 | Pompa Gir | 1 | ||
| 1 | VOE 14536185 | Tutup | 1 | |
| 2 | VOE 14536187 | Peralatan | 1 | |
| 3 | VOE 14536190 | Tutup | 1 | |
| 4 | VOE 14536192 | Pengangkut | 1 | |
| 5 | VOE 14536195 | Perumahan | 1 | |
| 6 | VOE 14536197 | Piring | 4 | |
| 7 | VOE 14536204 | Selang | 1 | |
| 8 | VOE 14539006 | Perumahan | 1 | |
| 9 | VOE 14539657 | Peralatan | 1 | |
| 10 | VOE 14536202 | Pin | 8 | |
| 11 | VOE 14536201 | Segel | 1 | |
| 12 | VOE 14536196 | Segel | 4 | |
| 13 | VOE 14536198 | Segel | 4 | |
| 14 | VOE 14536200 | Segel | 4 | |
| 15 | VOE 14539658 | Bolt | 4 | |
| 16 | VOE 14536203 | Mesin cuci | 4 | |
| 17 | VOE 14539659 | Kacang | 4 | |
| 100 | VOE 14536208 | Kit penyegelan | 1 |
