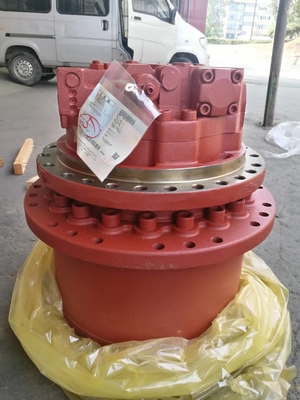

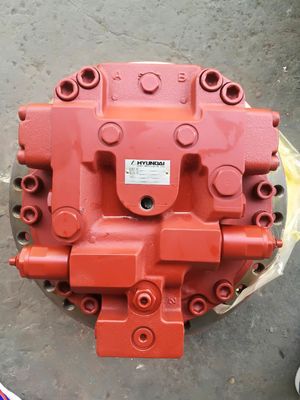

Belparts Excavator R360LC-7 R360LC-7A R360LC-9 final drive assembly 31NA-40010 31NA-40020 31QA-40020 travel motor
Deskripsi Produksi
|
Merek
|
Belparts
|
|
Nama suku cadang
|
Excavator Travel Motor Assy
|
|
Model
|
R360LC-7 R360LC-7A
|
|
Kualitas
|
Baru sekali
|
| Bagian no. | 31NA-40010 31NA-40020 |
|
Jaminan
|
12 bulan
|
|
MOQ
|
1pcs
|
|
Ketentuan Pengiriman
|
Setelah pembayaran 3-7 hari
|
|
Ketentuan Pembayaran
|
L/C, T/T, Paypal, Alibaba Trade Assurance
|

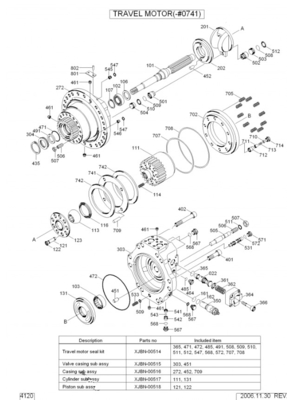

| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31NA-40010 | MOTOR perjalanan *-1,*-2 |
1 | |
| *-1 | XJBN-00519 | Unit Motor Perjalanan | 1 | |
| 022 | XJBN-00513 | SPOOL-C/BALANCE | 1 | |
| 101 | XJBN-00512 | SHAFT-DRIVE | 1 | |
| 102 | XJBN-00511 | Berkas-Roller | 1 | |
| 103 | XJBN-00510 | Jaring bantalan | 1 | |
| 106 | XJBN-00509 | SPACE-LAYER | 1 | |
| 107 | XJBN-00600 | RING-SNAP | 1 | |
| S111 | XJBN-00507 | Blok-silinder | 1 | |
| 113 | XJBN-00506 | BUSHING-SFERIK | 1 | |
| 114 | XJBN-00022 | SPRING-CYLINDER | 9 | |
| 116 | XJBN-00368 | SPACER | 1 | |
| NS121 | XJBN-00504 | Piston | 9 | |
| NS122 | XJBN-00503 | Sepatu | 9 | |
| 123 | XJBN-00020 | PLATE-SET | 1 | |
| NS131 | XJBN-00638 | Plak-Valve | 1 | |
| 161 | XJBN-00403 | O-RING | 2 | |
| 162 | XJBN-00397 | RING-BACK UP | 2 | |
| 201 | XJBN-00502 | Plat-Swash | 1 | |
| 202 | XJBN-00501 | Dukungan | 1 | |
| S272 | XJBN-00500 | KASING | 1 | |
| S303 | XJBN-00499 | CASE-VALVE | 1 | |
| 304 | XJBN-00498 | COVER-SEAL | 1 | |
| 350 | XJBN-00497 | VALVE-RELIEF | 2 | |
| 361 | XJBN-00496 | PEMANAS | 2 | |
| 362 | XJBN-00495 | SPRING-C/BALANCE | 2 | |
| 364 | XJBN-00494 | COVER-C/BALANCE | 2 | |
| K365 | XJBN-00493 | O-RING | 2 | |
| 366 | XJBN-00492 | BOLT-SOCKET | 8 | |
| 401 | XJBN-00491 | BOLT-SOCKET | 8 | |
| 402 | XJBN-00490 | BOLT-SOCKET | 4 | |
| 435 | XJBN-00489 | RING-SNAP | 1 | |
| S451 | XJBN-00053 | PIN-2 | 1 | |
| S452 | XJBN-00488 | PIN-1 | 2 | |
| 461 | XJBN-00032 | PLUG | 10 | |
| 464 | XJBN-00409 | PLUG | 4 | |
| K471 | XJBN-00286 | O-RING | 1 | |
| K472 | XJBN-00486 | O-RING | 1 | |
| K485 | XJBN-00097 | O-RING | 4 | |
| K491 | XJBN-00485 | SEAL-OIL | 1 | |
| 501 | XJBN-00484 | Piston-Tilting | 1 | |
| 502 | XJBN-00483 | Piston-Tilting | 1 | |
| 503 | XJBN-00482 | STOPPER | 1 | |
| 504 | XJBN-00481 | Stopper-S | 1 | |
| 505 | XJBN-00480 | PEMALUKAN ROD | 1 | |
| 506 | XJBN-00479 | PELUANG | 2 | |
| 507 | XJBN-00478 | NUT | 2 | |
| K508 | XJBN-00477 | O-RING | 1 | |
| K509 | XJBN-00283 | O-RING | 2 | |
| K510 | XJBN-00398 | RING-BACK UP | 1 | |
| K511 | XJBN-00475 | O-RING | 1 | |
| K512 | XJBN-00474 | RING-BACK UP | 1 | |
| 531 | XJBN-00473 | PEMALUKAN SPOOL | 1 | |
| 533 | XJBN-00472 | PEMALUKAN SPRING | 1 | |
| 541 | XJBN-00471 | SEAT | 2 | |
| 542 | XJBN-00470 | STOPPER | 2 | |
| 543 | XJBN-00359 | Baja bola | 2 | |
| 545 | XJBN-00469 | Oriffice | 1 | |
| 546 | XJBN-00468 | Oriffice | 2 | |
| K547 | XJBN-00231 | O-RING | 3 | |
| 567 | XJBN-00356 | PLUG | 7 | |
| K568 | XJBN-00362 | O-RING | 7 | |
| 571 | XJBN-00639 | PLUG | 1 | |
| K572 | XJBN-00233 | O-RING | 1 | |
| 702 | XJBN-00640 | PISTON-BRAKE | 1 | |
| 705 | XJBN-00466 | Penghentian SPRING | 10 | |
| K707 | XJBN-00465 | RING 252-PISTON | 1 | |
| K708 | XJBN-00464 | RING 278-PISTON | 1 | |
| S709 | XJBN-00463 | PIN-CENTER | 4 | |
| 710 | XJBN-00462 | PEMANDUAN | 1 | |
| 711 | XJBN-00641 | SPOOL | 1 | |
| 712 | XJBN-00460 | BUSHING | 1 | |
| 713 | XJBN-00459 | SPRING | 1 | |
| 714 | XJBN-00458 | PLUG | 1 | |
| 741 | XJBN-00457 | PEMISAH PLATE | 1 | |
| 742 | XJBN-00456 | FRIKSI PLATE | 2 | |
| 801 | XJBN-00156 | NAME PLATE (Plat Nama) | 1 | |
| 802 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4130 |
1 | |
| K | XJBN-00514 | SEAL KIT Lihat ILLUST |
1 | |
| 011 | XJBN-00515 | Sub ASSY dari KASING KALP Lihat ILLUST |
1 | |
| 012 | XJBN-00516 | Casing Sub ASSY Lihat ILLUST |
1 | |
| 013 | XJBN-00517 | Sub ASSY silinder Lihat ILLUST |
1 | |
| 014 | XJBN-00518 | Piston Sub ASSY Lihat ILLUST |
9 |
Model |
Nominal pergeseran ((ml/r) Pompa depan Pompa belakang |
Tekanan ((MPa) | Kecepatan ((r/menit) |  Volumetrik Efisiensi (≥%) Pompa depan Pompa belakang |
L1 | L2 | L | Berat badan (kg) |
|||
Berkualitas |
Maksimal |
Optimum kecepatan |
Jangkauan kecepatan |
||||||||
| CBSL-G25/G19-AF* | 25/19 | 25/25 | 27.5/27.5 | 1500-2500 | 800-3000 | 92/92 | 68.5 | 154.5 | 217 | 11.5 | |
| CBSL-G25/G23-AF* | 25/23 | 156.5 | 219 | 11.8 | |||||||
| CBSL-G25/G25-AF* | 25/25 | 157.5 | 220 | 12.1 | |||||||
| CBSL-G28/G28-AF* | 28/28 | 70.3 | 162.8 | 230 | 12.4 | ||||||
| CBSL-G33/G19-AF* | 33/19 | 73 | 163.5 | 226 | 12.1 | ||||||
| CBSL-G33/G23-AF* | 33/23 | 165.5 | 230 | 12.4 | |||||||
| CBSL-G38/G19-AF* | 38/19 | 20/25 | 25/27.5 | 77.8 | 173 | 235 | 12.8 | ||||
Keuntungan:
A. Sejarah panjang, tim profesional. ((Lebih dari 10 tahun pengalaman di lini pasar. Kami cukup profesional untuk menyediakan produk berkualitas tinggi, solusi dan layanan)
B. suku cadang excavator dalam skala penuh tersedia di stok
C. Pemesanan kecil diperbolehkan
D. Pengiriman tepat waktu (respon cepat dalam waktu 24 jam)
E. Kami mendukung permintaan paket yang dibuat khusus
F. Umpan balik pelanggan yang positif dari pasar luar negeri
G. Layanan purna jual yang sangat baik
