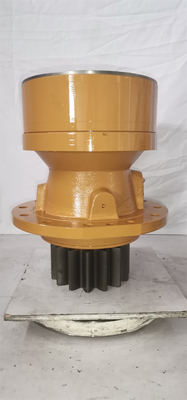

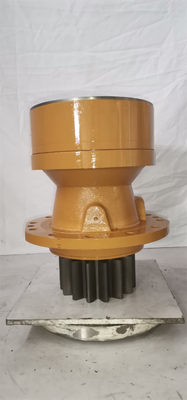

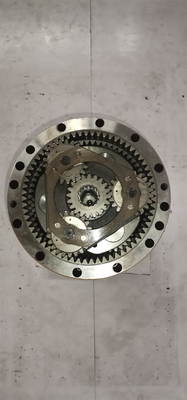

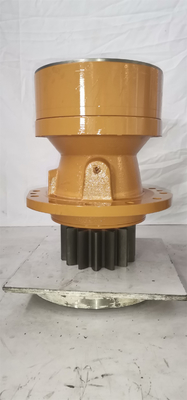

Mini excavator swing gearbox R450LC-7 39QB-42100 swing reduction gearbox XJDB-00357 untuk Hyundai
Deskripsi Produk
| Kemasan | 43*43*71 |
| Bagian nama | Kepala silinder |
| Model mesin | R450LC-7 |
| Bahan | Baja paduan |
| Bobot | 252 KG |
| Merek | Hyundai |
| Nomor bagian | 39QB-42100 |

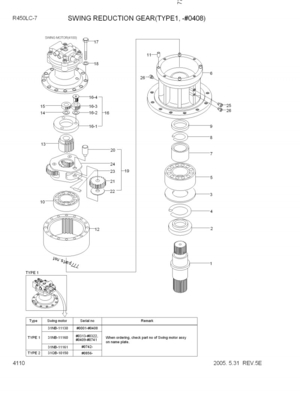

| # | Bagian No | Bagian nama | jumlah | Permintaan harga |
|---|---|---|---|---|
| * | @ | PIPA INJEKSI BAHAN BAKAR & NOZZLE LIHAT 4100 |
1 | |
| *-2 | XJDB-00357 | GIGI PENGURANGAN SWING | 1 | |
| 1 | XJDB-00228 | BATANG | 1 | |
| 2 | XJDB-00229 | KERAH | 1 | |
| 3 | XJDB-00230 | PIRING | 1 | |
| 4 | XJDB-00231 | RING-SNAP | 1 | |
| 5 | XJDB-00232 | BEARING-ROLLER | 1 | |
| 6 | XJDB-00233 | KASUS-GEAR | 1 | |
| 7 | XJDB-00234 | KERAH | 1 | |
| 8 | XJDB-00235 | RING-SNAP | 1 | |
| 9 | XJDB-00236 | SEAL-OIL | 1 | |
| 10 | XJDB-00237 | BEARING-ROLLER | 1 | |
| 11 | XJDB-00186 | PIN-PARALEL | 4 | |
| 12 | XJDB-00238 | GIGI-RING | 1 | |
| 13 | XJDB-00239 | GEAR-SPUR 4 | 1 | |
| 14 | XJDB-00240 | PLAT-DORONG | 1 | |
| 15 | XJDB-00241 | GEAR-SUN | 1 | |
| 16 | XJDB-00242 | PEMEGANG ASSY 1 | 1 | |
| N16-1 | XJDB-00252 | PEMEGANG 1 | 1 | |
| N16-2 | XJDB-00253 | PLAT-DORONG | 3 | |
| N16-3 | XJDB-00254 | PERLENGKAPAN 2 | 3 | |
| N16-4 | XJDB-00255 | poros 1 | 3 | |
| 17 | XJDB-00243 | BAUT | 16 | |
| 18 | XJDB-00244 | WASHER-SPRING | 16 | |
| 19 | XJDB-00251 | PEMEGANG ASSY 2 | 1 | |
| N20 | XJDB-00246 | SHAFT 2AS | 3 | |
| N21 | XJDB-00247 | GEAR-SPUR 5 | 3 | |
| N22 | XJDB-00248 | PIRING 2-DORONG | 3 | |
| N23 | XJDB-00249 | PIN-SPRING | 3 | |
| N24 | XJDB-00250 | PEMEGANG 2 | 1 | |
| 25 | XJDB-00219 | STEKER | 1 | |
| 26 | XJDB-00220 | STEKER | 2 | |
| N | @ | PIPA INJEKSI BAHAN BAKAR & NOZZLE | 1 |
