| MOQ: | 1 BUAH |
| harga: | Negotiable Price |
| kemasan standar: | Paket Pengiriman Standar |
| Periode pengiriman: | 2-3 hari |
| metode pembayaran: | L/C, T/T, Paypal, Perdagangan Jaminan |
| Kapasitas Pasokan: | 1000 buah/bulan |

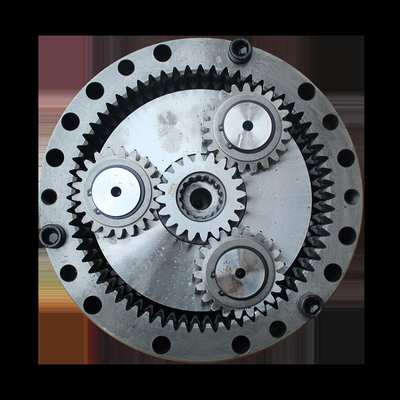

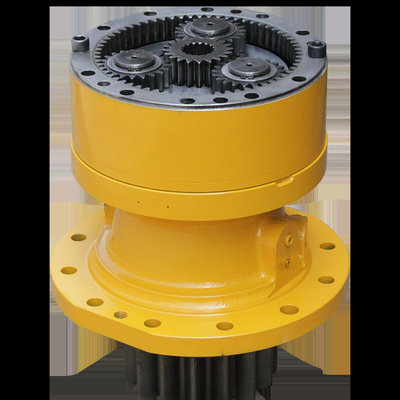

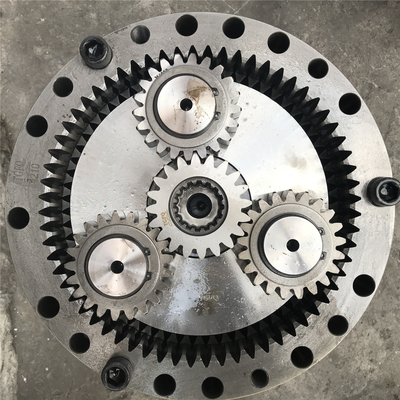

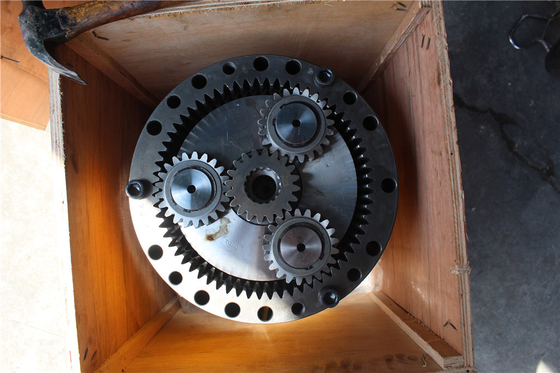

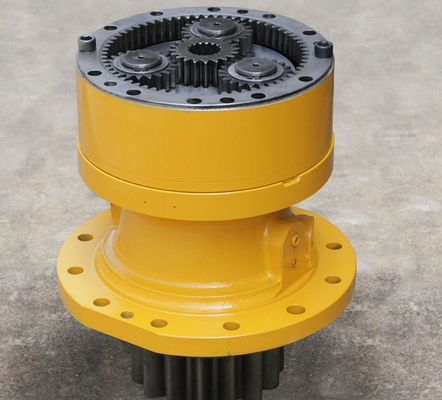

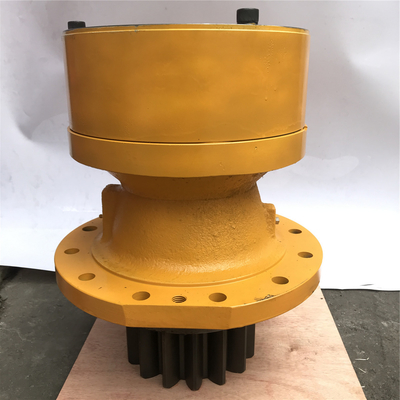

Pengurangan gearbox swing excavator R480LC-9S R520LC-9S swing gearbox 31QB-10141 untuk HYUNDAI
Deskripsi Produksi
Gambar Detail

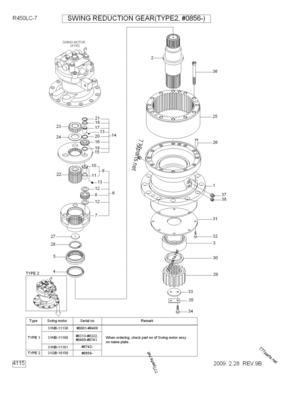

| # | Bagian No | Bagian nama | jumlah | Permintaan harga |
|---|---|---|---|---|
| *-2 | 31QB-10140 | GIGI PENGURANGAN SWING | 1 | |
| 1 | XKAQ-00637 | SELUBUNG | 1 | |
| 2 | XKAQ-00752 | SHAFT-DRIVE | 1 | |
| 3 | XKAQ-00026 | BEARING-ROLLER | 1 | |
| 4 | XKAQ-00032 | SEAL-OIL | 1 | |
| 5 | XKAQ-00029 | BEARING-ROLLER | 1 | |
| 6 | XKAQ-00753 | CARRIER ASSY 2 | 1 | |
| 7 | XKAQ-00075 | PEMBAWA-2 | 1 | |
| 8 | XKAQ-00023 | GEAR-PLANET 2 | 3 | |
| 9 | XKAQ-00643 | PIN ASSY 2 | 3 | |
| 10 | XKAQ-00070 | PIN & BUSHING | 1 | |
| N11 | XKAQ-00291 | BUSHING 2 | 1 | |
| 12 | XKAQ-00644 | WASHER-DORONG | 6 | |
| 13 | XKAQ-00048 | PIN-SPRING | 6 | |
| 14 | XKAQ-00754 | CARRIER ASSY 1 TERMASUK 13 |
1 | |
| 15 | XKAQ-00531 | PEMBAWA 1 | 1 | |
| 16 | XKAQ-00646 | PERLENGKAPAN PLANET 1 | 3 | |
| 17 | XKAQ-00415 | PIN 1 | 3 | |
| 18 | XKAQ-00030 | CAGE-JARUM | 3 | |
| 19 | XKAQ-00417 | PELAT-SISI 1 | 3 | |
| 20 | XKAQ-00416 | SISI PELAT 2 | 3 | |
| 21 | XKAQ-00041 | RING-STOP | 3 | |
| 22 | XKAQ-00755 | GEAR-SUN 2 | 1 | |
| 23 | XKAQ-00648 | GEAR-SUN 1 | 1 | |
| 24 | XKAQ-00534 | SISI PELAT 3 | 1 | |
| 25 | XKAQ-00649 | GIGI-RING | 1 | |
| 26 | XKAQ-00072 | PIN-KNOCK | 2 | |
| 27 | XKAQ-00404 | PLAT-DORONG | 1 | |
| 28 | XKAQ-00074 | RING-STOP | 1 | |
| 29 | XKAQ-00287 | PINI GIGI | 1 | |
| 30 | XKAQ-00018 | SPACER | 1 | |
| 31 | XKAQ-00031 | PLAT-COVER | 1 | |
| 32 | XKAQ-00064 | BOLT-HEX | 8 | |
| 33 | XKAQ-00043 | PLATE-LOCK | 1 | |
| 34 | XKAQ-00042 | BOLT-HEX | 2 | |
| 35 | XKAQ-00029 | BEARING-ROLLER | 1 | |
| 36 | XKAQ-00065 | BOLT-SOCKET | 12 | |
| 37 | XKAQ-00049 | PLUG-TEKANAN | 1 | |
| 38 | XKAQ-00274 | STEKER | 2 |
