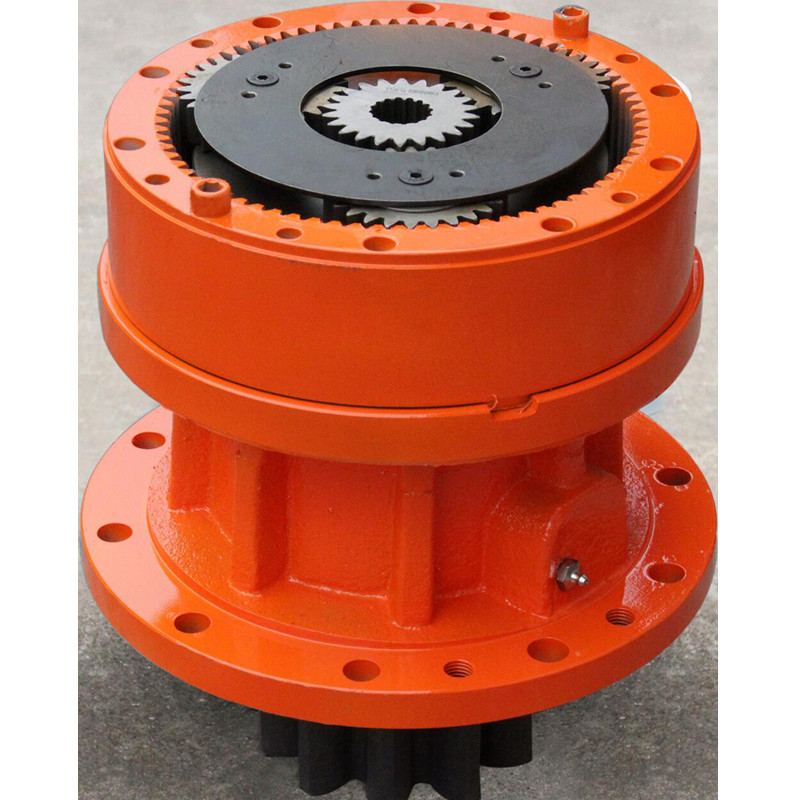

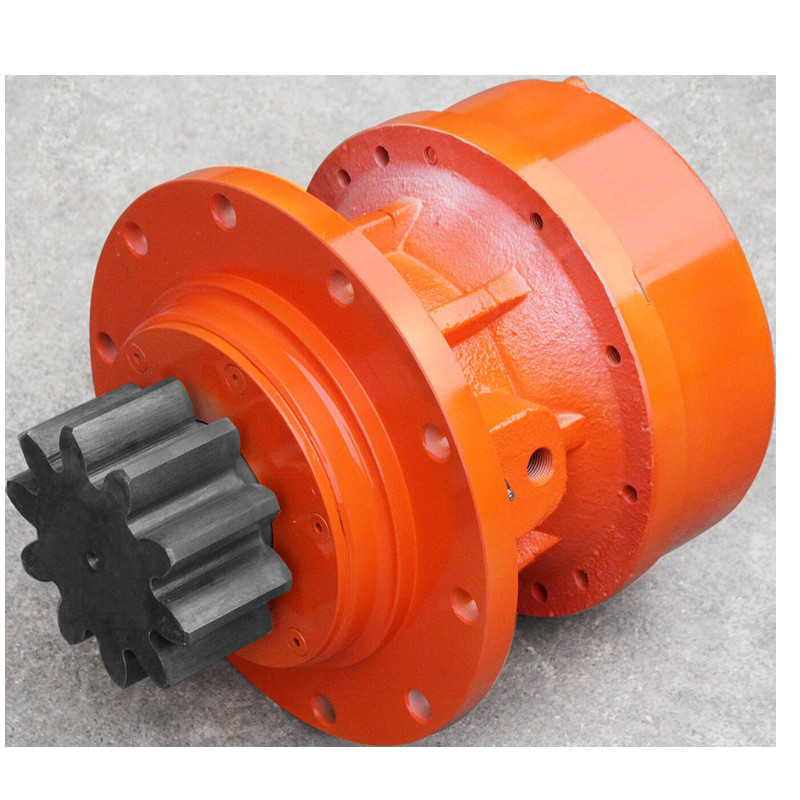

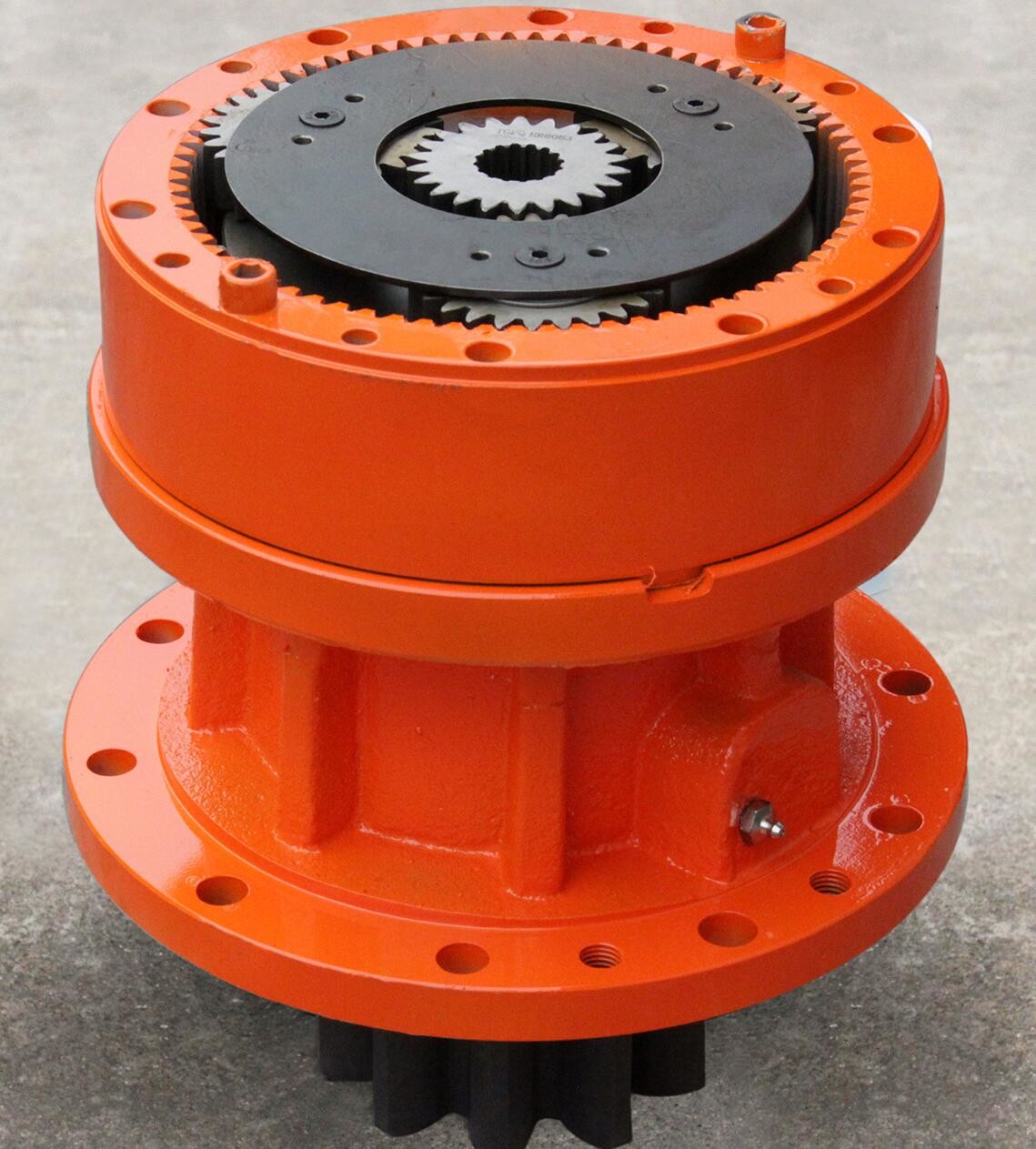

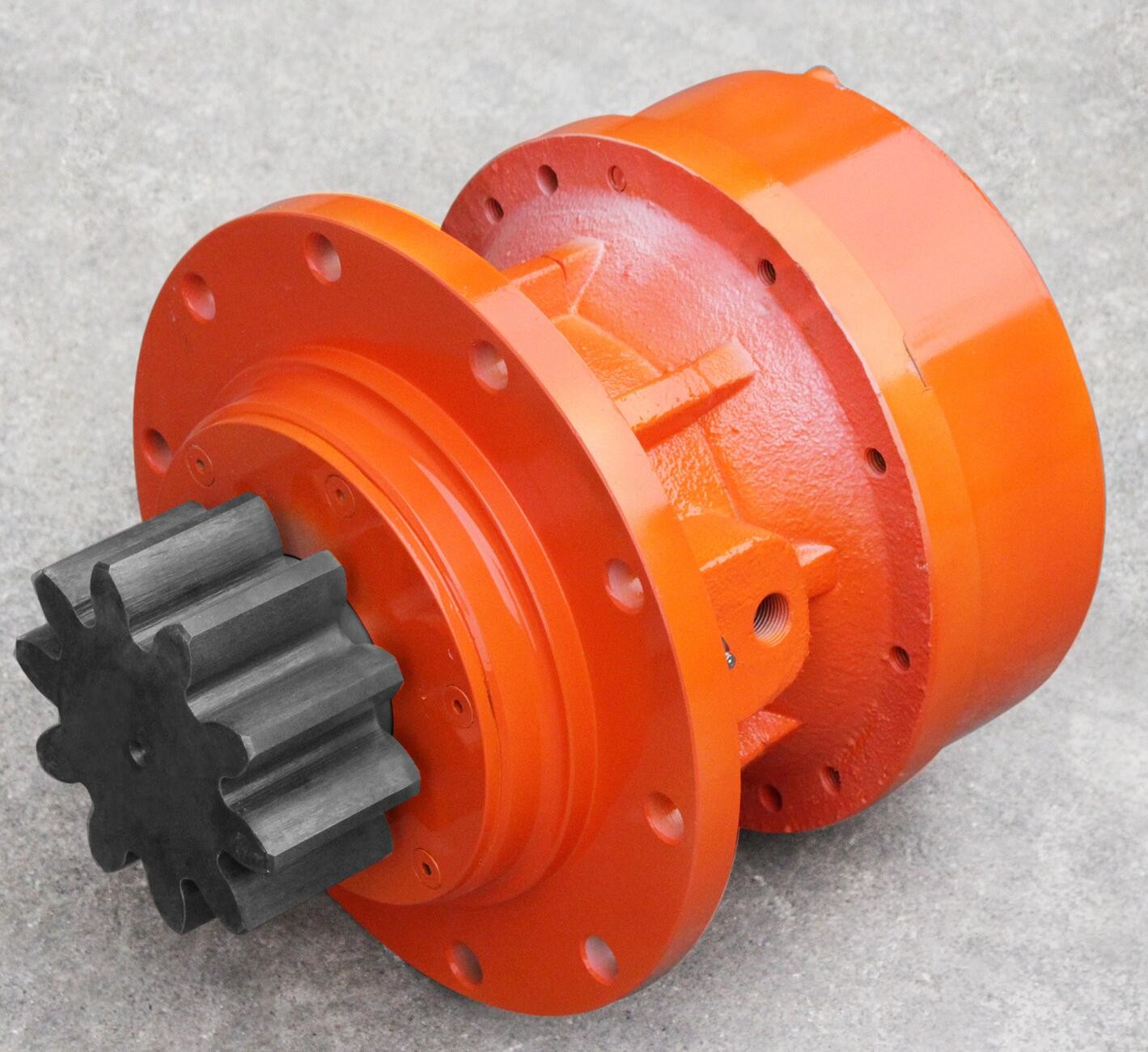

EXCAVATOR DX160 SWING GEARBOX K1007357B REDUKSI GIGI Swing UNTUK DOOSAN
|
Nama Produk |
Ayunan Gearbox |
|
Merek |
EXCAVATOR DOOSAN |
|
Model: |
DX160 |
|
Nomor bagian: |
K1007357B |
|
Bobot |
100kg |
|
Kemasan |
39*39*57 |
Gambar-gambar
| # | Bagian No | Bagian nama | Komentar | jumlah | Permintaan harga |
|---|---|---|---|---|---|
| - | K1007357B | GIGI, PENGURANGAN | 130 kg | 1 | |
| 1 | 402-00017 | SELUBUNG | 28 kg | 1 | |
| 2 | 405-00006 | SHAFT, MENGEMUDI | 14 kg | 1 | |
| 3 | 104-00019 | GIGI, CINCIN | 13 kg | 1 | |
| 4 | 404-00063 | GIGI, PLANET NO.2 | 1 kg | 4 | |
| 5 | 404-00064 | GIGI, MATAHARI NO.2 | 2 kg | 1 | |
| 6 | 404-00065 | GIGI, PLANET NO.1 | 1 kg | 3 | |
| 7 | 404-00066 | GIGI, MATAHARI NO.1 | 1 kg | 1 | |
| 8 | 230-00017 | PEMBAWA NO.2 | 6 kg | 1 | |
| 9 | 230-00018 | PEMBAWA NO.1 | 3 kg | 1 | |
| 10 | 123-00094 | PIN ASS'Y NO.2 | 4 | ||
| 11 | 123-00095 | PIN ASS'Y NO.1 | 3 | ||
| 12 | 2114-1594 | T/WASHER NO.3(=2114-1594P) | 13 | ||
| 13 | 2114-1592 | PENCUCI, DORONG(A) | 2 | ||
| 14 | 119-00003 | BAR, TINGKAT | 1 | ||
| 15 | 182-00009 | PIPA, PENGUKUR TINGKAT MINYAK | 1 | ||
| 16 | 123-00096 | PIN, KETUK | 2 | ||
| 17 | 2109-1041 | SPH.ROLLER BEARING(=2109-1041P) | 4 kg | 1 | |
| 18 | 2109-1042 | CYL.ROLLER BRG.(=2109-1042P) | 2 kg | 1 | |
| 19 | S2216873 | BOLT, HEX SOCKET | 10 | ||
| 20 | 180-00179 | SEGEL, MINYAK | 1 | ||
| 21 | 2181-1116D4 | colokkan, CEK ULANG | 97123-04111 | 1 | |
| 22 | 2181-1116D2 | colokkan, CEK ULANG | 2 | ||
| 23 | S5740890 | PIN-SPRING CL | 3 | ||
| 24 | S6500300 | CINCIN, PENYIMPANAN | 4 | ||
| 25 | S6500650 | CINCIN, PENYIMPANAN | 1 | ||
| 26 | 115-00037 | CINCIN, NILOS | 1 | ||
| 27 | S5740890 | PIN-SPRING CL | 4 | ||
| 28 | 191-00167 | PIRING, DUKUNGAN | 1 kg | 2 | |
| 29 | S3453116 | BAUT, SEKRUP | 1 kg | 6 |
