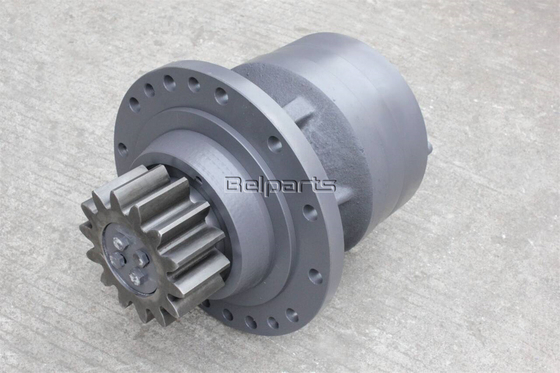

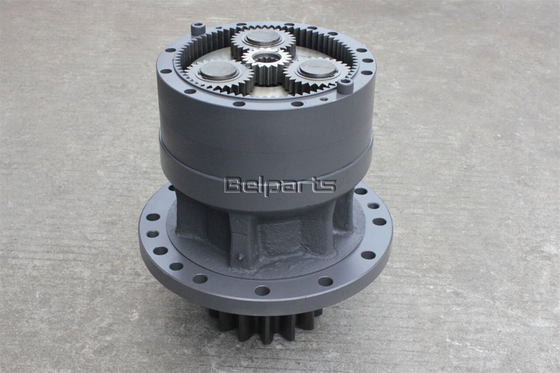

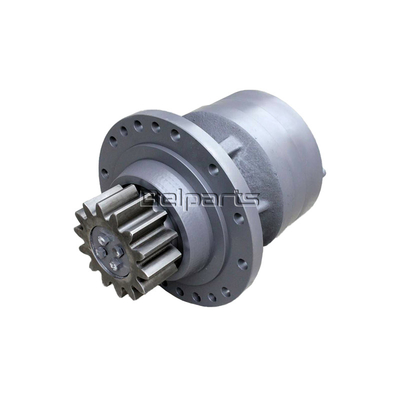

Belparts Excavator swing reduction gear DX225LC swing gearbox K1004037A 404-00097C untuk doosan
Nama produk:Kotak gir perangkat ayunan
Merek:Belparts
Model:DX225LC
Nomor bagian: 404-00097C K1004037A
Berat: 200 kg
Paket: 60x60x64
|
Nama produk |
Gearbox perangkat ayunan |
|
Merek |
Belparts |
|
Model: |
DX225LC |
|
Nomor bagian: |
404-00097C K1004037A |
|
Berat badan |
200kg |
|
Paket |
60x60x64 |
| # | Bagian No. | Nama Bagian | Komentar | Qty. | Permintaan harga |
| - | 404-00097C | Swing REDUCTION GEAR ASS'Y | 170 kg | 1 | |
| 1 | K1001235 | CA1SE, AXLE | 43 kg | 1 | |
| 2 | 2112-1248E | SHAFT, DRIVE | 23 kg | 1 | |
| 3 | 2412-1040 | Ring, NILOS | 1 | ||
| 4 | 2109-9033 | ROLLER BEARING ((=2109-9033P) | 13 kg | 1 | |
| 5 | 2891-1421B | Plat, COVER | 1 kg | 1 | |
| 6 | S6500380 | Ring, RETENING | 3 | ||
| 7 | 2180-1254 | SEAL, Minyak | 1 | ||
| 8 | 109-00174 | Bantalan silindris | 3 kg | 1 | |
| 9 | 104-00051A | Gear, Ring | 21 kg | 1 | |
| 10 | 230-00061 | Pengangkut No.2 | 11 kg | 1 | |
| 11 | 2114-1901A | WASHER, THUSH NO.2 | 4 | ||
| 12 | 104-00050 | Gear, Planet No.2 | 2 kg | 4 | |
| 13 | 110-00219 | Bush tidak.2 | 4 | ||
| 14 | 123-00437A | Nomor PIN.2 | 1 kg | 4 | |
| 15 | S5741341 | PIN, SPRING | 4 | ||
| 16 | S0121061 | BOLT, HEX.HD. | 1 | ||
| 17 | 114-00548 | WASHER, THUSH NO.3 | 1 | ||
| 18 | 104-00048 | Gear, SUN NO.2 | 2 kg | 1 | |
| 19 | 2705-1030 | PIN, ketuk | 1 kg | 4 | |
| 20 | 230-00060A | Pengangkut No.1 | 6 kg | 1 | |
| 21 | 114-00527 | WASHER, THUSH NO.1 | 3 | ||
| 22 | 104-00049A | Gear, Planet No.1 | 1 kg | 3 | |
| 23 | 123-00435A | PIN ASS ≠ NO.1 | 1 kg | 3 | |
| 24 | S2217471 | BOLT, SOCKET M12X150 | 16 | ||
| 25 | 104-00047A | Gear, SUN NO.1 | 1 kg | 1 | |
| 26 | S6500450 | Ring, SNAP | 1 | ||
| 27 | 2181-1116D2 | PULANG, CEK LEBIH | 2 | ||
| 28 | 2181-1116D4 | PULANG, CEK LEBIH | 97123-04111 | 1 | |
| 29 | 2140-1406 | Pipa, Pengukur Tingkat | 1 | ||
| 30 | 2119-1065 | Pengukuran, tingkat | 1 | ||
| 31 | S5231090 | WASHER, Double Tap | 1 | ||
| 32 | 140-01374A | PIPE | 4 | ||
| 33 | 120-00144 | BOLT, HEX. HD | 8 |
