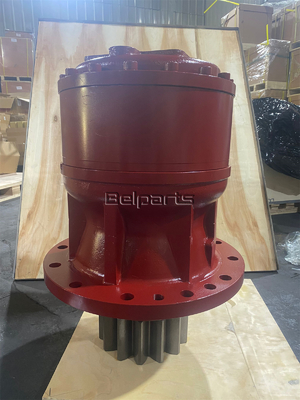

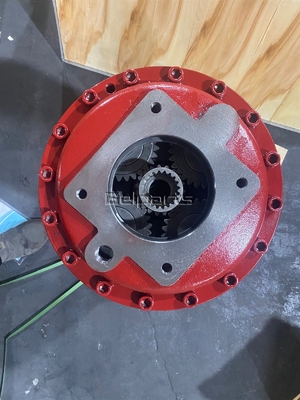

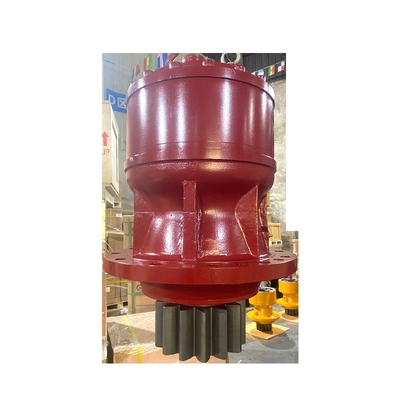

Doosan excavator baru DX340LC DH370-7 404-00094B 423-00172 swing reduction gearbox untuk suku cadang excavator
| Nama Bagian | Final drive excavator |
| Model | DX340LC DH370-7 |
| Nomor Bagian | 404-00094B 180-00444 423-00172 104-00037 |
| Tempat Asal | Guangzhou China |
| Garansi | 6 Bulan |
| Kondisi Barang | Baru |
| Merek | Belparts |
| MOQ | 1 Buah |
| # | No. Bagian | Nama Bagian | Komentar | Jumlah | Permintaan harga |
|---|---|---|---|---|---|
| 24 | 180-00444 | SEAL, OIL | 1 | ||
| - | 404-00094B | GEAR , SWING REDUCTION | 321 kg | 1 | |
| 1 | 105-00011A | SHAFT | 43 kg | 1 | |
| 2 | 423-00172 | CA1SE, GEAR | 31 kg | 1 | |
| 3 | 230-00056A | CARRIER NO.2 | 23 kg | 1 | |
| 4 | 104-00039 | GEAR, SUN NO.2 | 5 kg | 1 | |
| 5 | 104-00037 | GEAR, PLANETARY NO.2 | 4 kg | 4 | |
| 6 | 223-00043 | PLATE, SIDE NO.2 | 4 | ||
| 7 | 123-00459 | SHAFT FOR PIN NO.2 | 2 kg | 4 | |
| 8 | 110-00228 | BUSH NO.2 | 4 | ||
| 9 | 230-00057 | CARRIER NO.1 | 7 kg | 1 | |
| 10 | 104-00038 | GEAR, SUN NO.1 | 3 kg | 1 | |
| 11 | 104-00042 | GEAR, PLANETARY NO.1 | 2 kg | 3 | |
| 12 | 223-00044 | PLATE, SIDE NO.1 | 3 | ||
| 13 | 123-00457 | PIN ASSY NO.1 | 1 kg | 3 | |
| 14 | 104-00040 | GEAR, RING | 37 kg | 1 | |
| 15 | 223-00045 | PLATE, THRUST | 1 | ||
| 16 | 621-02348 | COVER | 16 kg | 1 | |
| 17 | 705-00008 | PIN, LOCK | 1 kg | 4 | |
| 18 | 114-00543 | SPACER | 2 kg | 1 | |
| 19 | 114-00544 | COLLAR | 2 kg | 1 | |
| 20 | 159-00233 | PLATE | 2 kg | 1 | |
| 21 | 278-00090 | RING, LOCKING | 2 kg | 1 | |
| 22 | 109-00168 | BEARING, SPHERICAL ROLLER | 23 kg | 1 | |
| 23 | 109-00169 | BEARING, SPHERICAL ROLLER | 4 kg | 1 | |
| 25 | S5741361 | PIN, SPRING | 4 | ||
| 26 | S5810030 | PLUG | 1 | ||
| 27 | S5810010 | PLUG | 2 | ||
| 28 | S5810050 | PLUG | 1 | ||
| 29 | 120-00294 | BOLT, SOCKET M16X180 | 16 | ||
| 30 | 140-01343A | PIPE, HYDRAULIC | 1 | ||
| 31 | 119-00020 | BAR, LEVEL | 1 | ||
| 32 | 120-00293 | BOLT, SOCKET M16X40 | 1 kg | 4 | |
| 33 | 223-00046 | PLATE, SIDE NO.3 | 3 | ||
| 34 | S6500400 | RING, RETAINING | 3 | ||
| 35 | 230-00064 | CARRIER ASS'Y , NO1 | 15 kg | 1 | |
| 36 | 230-00065 | CARRIER ASS'Y , NO2 | 40 kg | 1 |
| JS130/JS145 | LNM0437 |
| E314C | 467-4412 |
| E315C/E315DL/E318DL | 333-3015 |
| Kobelco SK140 | YY32W00004F1 |
| CX210B | LN00111 |
| Kobelco SK75-8 | YR32W00002F1 |
| CX210C | KRC10221 |
| ZX330-1 | 4419718 |
| ZX330-3 | 4616985 |
| R130, 140, 150, DX150 M2X63 | 31N4-10130 |
