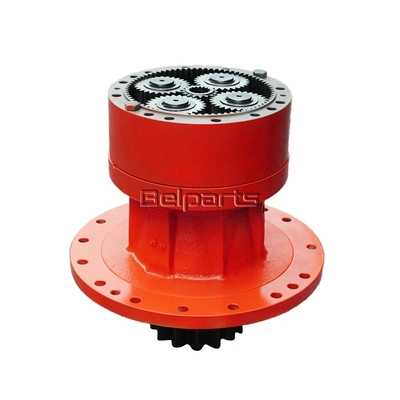

Doosan excavator DH290LC-V swing gearbox pengurangan 2101-1025G 2101-1025E 2101-1025H
| Nama Bagian | Penggerak akhir excavator |
| Model | DH290LC-V 2101-1025G |
| Nomor Bagian | 2101-1025E2101-1025G 2101-1025H 2423-1184D |
| Tempat Asal | Guangzhou Cina |
| Jaminan | 6 bulan |
| Kondisi Item | Baru |
| Merek | Belparts |
| MOQ | 1 buah |
Kita bisa memasok kotak gir swing, juga suku cadang bagian dalam seperti model di bawah:
| 1 | 2423-1184D | Casing, depan | 38 kg | 1 | |
| 2 | 2423-1185 | CASING, MIDDLE | 31 kg | 1 | |
| 3 | 2112-1156C | SHAFT, DRIVE | 52 kg | 1 | |
| 3 | 2112-1156E | SHAFT, DRIVE | 43 kg | 1 | |
| 4 | 2104-1004C | Gear, RING ((NO.2) | 1 | ||
| 4 | 2104-1004E | Gear, RING ((NO.2) | 29 kg / 460*460*90 | 1 | |
| 5 | 2101-1006C | Gear, planetary ((NO.2) | 3 | ||
| 5 | 2101-1006E | Gear, planetary ((NO.2) | 7 kg | 3 | |
| 6 | 2101-1005E | Gear, SUN ((NO.2) | 1 | ||
| 6 | 2101-1005G | Gear, SUN ((NO.2) | 6 kg | 1 | |
| 6 | 2101-1005H | Gear, SUN ((NO.2) | 6 kg | 1 | |
| 7 | 2104-1005C | Gear, RING ((NO.1) | 8 kg | 1 | |
| 8 | 2101-1031 | Gear, planetary ((NO.1) | 1 kg | 3 | |
| 9 | 2101-1032 | Gear, SUN ((NO.1) | 3 kg | 1 | |
| 10 | 2230-1034 | Pengangkut | 8 kg | 1 | |
| 11 | 2123-1631B | PIN | 2 kg | 3 | |
| 12 | 2114-1553 | WASHER, THRUST (mencuci, mendorong) | 6 | ||
| 12 | 2114-1553A | WASHER, THRUST (mencuci, mendorong) | 6 | ||
| 13 | 2549-1118 | Tombol, dorongan | 1 | ||
| 14 | 2123-1632 | PIN ((NO.1) | 1 kg | 3 | |
| 15 | 2412-9001 | PLATE NO.1 ((= 2412-9001P) | 12 kg | 3 | |
| 16 | 2412-9002 | Plat samping no.2 | 3 | ||
| 17 | 2412-9003 | PLAT Sisi ((= 2412-9003P) | 1 | ||
| 18 | 2505-1009 | BAR, LEVEL | 1 kg | 1 | |
| 19 | 2182-1304 | PIPE | 1 | ||
| 20 | 2278-1009A | RING, SPACER | 1 kg | 1 | |
| 21 | 2123-1634 | PIN, ketuk | 4 | ||
| 22 | 2109-9031 | SPH.ROLLER BRG.(=2109-9031P) | 12 kg | 1 | |
| 23 | 2109-9032 | SPH.ROLLER BRG.(=2109-9032P) | 5 kg | 1 | |
| 24 | 2216-9001 | Cage jarum ((= 2216-9001P) | 3 | ||
| 25 | S2225971 | Bolt, kunci | 1 kg | 16 | |
| 26 | S2224871 | Bolt kunci, gear pengurangan | E0502399 | 12 | |
| 27 | 2180-1235 | SEAL, Minyak | 1 | ||
| 28 | 2123-1633D2 | PIN, SPRING | 3 |
| E345 | 2966253 | Swing Gearbox CAT E345 |
| R250LC-7 | 31N7-10160 pengganti 31N7-10180 | Swing Motor Hyundai R250LC-7 |
| JS240 | 20/925266 | Swing MOTOR JСB240 |
| PC200-8 | 706-7G-01170 | Komatsu PC200-8 |
| E345 | 225-4505 | Swing MOTOR SAT345 |
| E345 | 2966253 | Swing Gearbox CAT E345 |
| R290LC-7A | 31E9-01052 | Swing Gearbox Hyundai R290LC-7a |
| R210LC-7 ((R450,R520) | 31N6-10210 | Motor ayunan HYUNDAI R210LC-7 (R450, R520) |
| R480-9 R210 | 39Q6-11100 | Motor ayunan HYUNDAI R220LC-9S (tipe 2) 38QB-11101 R480-9 |
| JS220 | 20/925315 | Motor ayunan JСB220 |
| EC210 EC460 | SA1142-00930 | Motor swing VOLVO ES210 (ES460) (M5X130) |
| EC240 | 14550094 | Motor swing VOLVO ЕС240 M2X46 tipe lama |
| JS220 SH200 | JRC00007 | Swing gearbox JCB220 (tipe baru) |
| SOLAR255 DH258 | 401-00352 | Swing Motor SOLAR255 |
| R290-7A | 31N8-10122 | Motor ayunan R290-7a - 31N8-10122 |
| Daewoo S130 | 404-1066A | Kotak gir swing |
