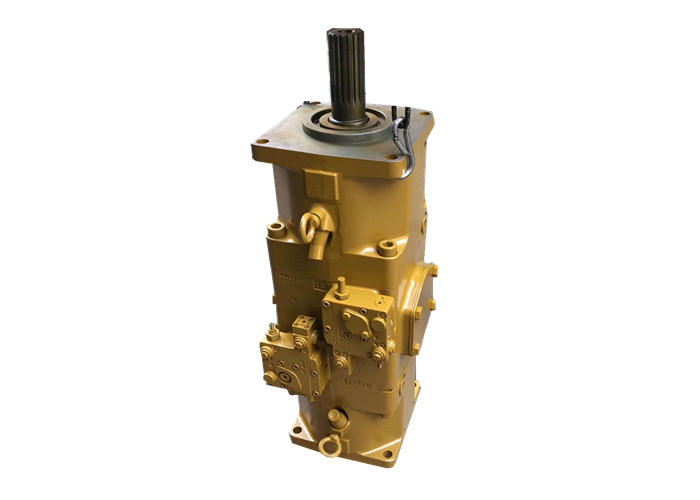

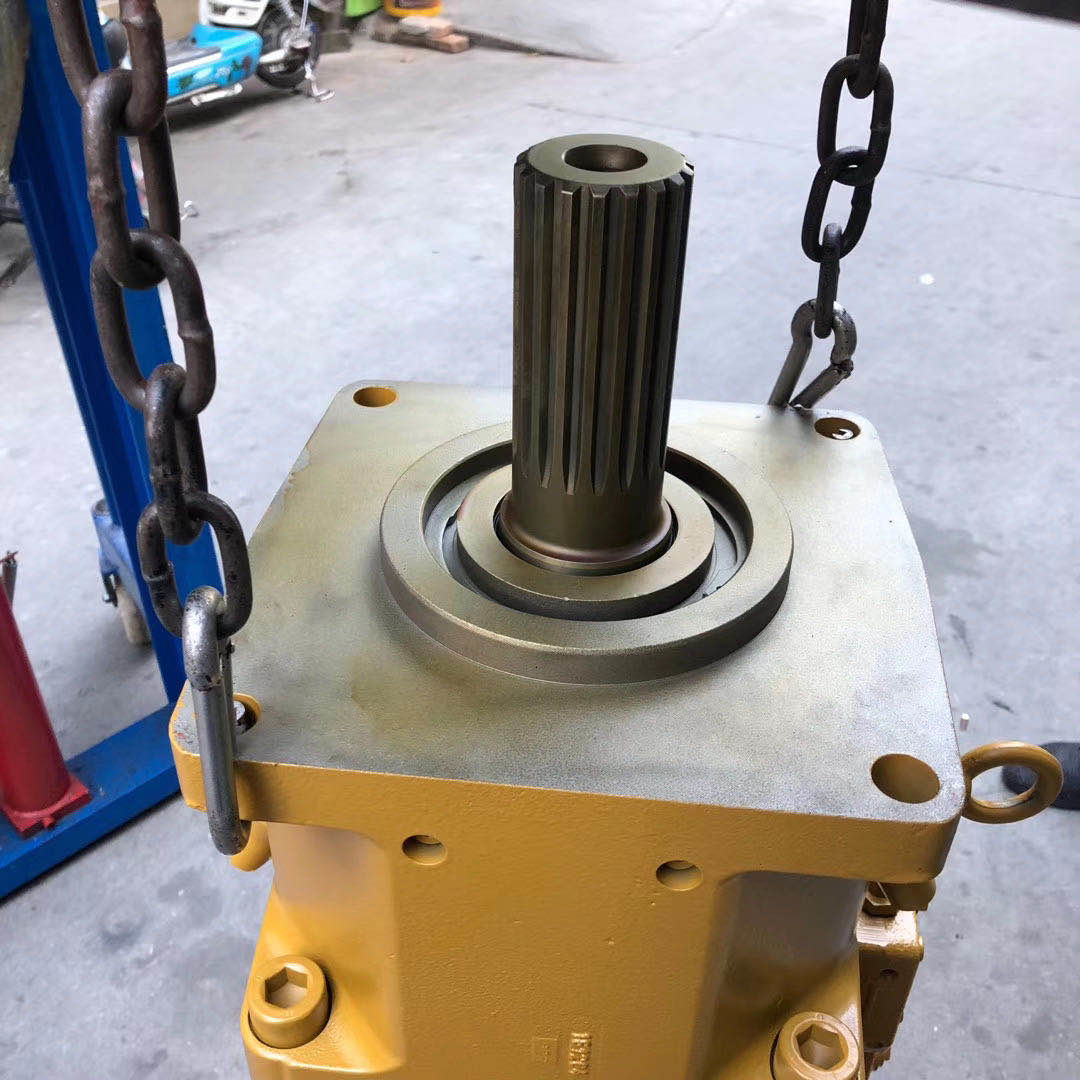

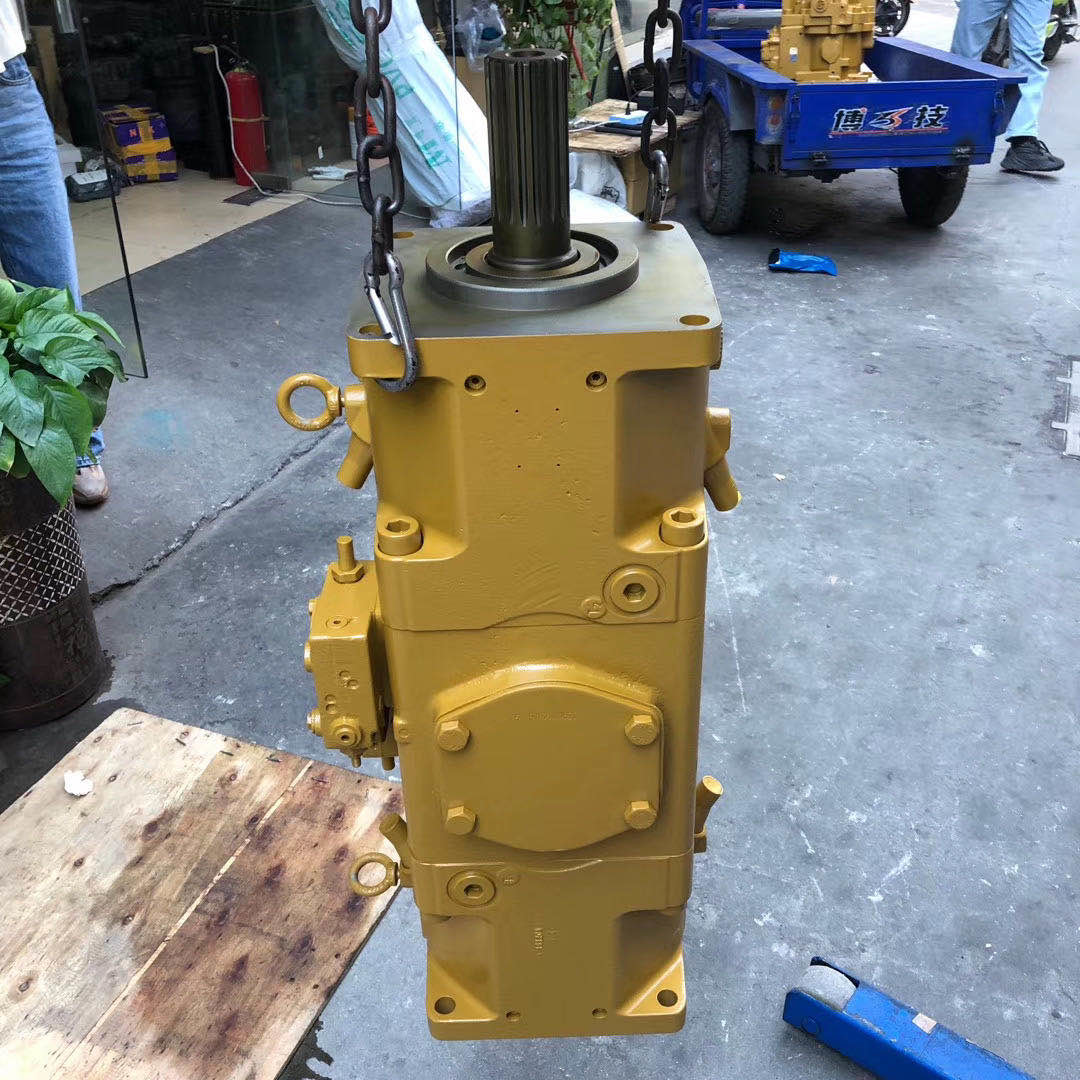

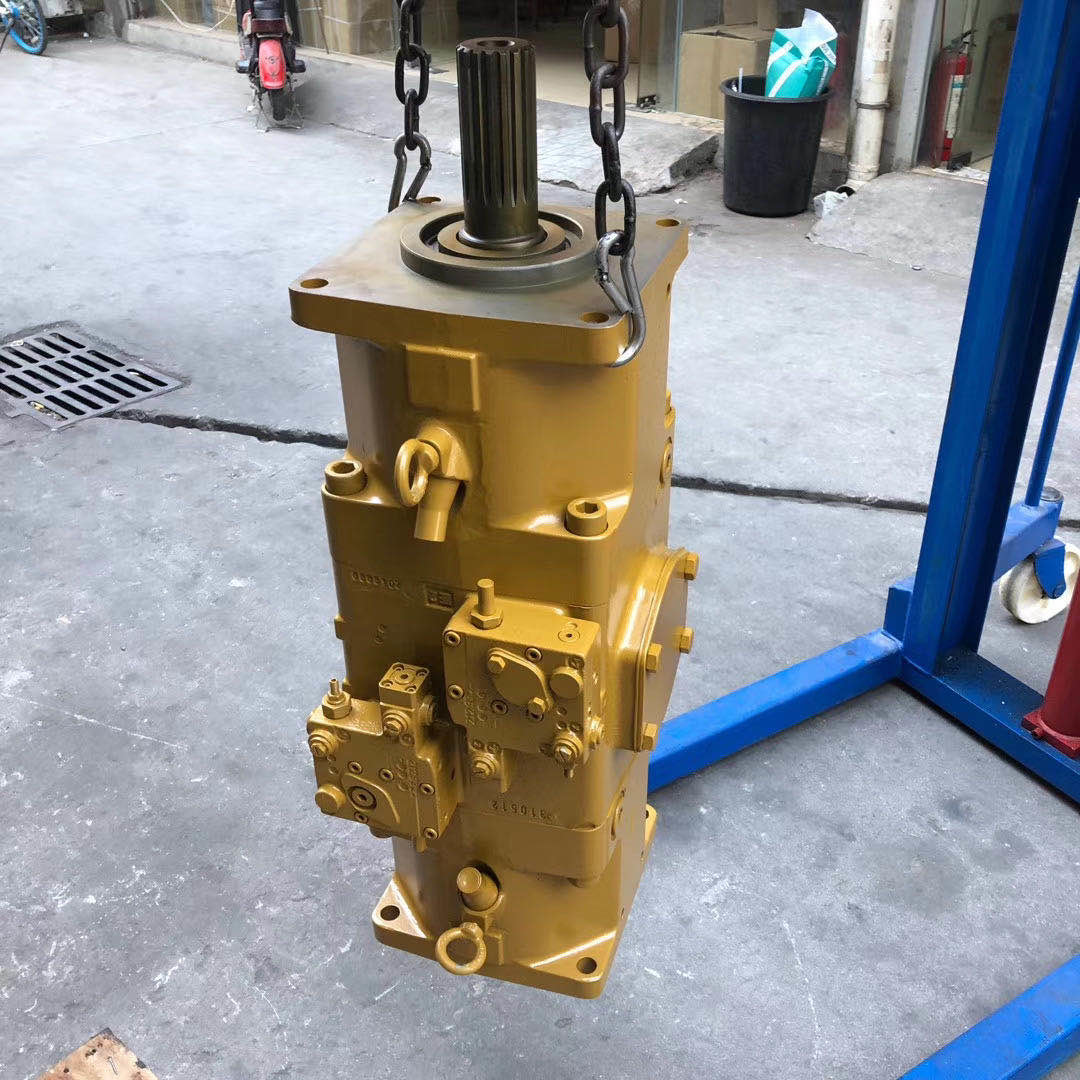

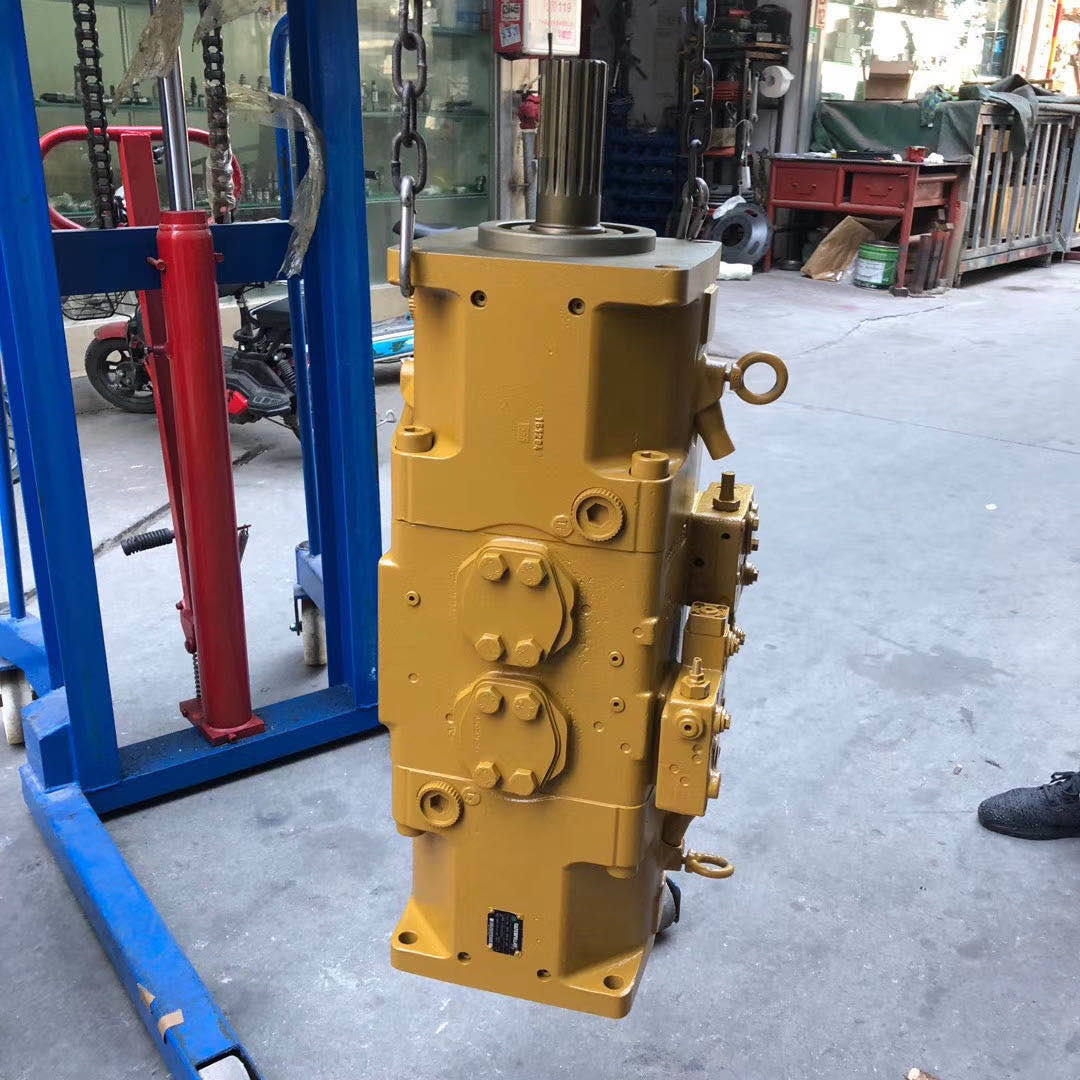

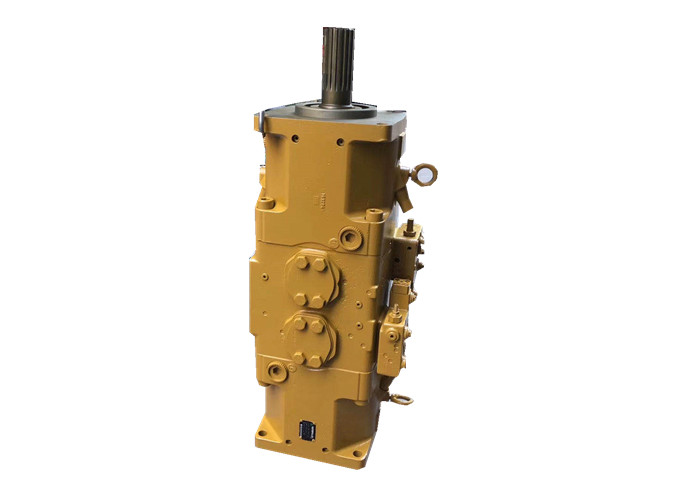

Pompa Hidrolik erpillar Excavator 295-9676 E374D E374DL E375D Pompa Utama
Deskripsi Produk:
| Aplikasi | Ekskavator perayap |
| Bagian nama | Pompa utama hidrolik |
| Nomor bagian | 295-9676 |
| Model excavator | E374D E374DL E375D |
| Warna | Kuning |
| Kualitas | Aftermarket |
| Pembayaran | T / T (transfer bank), western union, paypal, jaminan perdagangan |
| Pengiriman | Melalui laut, melalui udara, dengan mengungkapkan (DHL, UPS, TNT, FEDEX, EMS) |
| # | Bagian no | Bagian nama | Jumlah | |
|---|---|---|---|---|
| 1 | 1850217 | VALVE GROUP-PUMP CONTROL -PRESSURE, FLOW COMPENSATOR | 1 | |
| 2 | 1709900 | PIN | 4 | |
| 3 | 3264427 | ROTATING GROUP-PUMP -MIN HYDRAULIC PUMP | 1 | |
| 4 | 1589103 | ACTUATOR GROUP-PUMP -MAXIMUM ANGLE | 2 | |
| 5 | 1453171 | LOCKNUT-SEAL | 4 | |
| 6 | 1453169 | PIN-BENANG | 4 | |
| 7 | 2349503 | SEAL-O-RING | 2 | |
| 8 | 0968058 | RING-RETAINING | 2 | |
| 9 | 1124629 | SEKRUP | 1 | |
| 10 | 3154381 | KENDALI VALVE GROUP-PUMP | 1 | |
| 11 | 1589097 | ROTATING GROUP-PUMP -MIN HYDRAULIC PUMP | 1 | |
| 12 | 1124630 | SCREW (1-5 / 16-THD) | 4 | |
| 13 | 2494488 | ACTUATOR GROUP-PUMP | 2 | |
| 14 | 1589105 | VALVE GROUP-SHUTTLE | 2 | |
| 15 | 1589098 | HEAD GROUP-PUMP -MIN HYDRAULIC PUMP | 1 | |
| 16 | 1659353 | BLOK | 1 | |
| 17 | 1175716 | PIN | 8 | |
| 18 | 9T3928 | PLUG (HEX) (M10 THD) | 8 | |
| (SETIAP TERMASUK) | ||||
| 1878001 | SEGEL | 1 | ||
| 19 | 1770359 | KEPALA BOLT-SOCKET (M22X25X90-MM) | 8 | |
| 20 | 1833242 | PRELOAD AS | 2 | |
| (SETIAP TERMASUK) | ||||
| 1833252 | TONGKAT | 1 | ||
| 1834888 | JAKET | 1 | ||
| 1838404 | MUSIM SEMI | 1 | ||
| 1866592 | MUSIM SEMI | 30 | ||
| 21 | 2055626 | TOPI | 4 | |
| 22 | 9T4367 | CAP AS. | 2 | |
| 23 | 1225335 | TOPI | 2 |
Produk utama kami:
Kobelcol, Komatsu, Hitachi, Sumitomo, Kato, Daewoo, Doosan, , Hyundai, erpillar, Kasing, IHI, JCB
Produk utama kami adalah pompa hidrolik excavator, bagian hidrolik (bagian pompa utama, bagian motor travel, bagian motor swing), motor travel ass'y,
swing motor ass'y, final drive gearbox, swing gearbox, bagian gearbox, pompa roda gigi, katup pelepas, dll.
