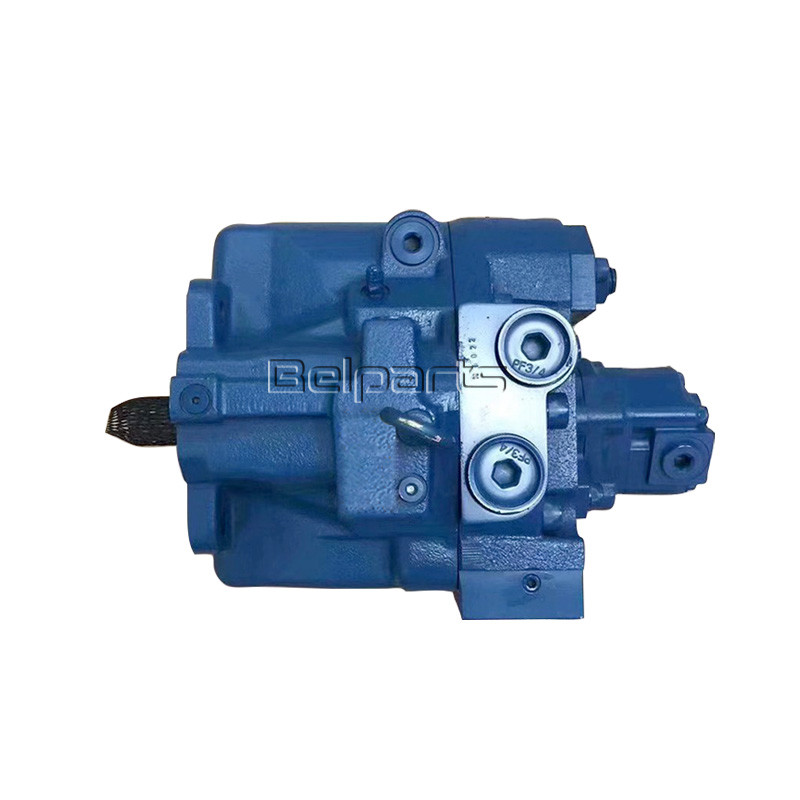

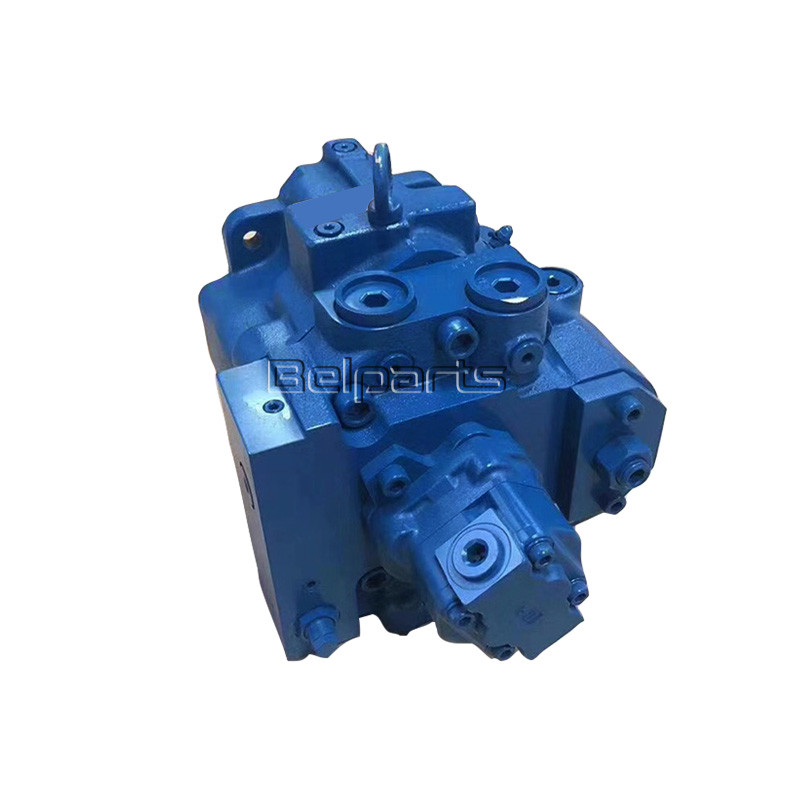

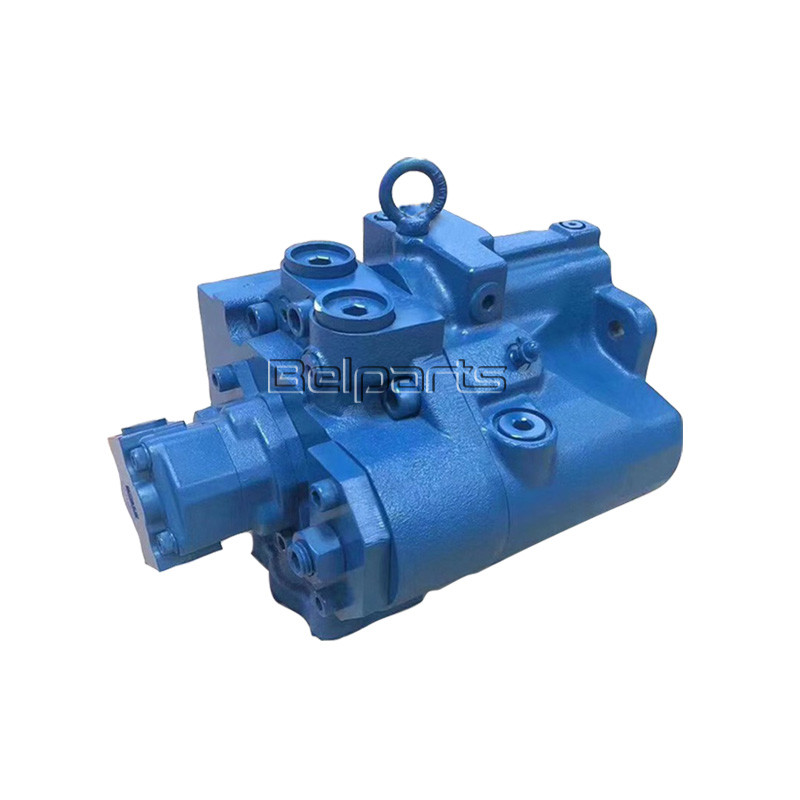

Belparts excavator pompa utama R80-7 pompa hidrolik 31N1-10010 31Q1-10050 untuk Hyundai
Aplikasi:Excavator
Nama bagian:hydarulicpompa
Nomor bagian:31N1-10010 31Q1-10050
Model:R80-7
MOQ: 1 PC
Bahan: Baja
Istilah pembayaran:T/T, Western Union, paypal, jaminan perdagangan atau sesuai kebutuhan
Berat: 190kg
Merek:Belparts
| Penerapan | Mesin penggali |
| Nama bagian | hidarulikpompa |
| Nomor bagian | 31N1-10010 31Q1-10050 |
| Model | R80-7 |
| MOQ | 1 PC |
| Bahan | Baja |
| Istilah Pembayaran | T/T, Western union, paypal, jaminan perdagangan atau sesuai kebutuhan |
| Berat badan | 190kg |
| Merek | Belparts |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N1-10010 | Pompa Utama | 1 | |
| 1 | XJDD-00002 | SHAFT ASSY | 1 | |
| 1-1 | XJDD-00024 | SHAFT | 1 | |
| 1-2 | XJDD-00025 | Segel pemegang | 1 | |
| 1-3 | XJDD-00026 | Keterangan: | 1 | |
| 1-4 | XJDD-00027 | Pengendalian cincin | 2 | |
| 1-5 | XJDD-00028 | SEAL-OIL | 1 | |
| 1-6 | XJDD-00029 | O-RING | 1 | |
| 1-7 | XJDD-00030 | Pengendalian cincin | 1 | |
| 2 | XJDD-00003 | SWAASH PLATE ASSY | 1 | |
| 2-1 | XJDD-00031 | Gelap | 1 | |
| 2-2 | XJDD-00032 | Panduan | 1 | |
| 2-4 | XJDD-00033 | Panduan | 1 | |
| 2-6 | XJDD-00034 | O-RING | 1 | |
| 2-7 | XJDD-00035 | RING-BACK UP | 1 | |
| 2-8 | XJDD-00036 | PLUG | 2 | |
| 2-9 | XJDD-00037 | PIN | 1 | |
| 2-10 | XJDD-00038 | BUSHING | 1 | |
| 3 | XJDD-00004 | ROTARY GROUP | 1 | |
| 3-1 | XJDD-00039 | Piston | 10 | |
| 3-2 | XJDD-00040 | Blok-silinder | 1 | |
| 3-3 | XJDD-00041 | Pengendali | 1 | |
| 3-5 | XJDD-00042 | Panduan | 1 | |
| 3-6 | XJDD-00043 | SPRING | 1 | |
| 3-7 | XJDD-00044 | PIN-PARALEL | 3 | |
| 3-8 | XJDD-00045 | SPACER-SPRING | 2 | |
| 3-9 | XJDD-00046 | Pengendalian cincin | 1 | |
| 5 | XJDD-00006 | Pengendalian ASSY SPRING | 1 | |
| 5-1 | XJDD-00056 | SPACER-SPRING | 1 | |
| 5-2 | XJDD-00057 | SPACER-SPRING | 1 | |
| 5-3 | XJDD-00058 | PELUAR | 1 | |
| 5-4 | XJDD-00059 | Pengaturan sekrup | 1 | |
| 5-5 | XJDD-00060 | SPRING | 1 | |
| 5-6 | XJDD-00061 | SPRING | 1 | |
| 5-7 | XJDD-00062 | O-RING | 1 | |
| 5-8 | XJDD-00063 | BOLT | 2 | |
| 5-9 | XJDD-00064 | NUT | 1 | |
| 5-10 | XJDD-00065 | Panduan | 1 | |
| 5-34 | XJDD-00066 | SHIM ((0.3T) | 2 | |
| 5-44 | XJDD-00067 | SHIM ((0.5T) | 2 | |
| 5-54 | XJDD-00068 | SHIM ((1.0T) | 2 | |
| 6 | XJDD-00007 | Pengendalian ASSY SPRING | 1 | |
| 6-1 | XJDD-00069 | Silinder | 1 | |
| 6-2 | XJDD-00070 | Piston | 1 | |
| 6-3 | XJDD-00071 | Piston | 1 | |
| 6-4 | XJDD-00072 | PEMBALANG-PLATE | 4 | |
| 6-5 | XJDD-00073 | SPACER | 1 | |
| 6-6 | XJDD-00074 | SPACER | 1 | |
| 6-7 | XJDD-00075 | SPACER | 1 | |
| 6-8 | XJDD-00076 | SPACER | 1 | |
| 8 | XJDD-00009 | Perumahan | 1 | |
| 9 | XJDD-00010 | Ventilasi udara katup | 1 | |
| 10 | XJDD-00011 | BUSHING | 1 | |
| 11 | XJDD-00012 | Baja bola | 1 | |
| 12 | XJDD-00013 | PLUG | 1 | |
| 13 | XJDD-00014 | PLUG | 1 | |
| 14 | XJDD-00015 | Pengemasan | 1 | |
| 15 | XJDD-00016 | SHIM | 1 | |
| 16 | XJDD-00017 | PLUG | 1 | |
| 17 | XJDD-00018 | NAME PLATE ASSY | 1 | |
| 19 | XJDD-00020 | PLUG | 1 | |
| 22 | XJDD-00021 | Plug ASSY | 1 | |
| 23 | XJDD-00022 | Oriffice | 1 | |
| 25 | 1800174537 | 2 |
