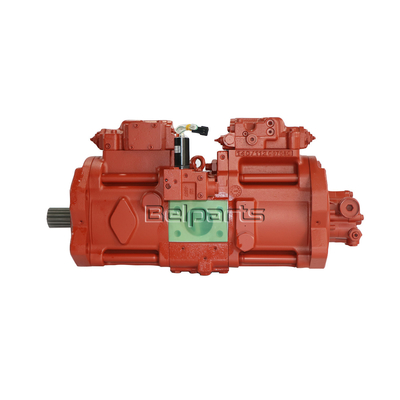

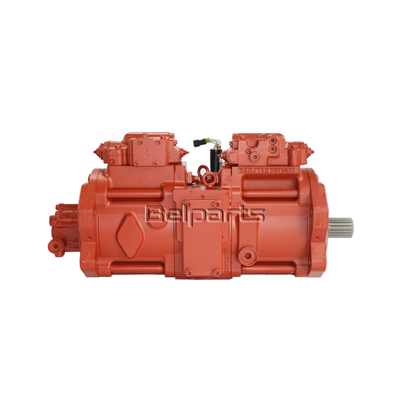

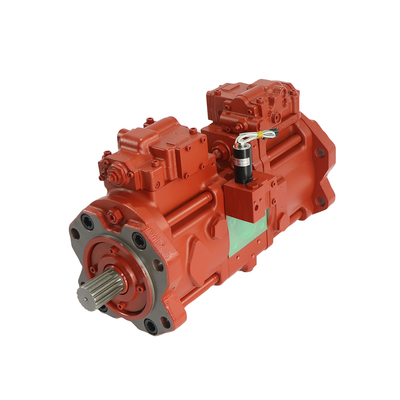

Bagian bel R305 R335 R350-7-9 Pompa hidraulik excavator 31N8-10011 31N8-10070 pompa utama hidraulik
Aplikasi:Excavator
Nama bagian:hydarulicpompa
Nomor bagian:31N8-10011 31N8-10070
Model:R305 R335 R350-7-9
MOQ: 1 PC
Bahan: Baja
Istilah pembayaran:T/T, Western Union, paypal, jaminan perdagangan atau sesuai kebutuhan
Berat: 190kg
Merek:Belparts
| Penerapan | Mesin penggali |
| Nama bagian | hidarulikpompa |
| Nomor bagian | 31N8-10011 31N8-10070 |
| Model | R305 R335 R350-7-9 |
| MOQ | 1 PC |
| Bahan | Baja |
| Istilah Pembayaran | T/T, Western union, paypal, jaminan perdagangan atau sesuai kebutuhan |
| Berat badan | 190kg |
| Merek | Belparts |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31N8-10011 | Pompa Utama | 1 | |
| *-1 | XJBN-00996 | Unit Pompa Utama | 1 | |
| 111 | XJBN-00015 | SHAFT-DRIVE ((F) | 1 | |
| 113 | XJBN-00153 | SHAFT-DRIVE ((R) | 1 | |
| 114 | XJBN-00367 | PEMANGGUNG-SPLINE | 1 | |
| 123 | XJBN-00017 | Berkas-Roller | 2 | |
| 124 | XJBN-00018 | Jaring bantalan | 2 | |
| 127 | XJBN-00019 | SPACE-LAYER | 3 | |
| NS141 | XJBN-00007 | Blok-silinder | 2 | |
| NS151 | XJBN-00004 | Piston | 18 | |
| NS152 | XJBN-00748 | Sepatu | 18 | |
| 153 | XJBN-00020 | PLATE-SET | 2 | |
| 156 | XJBN-00021 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00022 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00023 | Sepatu plat | 2 | |
| NS212 | XJBN-00012 | Plat-Swash | 2 | |
| NS214 | XJBN-00013 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00024 | Dukungan | 2 | |
| 261 | XJBN-00025 | COVER ((FR) - SEAL | 1 | |
| 271 | XJBN-00026 | Casing-Pump | 2 | |
| 312 | XJBN-00027 | BLOCK-VALVE | 1 | |
| NS313 | XJBN-00008 | PLATE ((R) -VALVE | 1 | |
| NS314 | XJBN-00010 | PLATE ((L) -VALVE | 1 | |
| N325 | XJBN-00380 | -VALVE | 1 | |
| 401 | XJBN-00028 | PELUANG | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 407 | XJBN-00381 | PELUANG | 3 | |
| 466 | XJBN-00356 | PLUG | 3 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 32 | |
| NS531 | XJBN-00369 | PING-TILT | 2 | |
| 532 | XJBN-00033 | PISTON-SERVO | 2 | |
| 534 | XJBN-00034 | STOPPER ((L) | 2 | |
| 535 | XJBN-00035 | STOPPER (S) | 2 | |
| N541 | XJBN-00036 | SEAT | 4 | |
| N543 | XJBN-00037 | Stopper 1 | 2 | |
| N544 | XJBN-00039 | Stopper 2 | 2 | |
| N545 | XJBN-00359 | Baja bola | 4 | |
| NS548 | XJBN-00360 | PIN-feed kembali | 2 | |
| 702 | XJBN-00040 | O-RING | 2 | |
| 710 | XJBN-00041 | O-RING | 1 | |
| 717 | XJBN-00042 | O-RING | 2 | |
| 719 | XJBN-00043 | O-RING | 2 | |
| 724 | XJBN-00361 | O-RING | 16 | |
| 725 | XJBN-00362 | O-RING | 8 | |
| 727 | XJBN-00283 | O-RING | 1 | |
| 728 | XJBN-00363 | O-RING | 3 | |
| 732 | XJBN-00047 | O-RING | 2 | |
| 774 | XJBN-00048 | SEAL-OIL | 1 | |
| 789 | XJBN-00049 | RING-BACK UP | 2 | |
| 792 | XJBN-00050 | RING-BACK UP | 2 | |
| 808 | XJBN-00364 | NUT | 4 | |
| 824 | XJBN-00052 | RING-SNAP | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 886 | XJBN-00365 | Pin-SPRING | 4 | |
| 901 | XJBN-00055 | BOLT-EYE | 2 | |
| 953 | XJBN-00056 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00057 | SETUAN SELINGKAP | 2 | |
| 981 | XJBN-00156 | NAME PLATE (Plat Nama) | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | XJBN-00001 | Pengatur | 1 | |
| *-3 | XJBN-00002 | Pompa Girasi | 1 | |
| *-4 | XJBN-00014 | CASING ASSY-EPPR VLV | 1 | |
| 011 | XJBN-00003 | Piston Sub ASSY Lihat ILLUST |
2 | |
| 013 | XJBN-00006 | Silinder ASSY-RH Lihat ILLUST |
1 | |
| 014 | XJBN-00009 | Silinder ASSY-LH Lihat ILLUST |
1 | |
| 030 | XJBN-00011 | SWAASH PLATE ASSY Lihat ILLUST |
2 | |
| 053 | XJBN-00371 | SELINGKAP PIN ASSY Lihat ILLUST |
2 | |
| N | @ | Pipa injeksi bahan bakar & NOZZLE | 1 |
