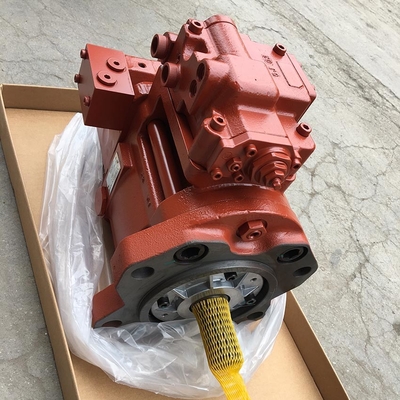

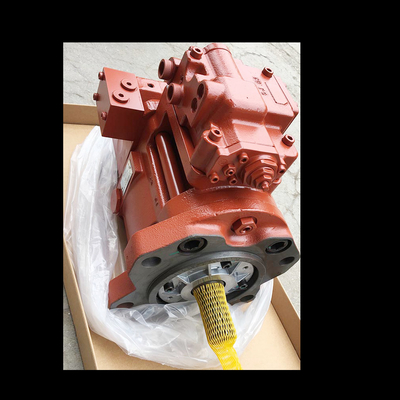

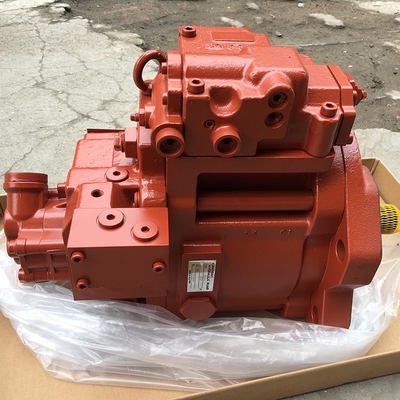

Belparts excavator pompa utama untuk Hitachi EX100-3 EX100M-3 pompa hidrolik 9121198 9133005
Detail Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:EX100-3 EX100M-3
Ukuran kemasan: 84*38*49
Nomor bagian: 9121198 9133005
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | EX100-3 EX100M-3 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 9121198 9133005 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 9121198 | PEMPOM; SINGLE | 1 | ||
| (9133005) | PEMPOM; SINGLE | 1 | ||
| 01 | 1018997 | . Casing; Gear | 1 | |
| 03 | 3063840 | . Gear; PILOT | 1 | |
| 04 | 3055594 | . SHAFT; GEAR | 1 | |
| 05 | 958740 | . BRG.; bola | 2 | |
| 06 | 962002 | . cincin; mempertahankan | 1 | |
| 07 | 991725 | . cincin; mempertahankan | 1 | |
| 10 | . Pompa; Unit | 1 | ||
| 12 | M492564 | . menggeliat; mengemudi | 2 | |
| 13 | 3069415 | . NAME-PLATE | 1 | |
| 14 | 3064810 | . Gear; Drive | 1 | |
| 16 | 4274552 | . cincin; mempertahankan | 1 | |
| 20 | 4314092 | . O-RING | 1 | |
| 21 | M211645 | . BOLT | 4 | |
| 22 | A590916 | . WASHER; SPRING | 4 | |
| 25 | 4310055 | . SEAL; Minyak | 1 | |
| 26 | 991725 | . cincin; mempertahankan | 1 | |
| 28 | 4276918 | . Pompa; Gear | 1 | |
| 30 | M341028 | . BOLT; SOCKET | 2 | |
| 31 | 984054 | . WASHER; SPRING | 2 | |
| 32 | 4114402 | . PEMASAKAN | 2 | |
| 34 | 4317633 | Adaptor | 2 | |
| 36 | 4234782 | . PLUG | 1 | |
| 38 | 4242263 | . Gauge; Tingkat | 1 | |
| 38 | 4340855 | . Gauge; Tingkat | 1 | |
| 39 | 9736788 | . pipa | 1 | |
| 40 | 4243160 | . Pengemasan | 1 | |
| 41 | M340816 | . BOLT; SOCKET | 2 | |
| 42 | 9134111 | . PLUG | 1 | |
| 42A | 4509180 | .. O-ring | 1 | |
| 45 | 4265372 | Sensor, Revolusi. | 1 | |
| 46 | 4306888 | . O-RING | 1 | |
| 47 | A590106 | . WASHER; pesawat | 1 | |
| 48 | M340616 | . BOLT; SOCKET | 1 | |
| 49 | 4252767 | . BRACKET | 1 | |
| 50 | M340613 | . BOLT; SOCKET | 1 | |
| 51 | 4169516 | . WASHER; SPRING | 1 | |
| 52 | 9134110 | . PLUG | 1 | |
| 52A | 957366 | .. O-ring | 1 | |
| 53 | 4278547 | Adaptor | 1 | |
| 53A | 4506418 | .. O-ring | 1 | |
| 55 | 4179837 | . FITNING; pipa | 2 | |
| 55A | 957366 | .. O-ring | 1 | |
| 56 | 3064811 | . pipa | 1 | |
| 57 | 9736515 | . CLAMP | 2 | |
| 58 | J900830 | . BOLT | 1 | |
| 59 | A590908 | . WASHER; SPRING | 1 | |
| 64 | 4310056 | . Penggabungan | 1 | |
| 64A | 4340960 | .. HUB ASSY | 1 | |
| 64B | 4334899 | .. sekrup; SET | 2 | |
| 64C | 4101345 | .. PIN; SPRING | 4 | |
| 64D | 4334892 | .. Masukkan | 4 | |
| 64E | 4334894 | .. BOLT; soket | 4 | |
| 64F | 4334891 | .. Pergaulan | 1 |
