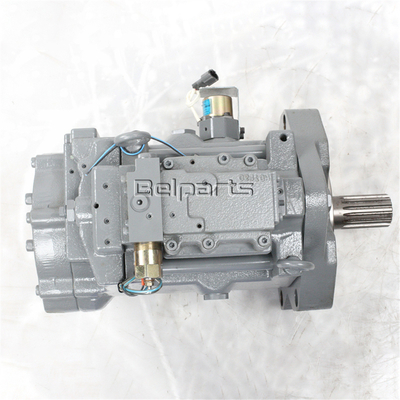

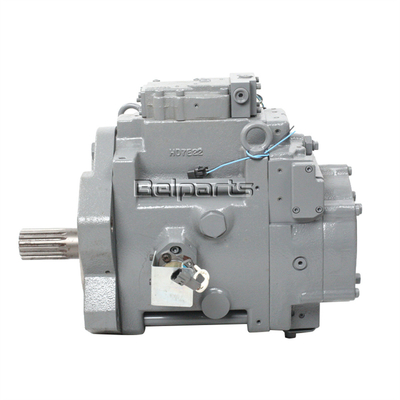

EX1100-3 EX1800-3 pompa hidraulik Bagian Bel excavator pompa utama untuk Hitachi 4394897 4460173 4360727 4396526Aku tidak tahu.
Detail Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:EX1100-3 EX1800-3
Ukuran kemasan: 84*38*49
Nomor bagian: 4394897 4460173 4360727 4396526 4404934 4427292 4451389 4624061
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | EX1100-3 EX1800-3 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 4394897 4460173 4360727 4396526 4404934 4427292 |
| Tekanan | Standar, Tekanan Tinggi |

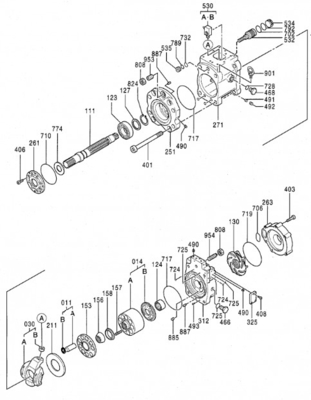

| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 4394897 | Pompa; PISTON | 1 | ||
| 011 | 4312157 | . Piston ASS'Y | 1 | |
| 011A | .. PISTON | 9 | ||
| 011B | .. Sepatu | 9 | ||
| 014 | 0703002 | . Silinder ASS'Y | 1 | |
| 014A | .. BLOCK; CYL. | 1 | ||
| 014B | .. PLATE; Klep | 1 | ||
| 030 | 0694501 | . Lemparan ASS'Y | 1 | |
| 030A | .. PLATE | 1 | ||
| 030B | .. BUSHING | 1 | ||
| 111 | 0682301 | . SHAFT; DRIVE | 1 | |
| 123 | 0682302 | . BRG.; ROL. | 1 | |
| 124 | 0682303 | . BRG.; jarum | 1 | |
| 127 | 0339809 | . SPACEER | 1 | |
| 130 | 0682304 | . Booster | 1 | |
| 153 | 0682305 | . PEMERINTAH | 1 | |
| 156 | 0682306 | . BUSHING | 1 | |
| 157 | 0682307 | . Musim semi | 9 | |
| 158 | 0682308 | . SPACEER | 1 | |
| 211 | 0682309 | . PLATE | 1 | |
| 251 | 0682310 | . Dukungan | 1 | |
| 261 | 0682311 | . COVER | 1 | |
| 263 | 0682312 | . COVER | 1 | |
| 271 | 0682313 | . Casing | 1 | |
| 312 | 0682314 | . COVER | 1 | |
| 325 | 0682315 | . COVER | 1 | |
| 401 | 0682316 | . BOLT; SOCKET | 4 | |
| 403 | 0111530 | . BOLT; SOCKET | 6 | |
| 406 | M340820 | . BOLT; SOCKET | 4 | |
| 408 | 0102411 | . BOLT; SOCKET | 3 | |
| 466 | 0236014 | . PLUG | 2 | |
| 468 | 0175233 | . PLUG | 2 | |
| 490 | 0263019 | . PLUG | 27 | |
| 491 | 0451027 | . sekrup | 2 | |
| 492 | 0451028 | . PLUG | 2 | |
| 493 | 0682317 | . RESTORICTOR | 1 | |
| 530 | 0703017 | . PIN | 1 | |
| 530A | .. PIN | 1 | ||
| 530B | .. PIN | 1 | ||
| 532 | 0682318 | . PISTON; SERVO | 1 | |
| 534 | 0682319 | / Hentikan. | 1 | |
| 535 | 0682320 | / Hentikan. | 1 | |
| 702 | 4292386 | . O-RING | 1 | |
| 706 | 0443413 | . O-RING | 1 | |
| 710 | 0682321 | . O-RING | 1 | |
| 717 | 0682322 | . O-RING | 2 | |
| 719 | 0682323 | . O-RING | 1 | |
| 724 | 0443801 | . O-RING | 10 | |
| 725 | 4297379 | . O-RING | 4 | |
| 728 | 0443408 | . O-RING | 2 | |
| 732 | 0682324 | . O-RING | 1 | |
| 774 | 0682325 | . SEAL; Minyak | 1 | |
| 789 | 0682326 | . cincin; BACK-UP | 1 | |
| 792 | 0682327 | . cincin; BACK-UP | 1 | |
| 808 | 0451038 | . NUT | 2 | |
| 824 | 960323 | . cincin; mempertahankan | 1 | |
| 885 | 0313404 | . PIN | 1 | |
| 887 | 4144353 | . PIN; SPRING | 2 | |
| 901 | 0134458 | . Bolt; mata | 2 | |
| 953 | 0339847 | . sekrup | 1 | |
| 954 | 0682328 | . Sekrup; SET | 1 |
