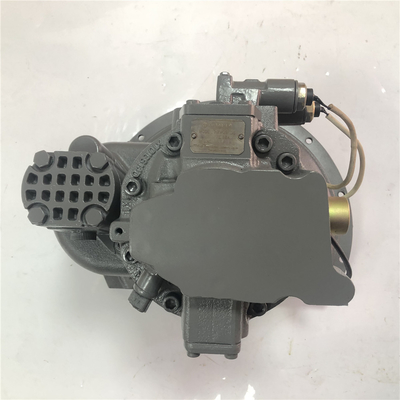

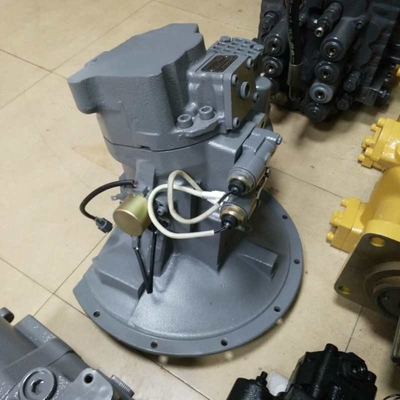

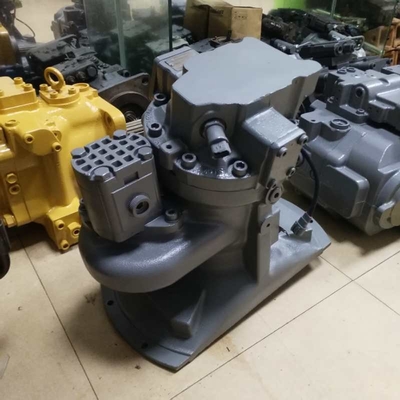

EX100-5 EX110M-5 EX100-5E pompa hidraulik Bagian Bel excavator pompa utama untuk Hitachi 9151412 9152593 9158021 9159228Aku tidak tahu.
Detail Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:EX100-5 EX110M-5 EX100-5E
Ukuran kemasan: 84*38*49
Nomor bagian: 9151412 9152593 9158021 9159228
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | EX100-5 EX110M-5 EX100-5E |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 9151412 9152593 9158021 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 9151412 | Perangkat pompa | 1 | ||
| (9152593) | Perangkat pompa | |||
| 01 | 1022569 | . Casing; Gear | ||
| 03 | 3070066 | . Gear; PILOT | ||
| 04 | 3055594 | . SHAFT; GEAR | ||
| 05 | 958740 | . BRG.; bola | ||
| 06 | 962002 | . cincin; mempertahankan | ||
| 07 | 991725 | . cincin; mempertahankan | ||
| 10 | . Pompa; Unit | 1 | ||
| 12 | M492564 | . menggeliat; mengemudi | 2 | |
| 13 | 3075866 | . NAME-PLATE | 1 | |
| 14 | 3070062 | . Gear | 1 | |
| 15 | 3070063 | . Gear | 1 | |
| 16 | 962002 | . cincin; mempertahankan | ||
| 18 | 4099290 | . PIN; SPRING | ||
| 21 | J901445 | . BOLT | ||
| 22 | A590914 | . WASHER; SPRING | 6 | |
| 23 | 8060011 | . Pengemasan | 1 | |
| 25 | 4340328 | . SEAL; Minyak | 1 | |
| 26 | 930451 | . cincin; mempertahankan | 1 | |
| 28 | 4276918 | . Pompa; Gear | 1 | |
| 30 | M341028 | . BOLT; SOCKET | 2 | |
| 31 | 984054 | . WASHER; SPRING | 2 | |
| 32 | 4114402 | . PEMASAKAN | 2 | |
| 34 | 94-0649 | . siku | 1 | |
| 36 | 4234782 | . PLUG | 1 | |
| 37 | 4242263 | . Gauge; Tingkat | 1 | |
| 39 | 9745521 | . pipa | 1 | |
| 40 | 9742779 | . Pengemasan | 1 | |
| 41 | M340816 | . BOLT; SOCKET | 2 | |
| 43 | 9134111 | . PLUG | 1 | |
| 43A | 4509180 | .. O-ring | 1 | |
| 53 | 4278547 | Adaptor | 1 | |
| 53A | 4506418 | .. O-ring | 1 | |
| 54 | 9134110 | . PLUG | 1 | |
| 54A | 957366 | .. O-ring | 1 | |
| 55 | 4179837 | . FITNING; pipa | ||
| 55 | 4293950 | . siku; S | 2 | |
| 55A | 957366 | .. O-ring | 1 | |
| 56 | 3071962 | . pipa | 1 | |
| 57 | 9736515 | . CLAMP | 2 | |
| 58 | J900830 | . BOLT | 1 | |
| 59 | A590908 | . WASHER; SPRING | 1 | |
| 63 | 4340275 | . Penggabungan | 1 | |
| 63A | 4366376 | .. HUB | 1 | |
| 63B | 4334899 | .. sekrup; SET | 2 | |
| 63C | 4101345 | .. PIN; SPRING | 4 | |
| 63D | 4334892 | .. Masukkan | 4 | |
| 63E | 4334894 | .. BOLT; soket | 4 | |
| 63F | 4334891 | .. Elemen | 1 |
