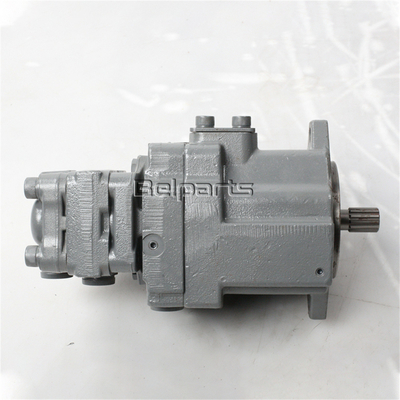

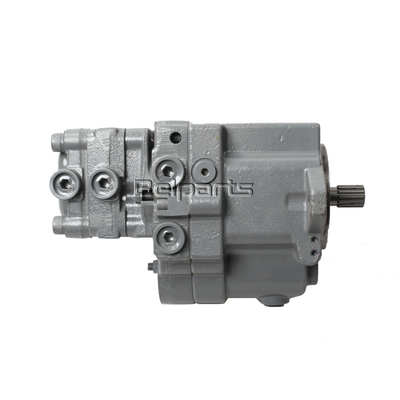

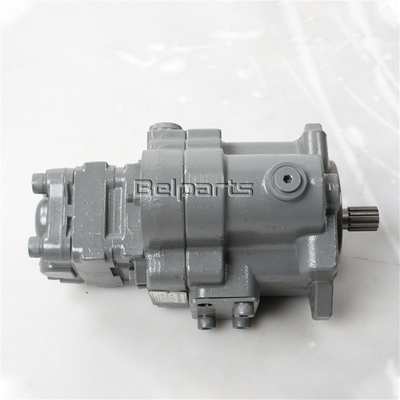

Belparts excavator pompa utama PC10-7 PC15-3 PC20-7 pompa hidrolik 705-41-08070 705-41-03002 705-41-08160 untuk komatsu
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin: PC10-7 PC15-3 PC20-7
Ukuran kemasan: 84*38*49
Nomor bagian: 705-41-08070 705-41-03002 705-41-08160
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | PC10-7 PC15-3 PC20-7 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 705-41-08070 705-41-03002 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 1 | 705-41-08170 | PUMP ASS'Y | 1 | |
| Pertemuan ini terdiri dari semua bagian yang ditampilkan pada gambar.H0210-55A1 sampai H0210-58A1 | ||||
| 1 | 705-41-03140 | Pump ASS'Y (SBR9A) | 1 | |
| 1 | (*705-41-80210) | Braket | 1 | |
| 1 | (*705-40-80620) | BUSHING,PLAINE (DRIVEN SIDE) | 1 | |
| 1 | (*705-40-80610) | BUSHING,PLAINE (DRIVEN SIDE) | 1 | |
| 2 | (*705-41-21010) | CASE, GEAR | 1 | |
| 3 | (*705-41-80310) | Pengangkut | 1 | |
| 3 | (*705-40-80610) | BUSHING,PLAINE (DRIVEN SIDE) | 1 | |
| 3 | (*705-40-80620) | BUSHING,PLAINE (DRIVEN SIDE) | 1 | |
| 4 | (*705-41-21340) | Gear, drive | 1 | |
| 5 | (*705-41-21510) | Gear, DIRI | 1 | |
| 6 | 705-40-83720 | Plat, sisi | 2 | |
| 7 | 705-40-80760 | SEAL, RING | 2 | |
| 8 | 04020-00820 | PIN, DOWEL (Dibeluda) | 4 | |
| 9 | 705-67-01230 | PIN, DOWEL | 2 | |
| 10 | 705-17-02690 | Bolt | 4 | |
| 11 | 01643-51232 | WASHER, (TANPA KEMANDANGAN DAN KEMANDANGAN DAN KEMANDANGAN) | 4 | |
| 12 | 705-40-80870 | Piring | 1 | |
| 13 | 705-40-80810 | Segel poros | 1 | |
| 14 | 04065-03515 | Ring, SNAP | 1 |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
L1 | L | Intet | Outlet | Berat badan (kg) |
|||||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
a | b | a | b | ||||||
| CBF-F410-AL** | 10 | 20 | 25 | 800 | 2500 | 3000 | ) J2 |
55 | 114 | M22×1.5 | 50 | M18×1.5 | 45 | 3.2 |
| CBF-F412.5-AL** | 12.5 | 56.3 | 116.5 | 3.3 | ||||||||||
| CBF-F414-AL** | 14 | 57.3 | 118.5 | 3.4 | ||||||||||
| CBF-F416-AL** | 16 | 58.3 | 120 | M27 × 2 | M22×1.5 | 3.5 | ||||||||
| CBF-F418-AL** | 18 | 600 | 59.5 | 123 | 3.6 | |||||||||
| CBF-F420-AL** | 20 | 93 | 60.5 | 125 | 3.7 | |||||||||
| CBF-F425-AL** | 25 | 63.8 | 131.5 | M33 × 2 | M27×1.5 | 3.8 | ||||||||
| CBF-F432-AL** | 32 | 67.5 | 139 | 4.1 | ||||||||||
| CBF-E440-AL** | 40 | 72 | 148 | 4.4 | ||||||||||
| CBF-E450-AL** | 50 | 72 | 148 | 4.7 | ||||||||||
Produk kami dijual di seluruh dunia. Anda dapat yakin dengan seluruh proses produk kami.
