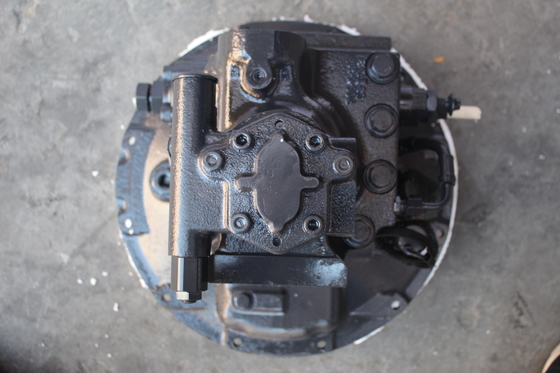

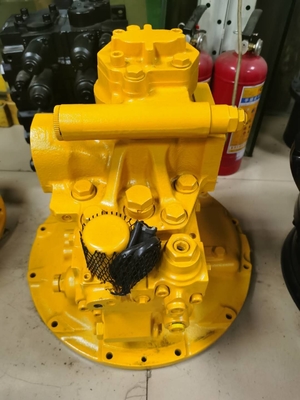

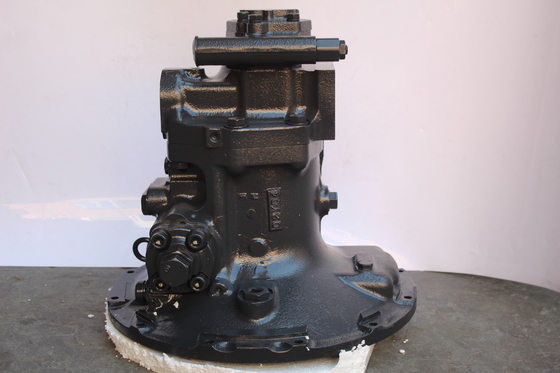

Belparts excavator pompa utama PC100-6 PC120-6 PC130-6 pompa hidrolik 708-1L-00413 708-1L-00412 708-1L-00411 untuk komatsu
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin: PC100-6 PC120-6 PC130-6
Ukuran kemasan: 84*38*49
Nomor Bagian: 708-1L-00413 708-1L-00412 708-1L-00411
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | PC100-6 PC120-6 PC130-6 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 708-1L-00413 708-1L-00412 708-1L-00411 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 1 | 708-1L-00413 | PUMP ASS'Y | 1 | |
| 1 | 708-1L-00412 | PUMP ASS'Y | 1 | |
| 1 | 708-1L-00411 | PUMP ASS'Y | 1 | |
| Pertemuan ini terdiri dari semua bagian yang ditunjukkan pada gambar.Y1600-41A0A sampai Y1600-50A0A | ||||
| 1 | 708-1L-01452 | Pump Sub ASS'Y | 1 | |
| 1 | 708-1L-01451 | Pump Sub ASS'Y | 1 | |
| 1 | 708-1L-01450 | Pump Sub ASS'Y | 1 | |
| 1 | (*708-2L-04340) | Kasus ASSY, depan | 1 | |
| 1 | CA1SE, depan | 1 | ||
| 2 | Plug | 16 | ||
| 3 | 07044-12412 | Plug, Magnetic | 1 | |
| 4 | 708-1W-28910 | O-ring | 1 | |
| 5 | 720-68-19870 | Plug | 1 | |
| 6 | 708-2L-23940 | O-ring | 1 | |
| 7 | 04530-01018 | Bolt, mata | 1 | |
| 8 | 708-8E-16150 | Plug | 3 | |
| 9 | 708-2L-23920 | O-ring | 3 | |
| 10 | 708-8H-11530 | Plug | 2 | |
| 11 | 708-2L-23950 | O-ring | 2 |
Model | Nominal pergeseran (ml/r) | Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) | L1 | L | Berat badan (kg) | |||
Berkualitas | Maksimal | Min | Berkualitas | Maksimal | ||||||
| CBHZ-F23-AL** | 23 | 20 | 25 | 600 | 2500 | 3000 | 92 | 60 | 116 | 4.1 |
| CBHZ-F25-AL** | 25 | 61.5 | 119 | 4.3 | ||||||
| CBHZ-F26.5-AL** | 26.5 | 62.5 | 121 | 4.5 | ||||||
| CBHZ-F28.2-AL** | 28.2 | 63.5 | 123 | 4.6 | ||||||
| CBHZ-F30-AL** | 30 | 64.5 | 125 | 4.8 | ||||||
| CBHZ-F32-AL** | 32 | 65.5 | 127 | 5.0 | ||||||
| CBHZ-F36-AL** | 36 | 68 | 132 | 5.4 | ||||||
