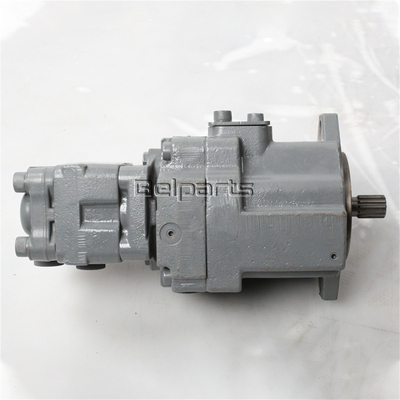

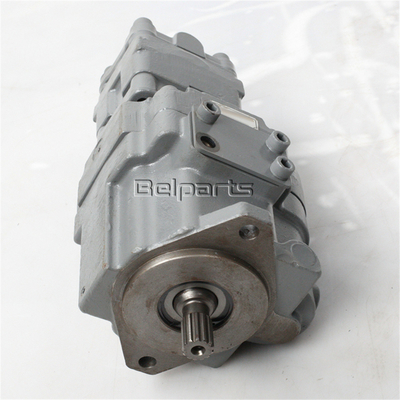

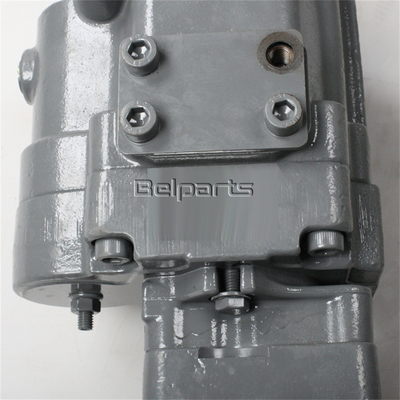

Belparts excavator pompa utama PC20-6 PC30-6 pompa hidrolik 705-41-03001 705-41-08001 untuk komatsu
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin: PC20-6 PC30-6
Ukuran kemasan: 84*38*49
Nomor Bagian: 705-41-03001 705-41-08001
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | PC20-6 PC30-6 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 705-41-03001 705-41-08001 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 1 | 705-41-08001 | PUMP ASS'Y,(SBR(1)-10+10+8) | 1 | |
| 1 | 705-41-03001 | PUMP ASS'Y | 1 | |
| 1 | (*705-41-80210) | Braket | 1 | |
| 1 | (*705-40-80610) | BUSHING,PLAINE (DRIVEN SIDE) | 1 | |
| 1 | (*705-40-80620) | BUSHING,PLAINE (DRIVEN SIDE) | 1 | |
| 2 | (*705-40-22011) | CASE, GEAR | 1 | |
| 3 | (*705-40-80311) | Pengangkut | 1 | |
| 3 | (*705-40-80610) | BUSHING,PLAINE (DRIVEN SIDE) | 1 | |
| 3 | (*705-40-80620) | BUSHING,PLAINE (DRIVEN SIDE) | 1 | |
| 4 | (*705-40-22342) | Gear, drive | 1 | |
| 5 | (*705-40-22511) | Gear, DIRI | 1 | |
| 6 | 705-40-80710 | Piring, sisi | 2 | |
| 7 | 705-40-80730 | RING, BACK UP | 2 | |
| 8 | 705-40-80740 | Cincin, SEAL | 2 | |
| 9 | 705-40-80630 | Cincin, SEAL | 2 | |
| 10 | 705-40-80810 | Segel poros | 1 | |
| 11 | 705-40-80870 | Piring | 1 | |
| 12 | 04065-03515 | Ring, SNAP | 1 | |
| 13 | 01252-31270 | Bolt | 4 | |
| 14 | 01643-51232 | WASHER, (TANPA KEMANDANGAN DAN KEMANDANGAN DAN KEMANDANGAN) | 4 | |
| 15 | 04020-00820 | PIN, DOWEL (Dibeluda) | 4 | |
| 16 | 705-67-01230 | PIN, DOWEL | 2 |
Model |
Nominal pergeseran ((ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
L1 | L2 | L | Berat badan (kg) |
||
Berkualitas |
Maksimal |
Optimum kecepatan |
Jangkauan kecepatan |
|||||||
| CBTLZT-F16/F10-AFP* | 16/10 | 20 | 25 | 1500 ¢2500 | 800 ~ 3000 | 92 | 110 | 189 | 214.5 | 14.5 |
| CBTLZT-F16/F16-AFP* | 16/16 | 196.5 | 222 | 14.8 | ||||||
| CBTLZT-F20/F10-AFP* | 20/10 | 115 | 194 | 219.5 | 14.8 | |||||
| CBTLZT-F20/F16-AFP* | 20/16 | 201.5 | 227 | 15.3 | ||||||
| CBTLZT-F25/F10-AFP* | 25/10 | 121.5 | 200.5 | 226 | 15.2 | |||||
