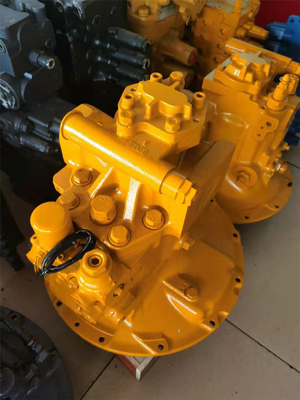

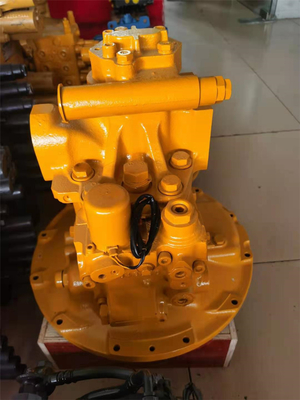

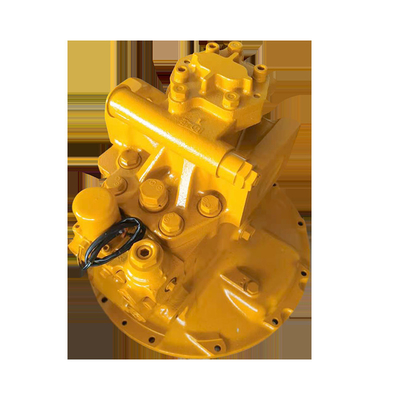

Belparts excavator PC150-3 PC150-5 PC160LC-7 pompa hidrolik 708-25-20100 708-25-04032 708-3M-00020 untuk komatsu
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin: PC150-3 PC150-5 PC160LC-7
Ukuran kemasan: 84*38*49
Nomor Bagian: 708-25-20100 708-25-04032 708-25-04031 708-3M-00020 708-3M-00011
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | PC150-3 PC150-5 PC160LC-7 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 708-25-20100 708-25-04032 708-25-04031 708-3M-00020 708-3M-00011 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 1 | 708-25-04032 | PUMP ASS'Y | 1 | |
| 1 | 708-25-04031 | PUMP ASS'Y | 1 | |
| Perhimpunan ini terdiri dari semua bagian yang ditunjukkan pada gambar.Y1600-01A0 sampai Y1600-15A0 | ||||
| 1 | (708-25-04132) | Pump Sub ASS'Y | 1 | |
| 1 | (708-25-04131) | Pump Sub ASS'Y | 1 | |
| 2 | (708-25-06131) | Servo Valve ASS'Y, depan | 1 | |
| 3 | (708-25-06231) | Servo Valve ASS'Y, belakang | 1 | |
| 4 | 04020-00616 | PIN, ((DOWEL) | 4 | |
| 5 | 708-25-19130 | Bolt | 8 | |
| 6 | 01643-50823 | PEMANAS, ((untuk pengiriman) | 8 | |
| 7 | (704-24-28240) | PUMP ASS'Y | 1 | |
| 8 | 708-25-32730 | Kopling | 1 | |
| 9 | 708-25-22961 | KOLER | 1 | |
| 10 | 704-28-02710 | O-ring | 1 | |
| 11 | 01010-81260 | Bolt, untuk berat badan penyesuaian Bolt | 2 | |
| 12 | 01643-31232 | WASHER, ((BUKAN DIPERgunakan DENGAN STR EMERGENCY) | 2 | |
| 13 | (708-25-04311) | Katup bantuan ASS'Y | 1 | |
| 14 | 708-25-29220 | TEE | 1 | |
| 15 | 07040-11007 | Plug, rumah No.2?3?4?5?6 | 1 | |
| 16 | 07002-01023 | O-RING, ((F4320-61A0 -29)) | 1 | |
| 17 | 07002-02434 | O-Ring, Plug Drain? | 1 | |
| 18 | 708-25-29110 | Selang | 1 | |
| 19 | 07235-10422 | Elbows, ((tidak digunakan ketika (B) SPEC.) | 2 | |
| 20 | 07002-02034 | O-RING, ((BUKAN DIPERCAKAI Dimana (B) SPEC.) | 2 | |
| 21 | 708-25-19120 | Flange | 1 | |
| 22 | 720-68-15240 | Filter | 1 | |
| 23 | 07000-02021 | O-ring, pipa air | 1 | |
| 24 | 01010-80820 | BOLT, WIRING HARNESS MOUNTING BRACKET | 2 | |
| 25 | 01643-50823 | PEMANAS, ((untuk pengiriman) | 2 | |
| 26 | 706-46-53260 | Plug | 2 | |
| 27 | 07002-01423 | O-RING, CRUSHER? LAIN ATT. Untuk PPC CON | 2 | |
| 28 | 708-25-29140 | Tabung | 1 | |
| 29 | 706-46-53180 | Bolt, bersama. | 2 | |
| 30 | 07000-02012 | O-ring, antara katup dan pompa | 4 |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) |
Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
A | Outlet | d | Berat badan (kg) |
|||
Berkualitas |
Maksimal |
Ptimum kecepatan |
Optimum kecepatan |
||||||||
| d | D | ||||||||||
| CBNZQ-F520-BL** | 20 | 20 | 25 | 1500-2500 | 800-3000 | 92 | 48 | 35 | M22×1.5 | 134 | 5.1 |
| CBNZQ-F525-BL** | 25 | 139 | 5.3 | ||||||||
| CBNZQ-F532-BL** | 32 | 93 | 5.6 | ||||||||
| CBNZQ-F540-BL** | 40 | 51 | 44 | M27 × 2 | 144 | 5.9 | |||||
| CBNZQ-F550-BL** | 50 | 151 | 6.3 | ||||||||
| CBNZQ-F563-BL** | 63 | 160 | 6.8 | ||||||||
