| MOQ: | 1 buah |
| harga: | Negotiable price |
| kemasan standar: | pengepakan kayu |
| Periode pengiriman: | 1-5 hari |
| metode pembayaran: | T/T, Paypal dan Jaminan Perdagangan |
| Kapasitas Pasokan: | 1000 buah |

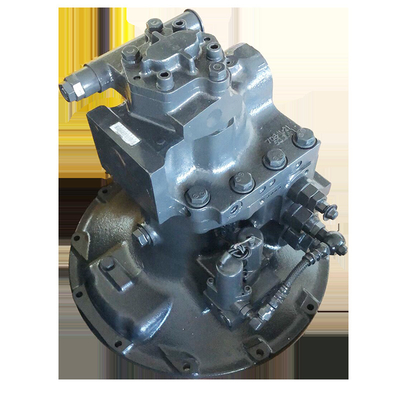

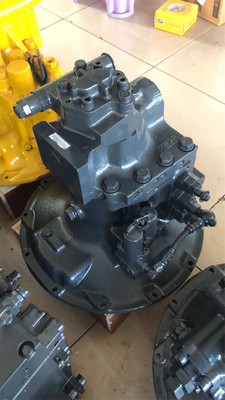

Belparts excavator pompa utama PC100-5 PC120-5 PC130-5 pompa hidrolik 708-23-04014 708-23-04013 708-23-04012 untuk komatsu
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin: PC100-5 PC120-5 PC130-5
Ukuran kemasan: 84*38*49
Nomor bagian: 708-23-04014 708-23-04013 708-23-04012
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | PC100-5 PC120-5 PC130-5 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 708-23-04014 708-23-04013 708-23-04012 |
| Tekanan | Standar, Tekanan Tinggi |

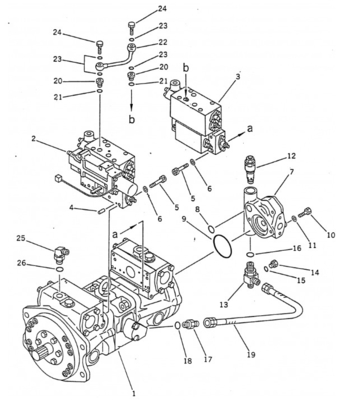

| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| 1 | 708-23-04014 | Pompa ASS'Y,HYDRAULIC (HPV55+55) | 1 | |
| 1 | 708-23-04113 | Pump Sub ASS'Y, hidraulik | 1 | |
| 2 | (708-23-04512) | Klep ASSY, SERVO? | 1 | |
| 3 | (708-23-04612) | Klep ASSY, SERVO? | 1 | |
| 4 | 04020-00616 | PIN, ((DOWEL) | 4 | |
| 5 | 708-25-19130 | Bolt | 8 | |
| 6 | 01643-50823 | PEMANAS, ((untuk pengiriman) | 8 | |
| 7 | (704-24-26401) | PUMP ASS'Y, ((BAR20) | 1 | |
| 8 | 07000-02018 | O-RING, (lihat Gambar 1601-29? 1602-17) | 1 | |
| 9 | 07000-02075 | O-RING, FILTER Minyak Pengemudi | 1 | |
| 10 | 01010-51085 | BOLT, ((untuk kecepatan perjalanan ke-2) (OP) | 3 | |
| 11 | 01643-31032 | WASHER, ((dengan AUTO Emergency Steering) | 3 | |
| 12 | (708-23-04311) | VALVE ASS'Y, RELIEF | 1 | |
| 13 | 708-23-19220 | TEE | 1 | |
| 14 | 07040-11007 | Plug, rumah No.2?3?4?5?6 | 1 | |
| 15 | 07002-01023 | O-RING, ((F4320-61A0 -29)) | 1 | |
| 16 | 07002-02434 | O-Ring, Plug Drain? | 1 | |
| 17 | 07230-10315 | UNION, (untuk Variable Giant Ripper) | 1 | |
| 18 | 07002-02034 | O-RING, ((BUKAN DIPERCAKAI Dimana (B) SPEC.) | 1 | |
| 19 | 07102-20303 | Pengumpulan selang | 1 | |
| 20 | 706-46-53260 | Plug | 2 | |
| 21 | 07002-01423 | O-RING, CRUSHER? LAIN ATT. Untuk PPC CON | 2 | |
| 22 | 708-23-19120 | Tabung | 1 | |
| 23 | 07000-02012 | O-ring, antara katup dan pompa | 4 | |
| 24 | 706-46-53180 | Bolt, bersama. | 2 | |
| 25 | 20S-62-21230 | Lemparan | 1 | |
| 26 | 07002-02434 | O-Ring, Plug Drain? | 1 |
Model |
Nominal pergeseran ((ml/r) Pompa depan Pompa belakang |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik Efisiensi (≥%) Pompa depan Pompa belakang |
L1 | L2 | L | Berat badan (kg) |
|||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
|||||||
| CBHY-G36/F3.5-ATφ* | 36/3.5 | 25/20 | 28/25 | 800 | 2500 | 3000 | 92/85 | 123 | 123 | 205 | 6.8 |
| CBHY-G36/F4.5-ATφ* | 36/4.5 | 92 - 90 | 208 | 7.0 | |||||||
| CBHY-G32/F3.5-ATφ* | 32/3.5 | 92/85 | 118 | 118 | 200 | 6.5 | |||||
| CBHY-G32/F4.5-ATφ* | 32/4.5 | 92 - 90 | 203 | 6.7 | |||||||
| CBHY-G30/F3.5-ATφ* | 30/3.5 | 92/85 | 116 | 116 | 198 | 6.1 | |||||
| CBHY-G30/F4.5-ATφ* | 30/4.5 | 92 - 90 | 201 | 6.4 | |||||||
| CBHY-G28/F3.5-ATφ* | 28/3.5 | 92/85 | 114 | 114 | 196 | 6.1 | |||||
| CBHY-G28/F4.5-ATφ* | 28/4.5 | 92 - 90 | 199 | 6.2 | |||||||
| CBHY-G25/F3.5-ATφ* | 25/3.5 | 92/85 | 110 | 110 | 192 | 5.8 | |||||
| CBHY-G25/F4.5-ATφ* | 25/4.5 | 92 - 90 | 195 | 5.9 | |||||||
