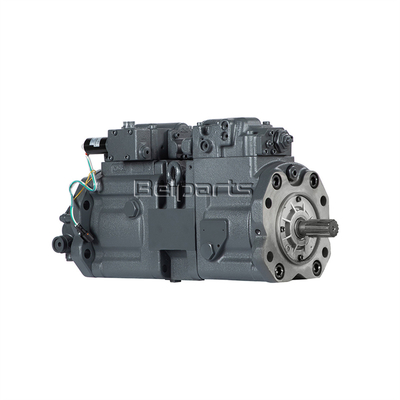

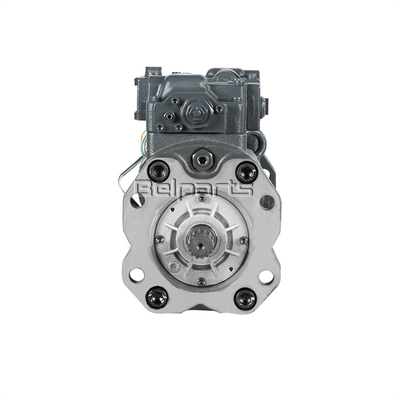

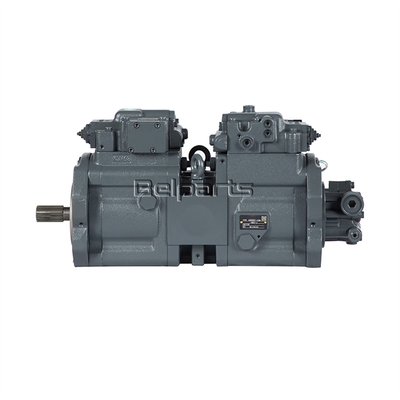

Belparts excavator main pump EC140 EC160 pompa hidraulik untuk SA 1142-05460 SA 8230-14490 VOE 14370950
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:EC140 EC160
Ukuran kemasan: 84*38*49
Nomor Bagian: SA 1142-05460 SA 8230-14490 VOE 14370950
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | EC140 EC160 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | SA 1142-05460 SA 8230-14490 VOE 14370950 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| VOE 14370950 | Pompa hidraulik | 1 | ||
| 1 | VOE 11705583 | Cincin penyegelan | 1 | |
| 2 | VOE 11037342 | Snap Ring lagi | 1 | |
| 3 | VOE 11705584 | Plug | 1 | |
| 4 | VOE 11704818 | Masukkan lagi | 1 | |
| 5 | VOE 11704842 | Kacang | 2 | |
| 6 | VOE 11705607 | O-ring | 1 | |
| VOE 11705608 | Regulator | 1 | ||
| 7 | VOE 11705609 | O-ring | 2 | |
| 8 | VOE 11705610 | Cincin cadangan | 2 | |
| 9 | VOE 11704910 | O-ring | 2 | |
| 10 | VOE 11705611 | Allen Hd Sekrup | 4 | |
| 11 | VOE 11705612 | Plug | 1 | |
| 12 | VOE 11704908 | O-ring | 1 | |
| 13 | VOE 11705595 | Katup kontrol | 1 | |
| 14 | VOE 11705614 | Plug Penutup | 1 | |
| 15 | VOE 11704820 | Plug | 4 | |
| 16 | VOE 11704824 | O-ring | 4 | |
| 17 | VOE 11704818 | Masukkan lagi | 6 | |
| 18 | VOE 11705613 | Nozzle | 1 | |
| 19 | VOE 11704837 | Plug Penutup | 5 | |
| 20 | VOE 11705181 | Katup solenoid Y79 lebih |
1 | |
| 21 | VOE 11705182 | Segel | 1 | |
| 22 | VOE 959185 | Allen Hd Sekrup | 1 | |
| 23 | VOE 11705605 | O-ring | 1 | |
| 24 | VOE 11705600 | O-ring | 3 | |
| 25 | VOE 11705602 | Allen Hd Sekrup | 3 |
Model |
Nominal pergeseran ((ml/r) Pompa depan Pompa belakang |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik Efisiensi (≥%) Pompa depan Pompa belakang |
L1 | L2 | L | Berat badan (kg) |
|||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
|||||||
| CBHY-G36/F3.5-ATφ* | 36/3.5 | 25/20 | 28/25 | 800 | 2500 | 3000 | 92/85 | 123 | 123 | 205 | 6.8 |
| CBHY-G36/F4.5-ATφ* | 36/4.5 | 92 - 90 | 208 | 7.0 | |||||||
| CBHY-G32/F3.5-ATφ* | 32/3.5 | 92/85 | 118 | 118 | 200 | 6.5 | |||||
| CBHY-G32/F4.5-ATφ* | 32/4.5 | 92 - 90 | 203 | 6.7 | |||||||
| CBHY-G30/F3.5-ATφ* | 30/3.5 | 92/85 | 116 | 116 | 198 | 6.1 | |||||
| CBHY-G30/F4.5-ATφ* | 30/4.5 | 92 - 90 | 201 | 6.4 | |||||||
| CBHY-G28/F3.5-ATφ* | 28/3.5 | 92/85 | 114 | 114 | 196 | 6.1 | |||||
| CBHY-G28/F4.5-ATφ* | 28/4.5 | 92 - 90 | 199 | 6.2 | |||||||
| CBHY-G25/F3.5-ATφ* | 25/3.5 | 92/85 | 110 | 110 | 192 | 5.8 | |||||
| CBHY-G25/F4.5-ATφ* | 25/4.5 | 92 - 90 | 195 | 5.9 | |||||||
