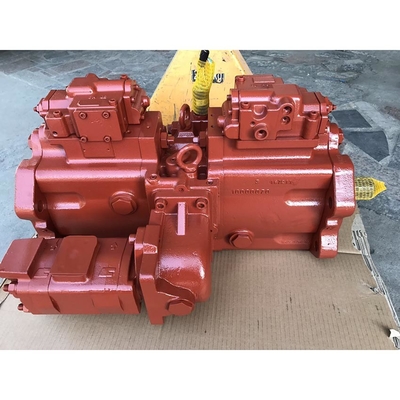

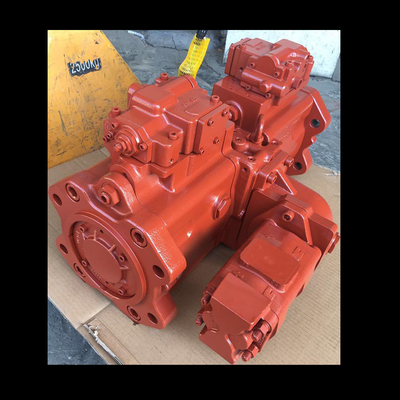

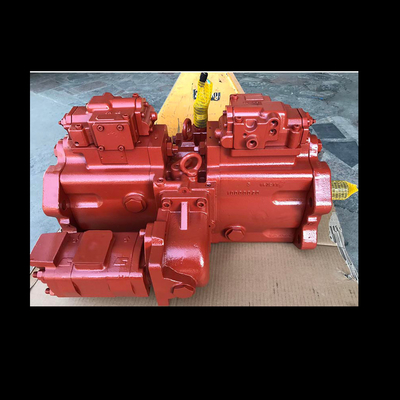

Belparts excavator pompa utama EC340 EC390 EC360 pompa hidraulik VOE 14343531 VOE 14343515 SA 7220-00700
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:EC340 EC390 EC360
Ukuran kemasan: 84*38*49
Nomor bagian: VOE 14343531 VOE 14343515 SA 7220-00700
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | EC340 EC390 EC360 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | VOE 14343531 VOE 14343515 SA 7220-00700 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| VOE 14343531 | Pompa hidraulik | 1 | ||
| 1 | VOE 11704022 | Cincin penyegelan | 1 | |
| 2 | VOE 11701461 | O-ring | 1 | |
| 3 | VOE 951090 | Lebih banyak cincin pengaman | 1 | |
| 4 | VOE 14340607 | Tutup tabung | 2 | |
| 4A | VOE 14211859 | Segel cincin lebih | 2 | |
| 5 | VOE 11702659 | Pengaturan Sekrup | 2 | |
| 6 | VOE 14211725 | Kacang kunci | 2 | |
| 7 | VOE 11703951 | Regulator | 1 | |
| 8 | VOE 11702665 | Plug | 2 | |
| 9 | VOE 4880494 | O-ring lebih | 2 | |
| 10 | VOE 11702666 | Pengaturan Sekrup | 2 | |
| VOE 14023176 | O-ring | 2 | ||
| 11 | VOE 14212124 | Kacang | 2 | |
| 12 | VOE 11702668 | Puting | 1 | |
| 13 | VOE 4880494 | O-ring lebih | 1 | |
| 14 | VOE 11702672 | Plug | 1 | |
| 15 | VOE 11702671 | O-ring | 1 | |
| 16 | VOE 11702670 | Plug | 1 | |
| 17 | VOE 4880494 | O-ring lebih | 1 | |
| 18 | VOE 11702661 | O-ring | 1 | |
| 19 | VOE 11702662 | Cincin penyegelan | 3 | |
| 20 | VOE 14211623 | Tube Plug lebih banyak | 1 | |
| 21 | VOE 14212125 | Tube Plug lebih banyak | 2 | |
| 22 | VOE 14012351 | O-ring 209,14 x 3,53 |
2 | |
| 23 | VOE 14025625 | O-ring 75,87 x 2,62 lebih |
1 | |
| 24 | VOE 11706933 | Adj Washer | 1 | |
| 25 |
VOE 11996380 Mengganti: VOE 14211684 |
Stempel penutupan | 1 |
