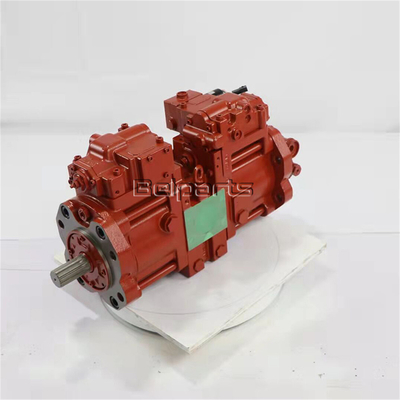

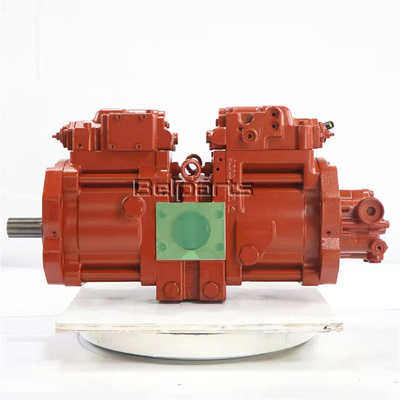

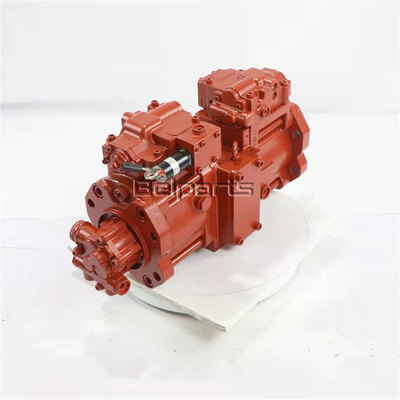

R160LC-3 R160LC-9 Belparts excavator main pump R180LC-9 pompa hidrolik 31Q5-10010 31EG-10010 K3V63DT-1R0R untuk hyundai
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:R160LC-3 R160LC-9 R180LC-9
Ukuran kemasan: 84*38*49
Nomor bagian: 31Q5-10010 31EG-10010 K3V63DT-1R0R
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | R160LC-3 R160LC-9 R180LC-9 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 31Q5-10010 31EG-10010 K3V63DT-1R0R |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31Q5-10010 | Pompa Utama | 1 | |
| *-1 | @ | Pipa injeksi bahan bakar & NOZZLE | 1 | |
| 111 | XJBN-00802 | SHAFT ((F) - DRIVE | 1 | |
| 113 | XJBN-00803 | SHAFT ((R) - DRIVE | 1 | |
| 116 | XJBN-00804 | Gear-1ST | 1 | |
| 123 | XJBN-00429 | Berkas-Roller | 2 | |
| 124 | XJBN-00805 | Jaring bantalan | 2 | |
| 127 | XJBN-00806 | SPACE-LAYER | 4 | |
| S141 | XJBN-00807 | Blok-silinder | 2 | |
| S151 | XJBN-00425 | Piston | 18 | |
| S152 | XJBN-01278 | Sepatu | 18 | |
| 153 | XJBN-00808 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | Sepatu plat | 2 | |
| S212 | XJBN-00419 | Plat-Swash | 2 | |
| S214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | Dukungan | 2 | |
| 261 | XJBN-00809 | COVER-FR | 1 | |
| 271 | XJBN-01046 | Casing-Pump | 2 | |
| 312 | XJBN-00812 | BLOCK-VALVE | 1 | |
| S313 | XJBN-01045 | PLATE ((R) -VALVE | 1 | |
| S314 | XJBN-01044 | PLATE ((L) -VALVE | 1 | |
| S326 | XJBN-00937 | PELUAR | 1 | |
| 401 | XJBN-00411 | PELUANG | 8 | |
| 406 | XJBN-00813 | Screw-HEX S H C | 8 | |
| 414 | XJBN-00160 | SUKIT-SUKIT | 4 | |
| 466 | XJBN-00030 | PLUG | 2 | |
| 467 | XJBN-00487 | PLUG | 4 | |
| 468 | XJBN-00814 | PLUG | 2 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| S531 | XJBN-00815 | PING-TILT | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00816 | STOPPER ((L) | 2 | |
| 535 | XJBN-00405 | STOPPER (S) | 2 | |
| S548 | XJBN-00360 | PIN-feed kembali | 2 | |
| K702 | XJBN-00817 | O-RING | 2 | |
| K710 | XJBN-00387 | O-RING | 1 | |
| K711 | XJBN-00095 | O-RING | 1 | |
| K717 | XJBN-00818 | O-RING | 2 | |
| K719 | XJBN-00819 | O-RING | 2 | |
| K724 | XJBN-00044 | O-RING | 18 | |
| K725 | XJBN-00045 | O-RING | 2 | |
| K727 | XJBN-00233 | O-RING | 2 | |
| K728 | XJBN-00097 | O-RING | 4 | |
| K732 | XJBN-00820 | O-RING | 2 | |
| K774 | XJBN-01029 | SEAL-OIL | 1 | |
| K789 | XJBN-00476 | RING-BACK UP | 2 | |
| K792 | XJBN-00454 | RING BACK-UP | 2 | |
| 808 | XJBN-00101 | NUT-HEX | 4 | |
| 824 | XJBN-00821 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PLAT PIN-VALVE | 2 | |
| 886 | XJBN-00054 | Pin-SPRING | 4 | |
| 901 | XJBN-00104 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00392 | SETUAN SELINGKAP | 2 | |
| 981 | XJBN-00156 | NAME PLATE (Plat Nama) | 1 | |
| 983 | XJBN-00455 | PIN | 2 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4020 |
1 | |
| *-3 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4030 |
1 | |
| 011 | XJBN-01572 | Piston Sub ASSY Lihat ILLUST |
2 | |
| 013 | XJBN-01048 | Silinder Sub ASSY-RH Lihat ILLUST |
1 | |
| 014 | XJBN-01047 | CYLINDER SUB ASSY-LH Lihat ILLUST |
1 | |
| 030 | XJBN-00800 | SWASH PLATE SUB ASSY Lihat ILLUST |
2 | |
| 530 | XJBN-00801 | TILTING PIN SUB ASSY Lihat ILLUST |
2 |
