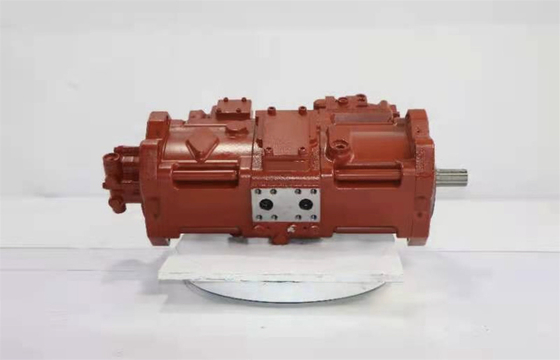

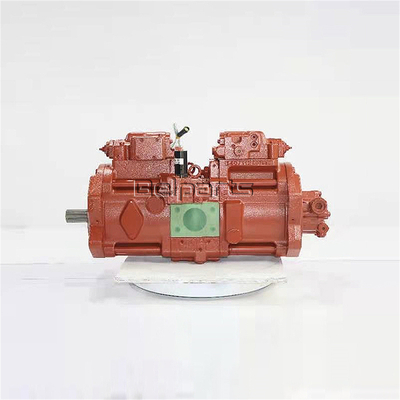

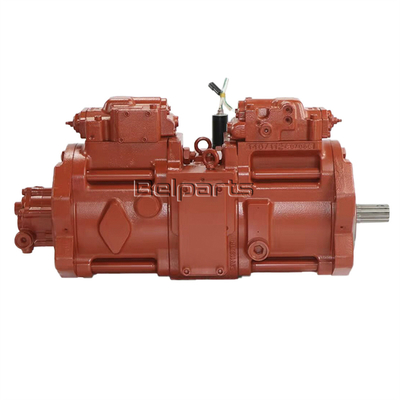

Belparts excavator pompa utama R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9 pompa hidrolik 31Q6-10010 31N6-17010 31Q6-10100
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9
Ukuran kemasan: 84*38*49
Nomor bagian: 31Q6-10010 31N6-17010 31Q6-10100
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 31Q6-10010 31N6-17010 31Q6-10100 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
| * | 31Q6-10010 | Pompa Utama *-1,-2,-3,-4 |
1 | |
| *-1 | @ | Pipa injeksi bahan bakar & NOZZLE | 1 | |
| 111 | XJBN-00077 | SHAFT Penggerak ((F) | 1 | |
| 113 | XJBN-00078 | SHAFT DRIVE ((R) | 1 | |
| 116 | XJBN-01213 | Gear-1ST | 1 | |
| 123 | XJBN-00950 | Berkas-Roller | 2 | |
| 127 | XJBN-00081 | SPACE-LAYER | 4 | |
| NS141 | XJBN-00067 | Blok-silinder | 2 | |
| NS151 | XJBN-01032 | Piston | 18 | |
| NS152 | XJBN-01214 | Sepatu | 18 | |
| 153 | XJBN-00945 | PLATE-SET | 2 | |
| 156 | XJBN-00083 | BUSHING-SFERIK | 2 | |
| 157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00085 | Sepatu plat | 2 | |
| NS212 | XJBN-00070 | Plat-Swash | 2 | |
| S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00086 | Dukungan | 2 | |
| 261 | XJBN-00087 | COVER ((F) - SEAL | 1 | |
| 271 | XJBN-01034 | Casing-Pump | 2 | |
| 312 | XJBN-00940 | BLOCK-VALVE | 1 | |
| NS313 | XJBN-01035 | PEMBALANG PLATE-VALVE ((R) | 1 | |
| NS314 | XJBN-01036 | VALVEL PLATE ((L) | 1 | |
| 326 | XJBN-00937 | PELUAR | 1 | |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 414 | XJBN-00160 | SUKIT-SUKIT | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00936 | PLUG | 2 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 27 | |
| NS531 | XJBN-00358 | PING-TILT | 2 | |
| 532 | XJBN-00955 | PISTON-SERVO | 2 | |
| 534 | XJBN-01037 | STOPPER ((L) | 2 | |
| 535 | XJBN-00093 | STOPPER (S) | 2 | |
| NS541 | XJBN-00859 | SEAT | 4 | |
| NS543 | XJBN-00860 | STOPPER | 2 | |
| NS544 | XJBN-00861 | STOPPER | 2 | |
| S545 | XJBN-00359 | Baja bola | 4 | |
| NS548 | XJBN-00360 | PIN-feed kembali | 2 | |
| 702 | XJBN-00918 | O-RING | 2 | |
| 710 | XJBN-00095 | O-RING | 2 | |
| 717 | XJBN-00096 | O-RING | 4 | |
| 724 | XJBN-00361 | O-RING | 16 | |
| 725 | XJBN-00362 | O-RING | 6 | |
| 726 | XJBN-00233 | O-RING | 2 | |
| 728 | XJBN-00363 | O-RING | 4 | |
| 732 | XJBN-00912 | O-RING | 2 | |
| 774 | XJBN-00962 | SEAL-OIL | 1 | |
| 789 | XJBN-00099 | RING-BACK UP | 2 | |
| 792 | XJBN-00100 | RING BACKUP | 2 | |
| 806 | XJBN-00101 | NUT-HEX | 2 | |
| 808 | XJBN-00364 | NUT | 2 | |
| 824 | XJBN-00102 | RING-SNAP | 2 | |
| 885 | XJBN-00103 | PLAT PIN-VALVE | 2 | |
| 886 | XJBN-00365 | Pin-SPRING | 4 | |
| 901 | XJBN-00104 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SETUAN SELINGKAP | 2 | |
| 954 | XJBN-00106 | SETUAN SELINGKAP | 2 | |
| 981 | XJBN-00156 | NAME PLATE (Plat Nama) | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4020 |
2 | |
| *-3 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4030 |
1 | |
| *-4 | @ | Pipa injeksi bahan bakar & NOZZLE SEE 4040 |
1 | |
| 011 | XJBN-01212 | Piston Sub ASSY Lihat ILLUST |
2 | |
| 013 | XJBN-01040 | Silinder Sub ASSY-RH Lihat ILLUST |
1 | |
| 014 | XJBN-01041 | CYLINDER SUB ASSY-LH Lihat ILLUST |
1 | |
| 030 | XJBN-00069 | SWASH PLATE SUB ASSY Lihat ILLUST |
2 | |
| 041 | XJBN-00072 | Periksa klep ASSY 1 Lihat ILLUST |
2 | |
| 042 | XJBN-00075 | VALVE CEK ASSY 2 Lihat ILLUST |
2 | |
| 530 | XJBN-00366 | SELINGKAP PIN ASSY Lihat ILLUST |
2 |
Model |
Nominal pergeseran ((ml/) Pompa depan Pompa belakang |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik Efisiensi (≥%) Pompa depan Pompa belakang |
d | D | L1 | L2 | L3 | L | Berat badan (kg) |
||
Berkualitas |
Maksimal |
Optimum kecepatan |
Kecepatan rentang |
||||||||||
| CBQLT-F532/F525/F410-AF** | 32/25/10 | 20 | 25 | 1500-2500 | 800-3000 | 92/92/93 | 20 | 25 | 67 | 204.5 | 331.2 | 392 | 17.6 |
| CBQLT-F532/F532/F410-AF** | 40/32/10 | 30 | 69.5 | 212 | 341.5 | 402 | 18.2 | ||||||
| CBQLT-F532/F525/F416-AF** | 40/32/16 | 345 | 409 | 18.5 | |||||||||
| CBQLT-F532/F532/F410-AF** | 50/32/10 | 25 | 73 | 219 | 348.5 | 409 | 18.9 | ||||||
| CBQLT-F532/F532/F416-AF** | 50/32/16 | 352 | 416 | 18.9 | |||||||||
| CBQLT-F532/F540/F410-AF** | 50/40/10 | 221.5 | 353.5 | 414 | 19.2 | ||||||||
| CBQLT-F532/F540/F416-AF** | 50/40/16 | 359 | 423 | 19.9 | |||||||||
Produk kami dijual di seluruh dunia. Anda dapat yakin dengan seluruh proses produk kami.
