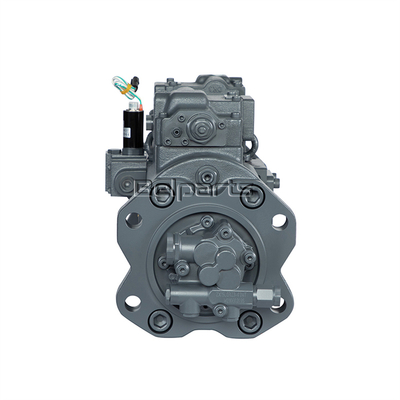

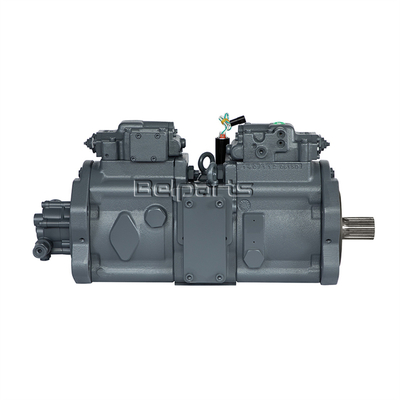

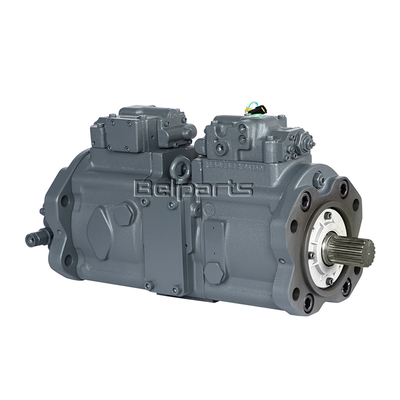

Belparts Excavator pompa utama SOLAR 300LC-7A SOLAR 300LC-V DX300LC pompa hidrolik 401-00424C K1006550 untuk doosan
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:SOLAR 300LC-7A SOLAR 300LC-V DX300LC
Ukuran kemasan: 84*38*49
Nomor Bagian: 401-00424C K1006550
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | SOLAR 300LC-7A SOLAR 300LC-V DX300LC |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 401-00424C K1006550 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Komentar | Qty. | Permintaan harga |
| - | K1006550 | Pompa, utama | 172 kg | 1 | |
| - | K1006550A | Pompa, utama | 189 kg | 1 | |
| - | K1006550B | Pompa, utama | 187 kg | 1 | |
| - | K1006550C | Pompa, utama | 127 kg | 1 | |
| 111 | 1.405-00055 | SHAFT, DRIVE ((F) | 3 kg | 1 | |
| 113 | 1.405-00057 | SHAFT, DRIVE ((R) | 2 kg | 1 | |
| 116 | 1.403-00004 | Gear, 1st | 1 kg | 1 | |
| 123 | 1.109-00111 | Bantalan, Roller | 1 kg | 2 | |
| 124 | 1.109-00055 | Bantalan, jarum | 2 | ||
| 127 | 2.109-00228 | SPACER, BEARING | 3 | ||
| 13 | 1.451-00065 | Silinder ASS ≠ Y (R) | 6 kg | 1 | |
| 13 | K9006419 | Silinder ASS ≠ Y (R) | 6 kg | 1 | |
| 14 | 1.451-00062 | Silinder ASS ≠ Y (L) | 6 kg | 1 | |
| 14 | K9006420 | Silinder ASS ≠ Y (L) | 6 kg | 1 | |
| 11 | K9006418 | PISTON ASS ≠ Y | 2 kg | 2 SET | |
| 153 | 1.412-00098 | PLATE, SET | 2 | ||
| 156 | 1.110-00101 | BUSH, SFERIK | 2 | ||
| 157 | 1.131-00131 | SPRING, CYLINDER | 18 | ||
| 211 | 1.412-00110 | Plat, Sepatu | 1 kg | 2 | |
| 30 | K9001176 | SWAASH PLATE ASS ≠ Y | 2 | ||
| 212 | K9001177 | Plat, SWASH | 1 | ||
| 214 | 2.408-00088 | BUSH, TILTING | 1 | ||
| 80 | K9001178 | Klep pengurangan proporsional | 2 kg | 1 | |
| 79 | K9001179 | Klep E.P.P.R. | 1 | ||
| 79-1 | 2180-1217D13 | O-RING | 1 | ||
| 79-2 | 2180-1217D14 | O-RING | 1 | ||
| 79-3 | 2180-1217D15 | O-RING | 1 | ||
| 325 | 1.402-00097 | Casing, Klep | 2 kg | 1 | |
| 407 | S2205861 | BOLT, HEX SOCKET HEAD | 3 | ||
| 466 | 2181-1950D1 | PULANG, CEK LEBIH | 1 | ||
| 490 | 2.181-00214 | PLUG | 3 | ||
| 725 | S8000115 | O-RING | 4 | ||
| 732 | S8000165 | O-RING | 1 | ||
| 251 | K9001180 | Dukungan | 10 kg | 2 | |
| 261 | 1.430-00213 | COVER, SEAL ((F) | 1 kg | 1 | |
| 271 | 2.423-00114 | Casing, Pump | 16 kg | 2 | |
| 312 | K9001181 | Blok, katup | 24 kg | 1 | |
| 326 | K9001182 | COVER, SEAL ((F) | 1 kg | 1 | |
| 401 | S2229071 | Soket baut | 1 kg | 8 | |
| 406 | S2208871 | BOLT HEX SOCKET HD CL | 4 | ||
| 414 | S2211861 | BOLT, SOCKET M10X1.5X20 | 4 | ||
| 466 | 2181-1950D1 | PULANG, CEK LEBIH | 2 | ||
| 467 | 2181-1950D2 | PULANG, CEK LEBIH | 2 | ||
| 468 | 2181-1950D5 | PULANG, CEK LEBIH | 4 | ||
| 490 | 2.181-00214 | PLUG | 32 | ||
| 530 | 1.123-00089 | TILTING PIN ASS`Y | 2 | ||
| 531 | 1.123-00090 | Pin, miring | 1 | ||
| 548 | 2.123-00154 | PIN, Feed Back | 1 | ||
| 532 | 1.409-00209 | Piston | 1 kg | 2 | |
| 534 | 1.416-00020 | STOPPER ((L) | 2 | ||
| 535 | 1.416-00021 | STOPPER (S) | 2 | ||
| 41 | K9001183 | VALVE CEK ASS ≠ Y (1) | 2 | ||
| 541 | K9001184 | SEAT | 2 | ||
| 543 | K9001185 | STOPPER, 1 | 2 | ||
| 545 | S6250132 | Bola, baja | 2 | ||
| 42 | K9001186 | VALVE CEK ASS ≠ Y (2) | 2 | ||
| 541 | K9001184 | SEAT | 2 | ||
| 544 | K9001187 | STOPPER, 1 | 2 | ||
| 545 | S6250132 | Bola, baja | 2 | ||
| 702 | S8010355 | O-RING G35 | 2 | ||
| 710 | S8010955 | O-RING | 2 | ||
| 717 | S8011455 | O-RING | 4 | ||
| 724 | S8000085 | O-RING P8 | 16 | ||
| 725 | S8000115 | O-RING | 4 | ||
| 726 | S8000145 | O-RING | 2 | ||
| 728 | S8000245 | O-RING | 4 | ||
| 732 | S8000185 | O-RING | 2 | ||
| 774 | K9001188 | SEAL, Minyak | 1 | ||
| 789 | S8060181 | RING BACK UP ((GN04080A0)JI) | 1BP18 | 2 | |
| 792 | S8090350 | RING, BACK-UP | 2 | ||
| 806 | S4012931 | NUT HEX | 2 | ||
| 808 | S4015130 | NUT, HEX | 2 | ||
| 824 | S6500400 | Ring, RETENING | 2 | ||
| 885 | 2.123-00067 | PIN, PLAT Klep | 2 | ||
| 886 | S5740870 | PIN, SPRING | 4 | ||
| 901 | S3140025 | Bolt, mata | 2 | ||
| 953 | S3527906 | Screw, SET | 2 | ||
| 954 | 1.120-00071 | Sekrup, penyesuaian | 2 | ||
| * | K9001195 | SEAL KIT, PUMP | 1 |
