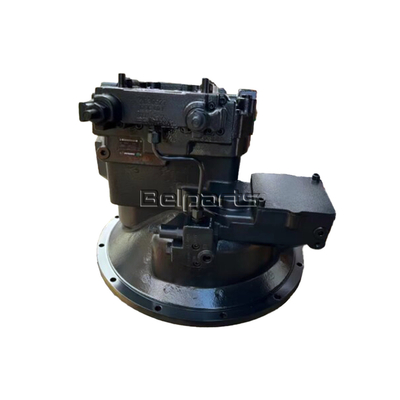

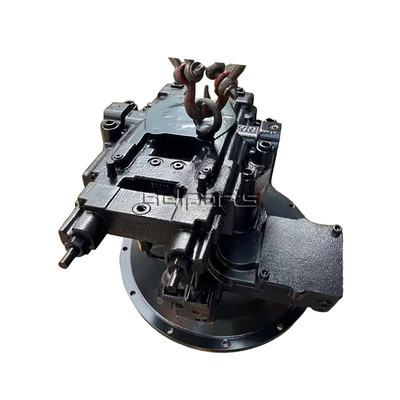

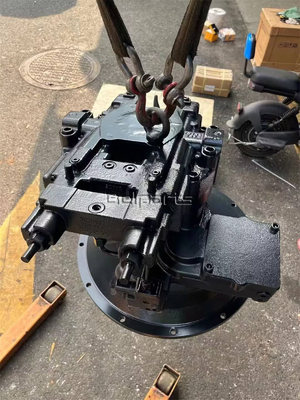

Belparts excavator pompa utama DX380LC SOLAR 330LC-V pompa hidrolik K1004523B 2401-9261 untuk doosan
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:DX380LC SOLAR 330LC-V
Ukuran kemasan: 84*38*49
Nomor Bagian: K1004523B 2401-9261
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | DX380LC SOLAR 330LC-V |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | K1004523B 2401-9261 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Komentar | Qty. | Permintaan harga |
| - | K1004523B | Pompa, utama | 187 kg | 1 | |
| 1 | *NA00911 | Pompa | 1 | ||
| 2 | K9002830 | Kontrol, pompa | 60 kg | 1 | |
| 6 | K9001906 | Pelat Pelat dengan katup | 2 kg | 1 | |
| 7 | K9001907 | pipa ASS'Y | 1 | ||
| 7A | 2.180-00472 | O-RING | 2 |
Model |
Nominal pergeseran (ml/r) |
Tekanan ((MPa) | Kecepatan ((r/menit) | Volumetrik efisiensi (≥%) |
L1 | L | Intet | Outlet | Berat badan (kg) |
|||||
Berkualitas |
Maksimal |
Min |
Berkualitas |
Maksimal |
a | b | a | b | ||||||
| CBF-F410-AL** | 10 | 20 | 25 | 800 | 2500 | 3000 | ) J2 |
55 | 114 | M22×1.5 | 50 | M18×1.5 | 45 | 3.2 |
| CBF-F412.5-AL** | 12.5 | 56.3 | 116.5 | 3.3 | ||||||||||
| CBF-F414-AL** | 14 | 57.3 | 118.5 | 3.4 | ||||||||||
| CBF-F416-AL** | 16 | 58.3 | 120 | M27 × 2 | M22×1.5 | 3.5 | ||||||||
| CBF-F418-AL** | 18 | 600 | 59.5 | 123 | 3.6 | |||||||||
| CBF-F420-AL** | 20 | 93 | 60.5 | 125 | 3.7 | |||||||||
| CBF-F425-AL** | 25 | 63.8 | 131.5 | M33 × 2 | M27×1.5 | 3.8 | ||||||||
| CBF-F432-AL** | 32 | 67.5 | 139 | 4.1 | ||||||||||
| CBF-E440-AL** | 40 | 72 | 148 | 4.4 | ||||||||||
| CBF-E450-AL** | 50 | 72 | 148 | 4.7 | ||||||||||
