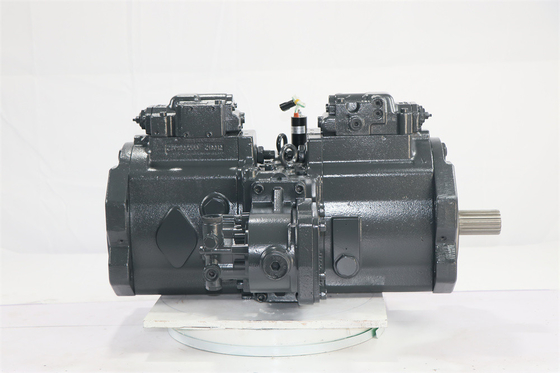

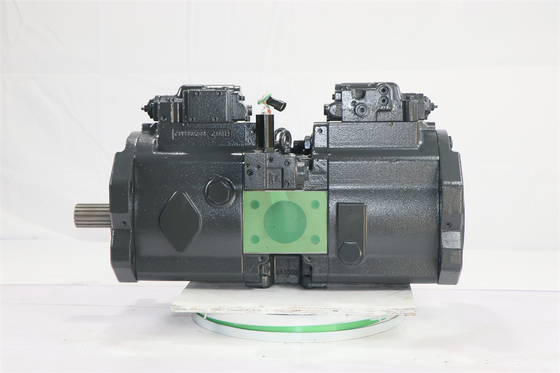

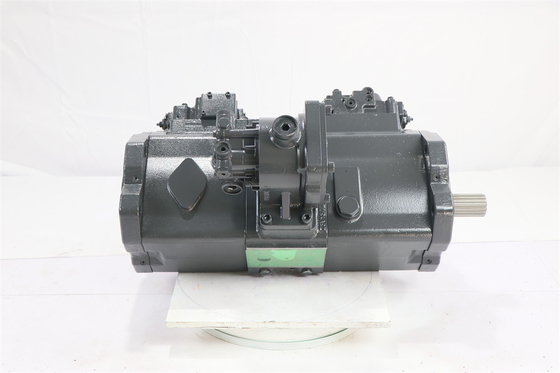

Belparts excavator pompa utama SOLAR 400LC SOLAR 450LC pompa hidrolik 2401-9165 401-00040A 401-00040B 2401-9200 untuk doosan
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:SOLAR 400LC SOLAR 450LC
Ukuran kemasan: 84*38*49
Nomor bagian: 2401-9165 401-00040A 401-00040B 2401-9200
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | SOLAR 400LC SOLAR 450LC |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 2401-9165 401-00040A 401-00040B 2401-9200 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Komentar | Qty. | Permintaan harga |
| 732 | 220017 | O-RING | 2 | ||
| 774 | 212232 | SEAL, Minyak | 1 | ||
| 789 | 228758 | 200091 B/UP RING | 2 | ||
| 792 | 228757 | RING, BACK-UP | 2 | ||
| 808 | 102048 | NUT=ORMN20 | 4 | ||
| 824 | 212282 | Ring, SNAP | 2 | ||
| 885 | 113715 | PIN=PJR1014 | 2 | ||
| 886 | 200678 | PIN, SPRING D6X14 | 2 kg | 5 | |
| 901 | 212286 | Bolt, mata | 2 | ||
| 953 | 119078 | SET skru. | 2 | ||
| 954 | 135303 | Sekrup, penyesuaian | 2 | ||
| * | 2401-9165KT | O-ring kit, pompa utama | 1 SET | ||
| - | 401-00040A | Pompa Utama | 1 | ||
| - | 401-00040B | Pompa Utama | 127 kg | 1 | |
| 4 | 719213 | Pump ASSY, Gear | 2 kg | 1 | |
| 11 | 715583A | Piston ASS'Y | 3 kg | 2 SET | |
| 127 | 113683A | SPACER, BEARING | 3 | ||
| 130 | 135196 | Booster | 1 kg | 1 | |
| 153 | 115787 | Plat, dorong | 2 | ||
| 151 | 129871B | . Piston | 9 | ||
| 152 | 129995 | . Sepatu | 9 | ||
| 13 | 715584-PH | CYL BLOCK ASS'Y(R) | 9 kg | 1 | |
| 12 | 129873A | BLOCK, CYL'D | 8 kg | 1 | |
| 313 | 129869 | PLATE, VALVE ((R) | 1 kg | 1 | |
| 14 | 715585-PH | CYL BLOCK ASS'Y(L) | 9 kg | 1 | |
| 12 | 129873A | BLOCK, CYL'D | 8 kg | 1 | |
| 314 | 129870 | PLATE, VALVE ((L) | 1 | ||
| 30 | 717010 | SWAASH PLATE ASS'Y | 2 | ||
| 212 | 113690-1 | Plat, SWASH | 4 kg | 2 | |
| 214 | 218551 | BUSH, TILTING | 2 | ||
| 111 | 135198 | SHAFT, DRAWING ((R) | 3 kg | 1 | |
| 113 | 135197 | SHAFT, DRAWING ((F) | 5 kg | 1 | |
| 114 | 135199 | PEMANGGUNGAN, SPLINE | 1 | ||
| 123 | 225681 | Bantalan, Roller | 2 | ||
| 124 | 232116 | Bantalan, jarum | 2 | ||
| 156 | 121438 | BUSH, SFERIK | 2 | ||
| 157 | 134537 | SPRING, CYLINDER | 18 | ||
| 158 | 130681A | SPACER (L) | 2 | ||
| 211 | 113691 | Plat, Sepatu | 1 kg | 2 | |
| 251 | 113689A | Dukungan | 14 kg | 2 | |
| 261 | 113681 | COVER, SEAL ((F) | 1 kg | 1 | |
| 271 | 113696B | Casing, Pump | 2 | ||
| 311 | 135353 | COVER, VALVE ((F) | 1 | ||
| 312 | 135354 | COVER, VALVE ((R) | 21 kg | 1 | |
| 401 | 113714 | BOLT, SOCKET M20X2.5X235 | 1 kg | 4 | |
| 402 | 135275 | BOLT, HEX SOCKET | 1 kg | 4 | |
| 406 | 200846 | BOLT, HEX SOCKET HEAD | 4 | ||
| 466 | 108844 | PLUG, VP | 4 | ||
| 468 | 108847 | PLUG PF3/4 | 4 | ||
| 490 | 224308 | PLUG | 30 | ||
| 492 | 108064 | PLUG PT1/8B ((SINKAGE) | 1 | ||
| 530 | 717007 | TILTING PIN ASS'Y | 2 | ||
| 531 | 115793 | PIN, judul | 1 | ||
| 548 | 113380 | PIN, umpan balik | 1 | ||
| 532 | 113687 | PISTON, SERVO | 2 | ||
| 534 | 113684 | STOPPER ((L) | 2 | ||
| 535 | 113688 | STOPPER (S) | 2 | ||
| 702 | 220020 | O-RING ((1BG40) | 2 | ||
| 706 | 201670 | O-RING ((1BG-60) | 1 | ||
| 710 | 201631 | O-RING 1BG105 | 1 | ||
| 717 | 212281 | O-RING | 2 | ||
| 719 | 212284 | O-RING | 3 | ||
| 724 | 201765 | O-RING 1BP8 | 15 | ||
| 725 | 201689 | O-RING 1BP11 | 10 | ||
| 728 | 201721 | O-RING 1BP24 | 4 |
