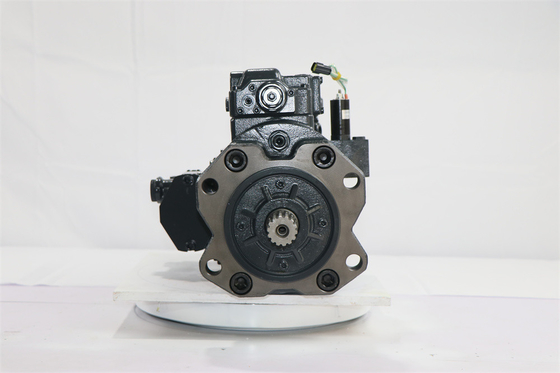

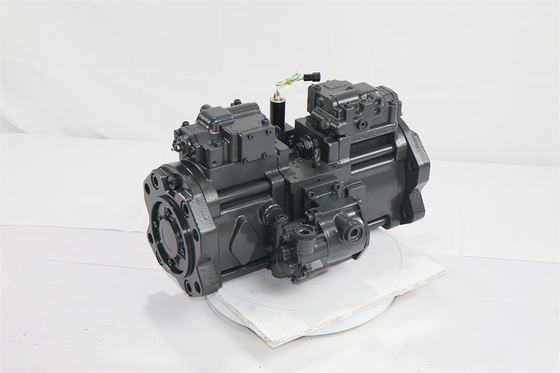

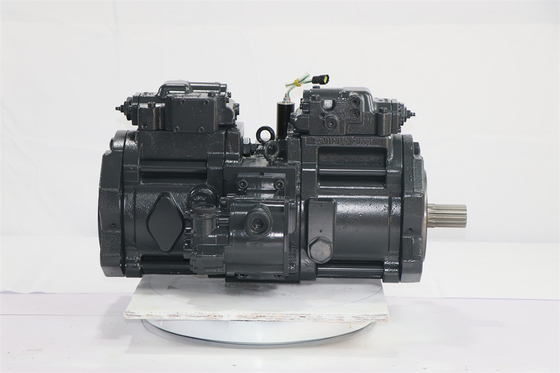

Belparts excavator pompa utama SOLAR 220LC SOLAR 220LC-6 pompa hidrolik 2401-9225 2401-9158 2401-9303 untuk doosan
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin: SOLAR 220LC SOLAR 220LC-6
Ukuran kemasan: 84*38*49
Nomor Bagian: 2401-9225 2401-9158 2401-9303
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | SOLAR 220LC SOLAR 220LC-6 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 2401-9225 2401-9158 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Komentar | Qty. | Permintaan harga |
| 325 | 120592 | Casing, Klep | 1 | ||
| 401 | 113797 | BOLT, HEX SOCKET HEAD | 8 | ||
| 406 | 200846 | BOLT, HEX SOCKET HEAD | 4 | ||
| 469 | 108848 | PLUG ((PF3/8) | 2 | ||
| 490 | 224308 | PLUG | 21 | ||
| * | 717005 | TILTING PIN ASS'Y | 2 | ||
| 407 | 200838 | BOLT, SOCKET M6X1.0X65 | 3 | ||
| 468 | 108847 | PLUG PF3/4 | 3 | ||
| 531 | 113807 | Pin, miring | 1 | ||
| 548 | 113380 | PIN, umpan balik | 1 | ||
| 532 | 113798 | PISTON, SERVO | 2 | ||
| 534 | 113799 | STOPPER ((L) | 2 | ||
| 535 | 113800 | STOPPER (S) | 2 | ||
| * | 704550A | CEK 1 ASS'Y | 2 | ||
| 541 | 113706 | SEAT | 2 | ||
| 543 | 113705 | STOPPER ((1) | 2 | ||
| 545 | 200166 | Bola, baja | 2 | ||
| * | 704544A | CEK 2 ASS'Y | 2 | ||
| 541 | 113706 | SEAT | 2 | ||
| 544 | 113703 | Stopper 2 | 2 | ||
| 545 | 200166 | Bola, baja | 2 | ||
| 702 | 220019 | O-RING 1BG35 | 2 | ||
| 710 | 204452 | O-RING 1BG95 | 2 | ||
| 717 | 201639 | O-RING 1BG145 | 4 | ||
| 724 | 201765 | O-RING 1BP8 | 16 | ||
| 725 | 201689 | O-RING 1BP11 | 5 | ||
| 726 | S8000141 | O-RING | 1BP14 | 2 | |
| 728 | 201721 | O-RING 1BP24 | 3 | ||
| 732 | 220016 | O-RING 1BP18 | 3 | ||
| 774 | 212231 | SEAL, OIL TCV40V | 1 | ||
| 789 | 203480 | RING, BACK-UP T2P18 | 2 | ||
| 792 | 203418 | RING, BACK-UP T2G45 | 2 | ||
| 806 | 201557 | NUT, HEX (ORNM16) | 2 | ||
| 808 | 102048 | NUT=ORMN20 | 2 | ||
| 824 | 202606 | Ring, Snap C-40S | 2 | ||
| 885 | 113801 | PIN D8X12L | 2 | ||
| 886 | 200678 | PIN, SPRING D6X14 | 2 kg | 2 | |
| 901 | 212033 | Bolt, mata | 2 | ||
| 953 | 118892 | SET M16X30L | 2 | ||
| 954 | 113803 | SURUT, SEPATUH | 2 | ||
| * | 2401-9225KT | SEAL KIT, BODY + REG. | 1 | ||
| - | 2401-9225 | Pompa | 1 | ||
| - | 2401-9225A | Pompa | 1 | ||
| - | 2401-9225B | Pompa | 1 | ||
| - | 2401-9225C | Pompa, utama | 128 kg | 1 | |
| 79 | 707847 | Klep, ELECTRO PROPORSIONAL | 1 | ||
| 111 | 124568 | SHAFT, DRIVING ((F) | 1 | ||
| 113 | 124569 | SHAFT, DRIVING ((R) | 2 kg | 1 | |
| 114 | 113783 | PEMANGGUNGAN, SPLINE | 1 | ||
| 123 | 219362 | Bantalan, Roller | 2 | ||
| 124 | 219363 | Berbagai jenis bantalan | 2 | ||
| 127 | 113784 | Berbagai jenis bantalan | 4 | ||
| * | 704545-PH | CYLINDER ASS'Y(R) | 1 | ||
| 141 | 113804 | Blok, silinder | 6 kg | 1 KIT | |
| 313 | 115798 | PLATE, VALVE ((R) | 1 | ||
| * | 704548-PH | CYLINDER ASS'Y(L) | 1 | ||
| 141 | 113804 | Blok, silinder | 6 kg | 1 KIT | |
| 314 | 115799 | PLATE, VALVE ((L) | 1 | ||
| * | 704543A | Piston & Shoe ASS'Y | 2 SET | ||
| 151 | 113778 | Piston | 18 | ||
| 152 | 113779 | Sepatu, jejak | 18 | ||
| 153 | 115786 | Plat, dorong | 2 | ||
| 156 | 121437 | BUSH, SFERIK | 2 | ||
| 157 | 113787 | SPRING, CYLINDER | 18 | ||
| 158 | 113789 | SPACER | 2 | ||
| 211 | 113790 | Plat, Sepatu | 2 | ||
| * | 717008 | SWAASH PLATE ASS'Y | 2 | ||
| 212 | 113780 | Plat, SWASH | 1 | ||
| 214 | 113624 | BUSH, TILTING | 1 | ||
| 250 | 718424 | KIT DUKUNGAN | 1 | ||
| 251 | 113791 | Dukungan | 2 | ||
| 261 | 113792 | COVER, SEAL ((F) | 1 kg | 1 | |
| 271 | 113794 | Casing, Pump | 2 | ||
| 310 | 707849 | KIT BLOCK VALVE | 21 kg | 1 | |
| 312 | 113795 | Blok, katup | 1 |
