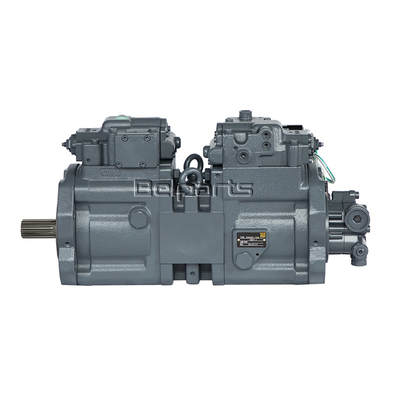

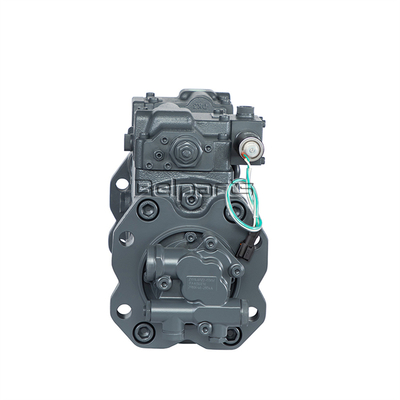

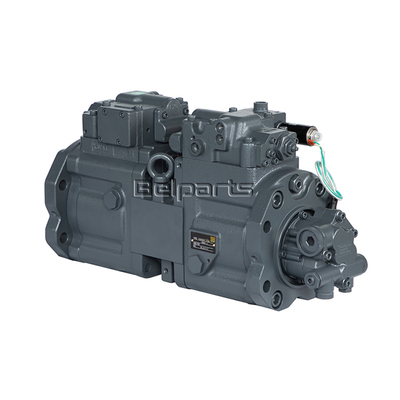

Belparts excavator pompa utama SOLAR155LC SOLAR140LC SOLAR150LC SOLAR130LC DH150LC-7 pompa hidrolik 2401-9236B untuk doosan
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:SOLAR155LC SOLAR140LC SOLAR150LC SOLAR130LC DH150LC-7
Ukuran kemasan: 84*38*49
Nomor Bagian: 2401-9236B
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | SOLAR155LC SOLAR140LC SOLAR150LC SOLAR130LC DH150LC-7 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 2401-9236B |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Komentar | Qty. | Permintaan harga |
| * | 2401-9236AKT | SEAL KIT, PUMP | 1 | ||
| - | 2401-9236B | Pompa Utama | 85 kg | 1 | |
| 111 | 113446A | SHAFT, DRIVE ((FRONT) | 1 | ||
| 113 | 120413 | SHAFT, DRIVE ((BACK) | 1 kg | 1 | |
| 114 | 113448 | PEMANGGUNGAN, SPLINE | 1 | ||
| 123 | 212031 | Bantalan, Roller | 2 | ||
| 124 | 212032 | Bantalan, jarum | 2 | ||
| 127 | 113449A | SPACER, BEARING | 4 | ||
| 141 | 704212-PH | Blok silinder ASS'Y(R.H.) | 1 | ||
| 142 | 704237-PH | Blok silinder ASS'Y ((L.H) | 1 | ||
| 151 | 704203 | Piston & Shoe ASS'Y | 2 | ||
| 153 | 113452 | Plat, dorong | 2 | ||
| 156 | 113453 | BUSH, SFERIK | 2 | ||
| 157 | 113454 | SPRING, CYLINDER | 18 | ||
| 158 | 113455 | SPACER | 2 | ||
| 211 | 113424A | Plat, Sepatu | 2 | ||
| 212 | 718420 | SWAASH PLATE ASS'Y | 2 | ||
| 250 | 718423 | Dukungan & SWASH | 2 | ||
| 251 | 113425A | Dukungan, SWASH | 2 | ||
| 261 | 113426 | COVER, SEAL ((F) | 1 | ||
| 271 | 113428B | Casing, Pump | 2 | ||
| 310 | 704208 | Blok katup ASS'Y | 1 | ||
| 312 | 113429A | Blok, katup | 1 | ||
| 314 | 120412 | PLATE, VALVE ((L.H.) | 1 | ||
| 401 | 113386 | BOLT, HEX SOCKET HEAD | 8 | ||
| 406 | 205517 | BOLT, HEX SOCKET HEAD | 4 | ||
| 467 | 108843 | PLUG, VP | 3 | ||
| 469 | 108848 | PLUG ((PF3/8) | 2 | ||
| 490 | 211665 | Pengembang | 15 | ||
| 530 | 718417 | TILTING PIN ASS'Y | 2 | ||
| 531 | 113379 | Pin, miring | 2 | ||
| 532 | 113381 | PISTON, SERVO | 2 | ||
| 534 | 113382 | STOPPER ((L) | 2 | ||
| 535 | 113383 | STOPPER ((R) | 2 | ||
| 548 | 113380 | PIN, umpan balik | 2 | ||
| 702 | 201658 | O-RING (1BG-30) | 2 | ||
| 710 | 201675 | O-RING 1BG85 | 2 | ||
| 717 | 201634 | O-RING 1BG-120 | 2 | ||
| 719 | 201633 | O-RING 1BG-115 | 2 | ||
| 724 | 201765 | O-RING 1BP8 | 18 | ||
| 726 | 201700 | O-RING 1BP14 | 2 | ||
| 728 | 201710 | O-RING 1BP18 | 3 | ||
| 732 | 201706 | O-RING 1BP16 | 2 | ||
| 774 | 212029 | SEAL, Minyak | 1 | ||
| 789 | 208454 | RING, BACK-UP | 5 kg | 2 | |
| 792 | 200034 | RING, BACK-UP | 2 | ||
| 808 | 201557 | NUT, HEX (ORNM16) | 4 | ||
| 824 | 202604 | Ring, SNAP | 2 | ||
| 885 | 216516 | PIN, 6X12 | 2 | ||
| 886 | 200678 | PIN, SPRING D6X14 | 2 kg | 4 | |
| 901 | 212033 | Bolt, mata | 2 | ||
| 953 | 211227 | SET, SCREW | 2 | ||
| 954 | 113388 | Sekrup, penyesuaian | 2 |
