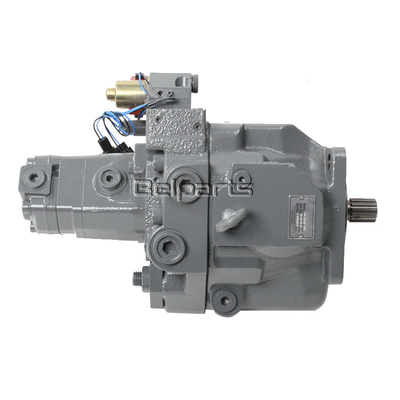

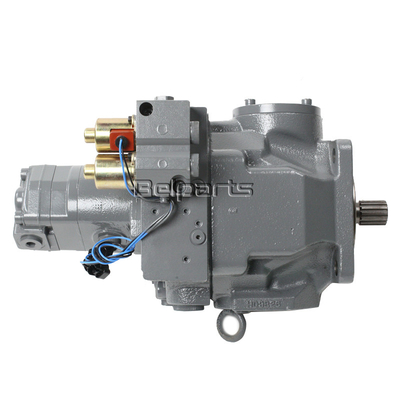

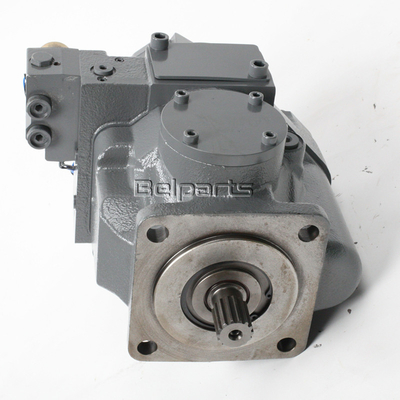

Belparts excavator pompa utama SOLAR 75 DX80R DH80 pompa hidrolik 401-00327 02428571 4100379629 untuk doosan
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:SOLAR 75 DX80R DH80
Ukuran kemasan: 84*38*49
Nomor Bagian: 401-00327 02428571 4100379629
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | SOLAR 75 DX80R DH80 |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 401-00327 02428571 4100379629 |
| Tekanan | Standar, Tekanan Tinggi |
| # | Bagian No. | Nama Bagian | Komentar | Qty. | Permintaan harga |
| 1 | K9009719 | SHAFT ASS'Y | 2 kg | 1 | |
| 1A | K9009720 | SHAFT ASS'Y | 2 kg | 1 | |
| 1B | 2.423-00071 | CA1SE, SEAL | 1 | ||
| 1C | 2.109-00082 | Keterangan: | 1 | ||
| 1D | S6500350 | Ring, RETENING | 2 | ||
| 1E | 2.180-00852 | OIL SEAL ((35*52*6) -9231 | 1 | ||
| 1F | 2180-1216D87 | O-RING, PUMP | 1 | ||
| 1G | S6510800 | Ring, RETENING | 1 | ||
| 2 | K9009721 | SWAASH PLATE ASS'Y | 3 kg | 1 | |
| 3 | K9009722 | ROTARY GROUP | 5 kg | 1 | |
| 4 | K9009723 | Pelat PORT ASS'Y | 20 kg | 1 | |
| 5 | K9009724 | KONTROL SPRING ASS'Y | 1 | ||
| 6 | K9009725 | Kontrol piston ASS'Y | 1 | ||
| 7 | K9009726 | Pump ASSY, Gear | 3 kg | 1 | |
| 8 | K9009727 | Perumahan | 1 | ||
| 9 | 2.421-00061 | Katup, Air Breather | 1 | ||
| 10 | 2.408-00026 | BUSHING | 1 | ||
| 11 | K9009728 | Bola baja | 1 | ||
| 12 | 2.181-00221 | PLUG | 1 | ||
| 13 | 2.181-00333 | PLUG | 1 | ||
| 14 | 2.180-00622 | Pengemasan (UCD9148) | 1 | ||
| 15 | K9009729 | SHIM | 1 | ||
| 16 | 2.181-00183 | PLUG | 1 | ||
| 18 | 2.181-00336 | Plug ASSY | 1 | ||
| 19 | 2.181-00331 | PLUG | 1 | ||
| 22 | 2.181-00185 | PLUG | 1 | ||
| 23 | K9009730 | Oriffice | 1 | ||
| 25 | K9009731 | Ring persegi | 2 | ||
| 30 | K9005705 | VALVE, RELIEF | 1 |
