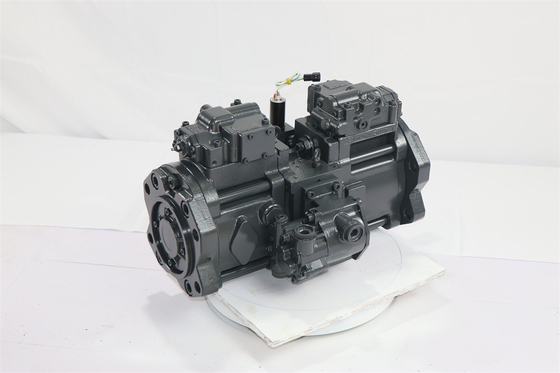

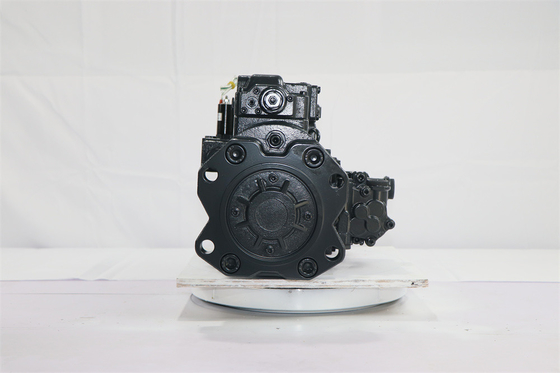

Pompa utama excavator SOLAR 255LC SOLAR 280LC SOLAR 290LC pompa hidrolik 2401-9233 2401-9154B 2401-9154C 401-00347
Detil Cepat Pompa Hidraulik Excavator
Nama produk:Pompa hidraulik excavator
Merek:Belparts
Model mesin:SOLAR 255LC SOLAR 280LC SOLAR 290LC
Ukuran kemasan: 84*38*49
Nomor bagian: 2401-9233 2401-9154B 2401-9154C 401-00347
Tekanan:Standar, Tekanan Tinggi
| Nama produk | Pompa hidraulik excavator |
| Merek | Belparts |
| Model mesin | SOLAR 255LC SOLAR 280LC SOLAR 290LC |
| Ukuran Kemasan | 84*38*49 |
| Nomor bagian | 2401-9233 2401-9154B 2401-9154C 401-00347 |
| Tekanan | Standar, Tekanan Tinggi |

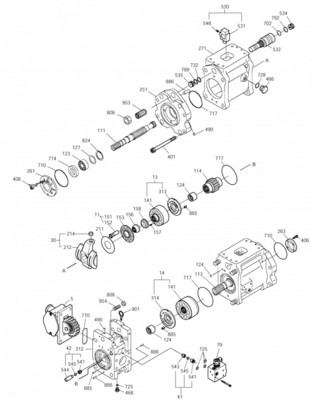

| # | Bagian No. | Nama Bagian | Komentar | Qty. | Permintaan harga |
| 901 | 212033 | Bolt, mata | 2 | ||
| 953 | 118892 | SET M16X30L | 2 | ||
| 954 | 113803 | SURUT, SEPATUH | 2 | ||
| * | 401-00059KT | SEAL KIT, BODY+REG+PTO | 1 SET | ||
| - | 401-00347 | Pompa, utama | 147 kg | 1 | |
| 5 | 719943 | PTO ASS'Y | 7 kg | 1 | |
| 79 | 719753 | Klep, proporsional | 3 kg | 1 | |
| 111 | 135323A | SHAFT, DRIVING ((FRONT) | 1 | ||
| 113 | 124569A | SHAFT, DRIVING ((R) | 1 | ||
| 114 | 137481 | Gear 1 | 1 | ||
| 123 | 219362 | Bantalan, Roller | 2 | ||
| 124 | 219363 | Berbagai jenis bantalan | 2 | ||
| 127 | 113784A | SPACER, BEARING | 4 | ||
| 13 | 716776-PH | CYL BLOCK ASSY ((RH) | 1 SET | ||
| 141 | 137491 | Blok, silinder | 1 | ||
| 313 | 115798A | PLATE, VALVE ((R) | 1 | ||
| 14 | 716777-PH | CYL BLOCK ASSY ((LH) | 1 | ||
| 141 | 137491 | Blok, silinder | 1 | ||
| 314 | 115799 | PLATE, VALVE ((L) | 1 | ||
| 11 | 704543A | Piston & Shoe ASS'Y | 2 SET | ||
| 151 | 113778C | Piston | 18 | ||
| 152 | 113779B | Sepatu | 18 | ||
| 153 | 117586 | Plat, dorong | 2 | ||
| 156 | 121437 | BUSH, SFERIK | 2 | ||
| 157 | 134535 | SPRING, CYLINDER | 18 | ||
| 158 | 113789 | SPACER | 2 | ||
| 211 | 113790B | Plat, Sepatu | 2 | ||
| 30 | 717008 | SWAASH PLATE ASS'Y | 2 | ||
| 212 | 113780-1 | Plat, SWASH | 3 kg | 2 | |
| 214 | 218550 | BUSH, TILTING | 2 | ||
| 251 | 113791A | Dukungan | 11 kg | 2 | |
| 261 | 135322 | COVER, SEAL ((FRONT)) | 1 | ||
| 263 | 129993 | Flange (F) | 1 | ||
| 271 | 113794B | Casing, Pump | 2 | ||
| 312 | 137259 | Blok, katup | 1 | ||
| 401 | 113797 | BOLT, HEX SOCKET HEAD | 8 | ||
| 406 | 200846 | BOLT, HEX SOCKET HEAD | 8 | ||
| 466 | 108847 | PLUG PF3/4 | 4 | ||
| 468 | 108844 | PLUG, VP | 2 | ||
| 490 | 134596 | PLUG ((NPTF1/16) | 18 | ||
| 530 | 717005 | TILTING PIN ASS'Y | 2 | ||
| 531 | 115792 | Pin, miring | 2 | ||
| 548 | 113380 | PIN, umpan balik | 2 | ||
| 532 | 113798A | PISTON, SERVO | 2 | ||
| 534 | 113799 | STOPPER ((L) | 2 | ||
| 535 | 113800 | STOPPER (S) | 2 | ||
| 41 | 704550A | CEK 1 ASS'Y | 2 | ||
| 541 | 113706 | SEAT | 2 | ||
| 543 | 113705 | STOPPER ((1) | 2 | ||
| 545 | 200166 | Bola, baja | 2 | ||
| 42 | 704544A | CEK 2 ASS'Y | 2 | ||
| 541 | 113706 | SEAT | 2 | ||
| 544 | 113703 | Stopper 2 | 2 | ||
| 545 | 200166 | Bola, baja | 2 | ||
| 702 | 220019 | O-RING 1BG35 | 2 | ||
| 710 | 204452 | O-RING 1BG95 | 2 | ||
| 717 | 201639 | O-RING 1BG145 | 4 | ||
| 724 | 201765 | O-RING 1BP8 | 16 | ||
| 725 | 201689 | O-RING 1BP11 | 6 | ||
| 728 | 201721 | O-RING 1BP24 | 4 | ||
| 732 | 220016 | O-RING 1BP18 | 2 | ||
| 774 | 232117 | SEAL, OIL TCV40V | 1 | ||
| 789 | 203480 | RING, BACK-UP T2P18 | 2 | ||
| 792 | 203418 | RING, BACK-UP T2G45 | 2 | ||
| 806 | 201557 | NUT, HEX (ORNM16) | 2 | ||
| 808 | 102048 | NUT=ORMN20 | 2 | ||
| 824 | 202606 | Ring, Snap C-40S | 2 | ||
| 885 | 113801 | PIN D8X12L | 2 | ||
| 886 | 200678 | PIN, SPRING D6X14 | 2 kg | 4 |
