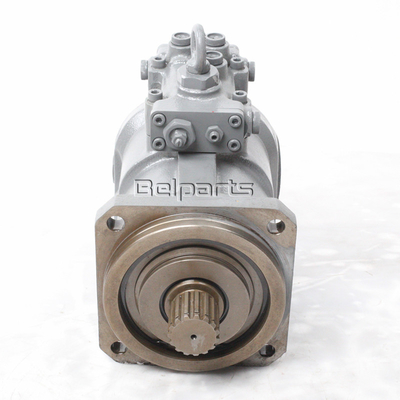

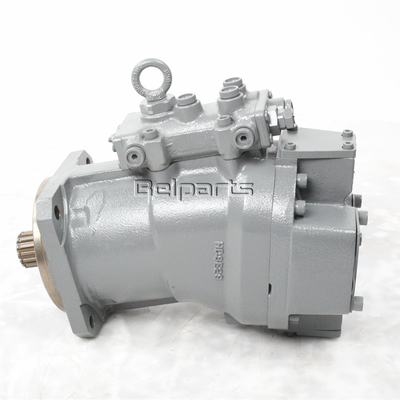

Bagian Belparts bagian excavator EX300-3 9122780 9136850 kumpulan pompa hidrolik untuk Hitachi
| Model | EX300-3 |
| Penggunaan | Penggalian |
| Memohon | Bagian excavator |
| Nomor bagian | 9122780 9136850 |
| Tempat Negara | Cina |
| Pembayaran | T/T, PayPal, Jaminan Perdagangan |
| Nama Bagian | pompa hidraulik |
| Kata kunci | pompa utama excavator |
| # | Bagian No. | Nama Bagian | Qty. | Permintaan harga |
|---|---|---|---|---|
| 9122780 | PEMPOM; SINGLE |
2 | ||
| (9136850) | PEMPOM; SINGLE |
2 | ||
| 02 | 1014184 | . Casing; Pompa | 1 | |
| 03 | 8046112 | . Pengemasan | 1 | |
| 04 | 2023051 | . DISC; Mengemudi | 1 | |
| 06 | 4190694 | . BRG.; ROL. | 1 | |
| 07 | 4209323 | . BRG.; ROL. | 1 | |
| 08 | 3035965 | . SPACEER | 1 | |
| 09 | 4191665 | . NUT; BRG. | 1 | |
| 13 | 8049118 | . Piston | 7 | |
| 13 | 8051275 | . Piston | 7 | |
| 14 | 2022744 | . Rotor | 1 | |
| 16 | 8035539 | . SHAFT; Pusat | 1 | |
| 17 | 4184779 | . bola | 1 | |
| 18 | 4191667 | . cincin; mempertahankan | 1 | |
| 19 | 4194362 | . SPRING; KOMPRES. | 1 | |
| 20 | 4193062 | . cincin; mempertahankan | 1 | |
| 21 | 4198956 | . PIN | 1 | |
| 23 | 3035966 | . COVER; SEAL | 1 | |
| 24 | 4191664 | . O-RING | 1 | |
| 25 | 4094325 | . cincin; mempertahankan | 1 | |
| 26 | 4232070 | . SEAL; Minyak | 1 | |
| 27 | 9742978 | . katup | 1 | |
| 31 | 3039569 | . LINK | 1 | |
| 32 | 9724756 | . Lever | 2 | |
| 34 | 4179179 | . PIN | 2 | |
| 35 | 4179177 | . PIN | 2 | |
| 36 | 4200227 | . PIN | 1 | |
| 37 | 4179176 | . PIN | 1 | |
| 38 | 4146370 | . cincin; mempertahankan | 6 | |
| 39 | 1011957 | . Kepala | 1 | |
| 39 | 1011956 | . Kepala | 1 | |
| 41 | 3036326 | . PISTON; SERVO | 1 | |
| 42 | 4193245 | . PIN | 1 | |
| 43 | 4179838 | . Sekrup; SET | 1 | |
| 46 | 4099290 | . PIN; SPRING | 2 | |
| 48 | 4180349 | . O-RING | 10 | |
| 49 | M341245 | . BOLT; SOCKET | 8 | |
| 50 | 495841 | . WASHER; SPRING | 8 | |
| 51 | 4108720 | . PLUG | 1 | |
| 51A | 957366 | .. O-ring | 1 | |
| 52 | 4204862 | / Hentikan. | 1 | |
| 53 | 955020 | . O-RING | 1 | |
| 59 | 984623 | . O-RING | 1 | |
| 62 | 4216295 | / Hentikan. | 1 | |
| 63 | M340820 | . BOLT; SOCKET | 8 | |
| 64 | 4514388 | . WASHER; SPRING | 8 | |
| 66 | 9122781 | . Regulator |
1 | |
| 66 | (9136851) | . Regulator |
1 | |
| 69 | A810055 | . O-RING | 1 | |
| 70 | 4515041 | . PIN; SPRING | 2 | |
| 75 | 3065868 | . NAME-PLATE | 1 | |
| 76 | M492564 | . menggeliat; mengemudi | 2 | |
| 78 | 4211432 | . PLUG | 1 | |
| 79 | 4506424 | . O-RING | 1 | |
| 81 | 9089486 | . PLUG | 1 | |
| 81A | 4509180 | .. O-ring | 1 |
Produk utama kami adalah Excavator Hydraulic Spare Parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulator,Katup Bantuan, Motor kipas angin dan barang-barang hidrolik lainnya dengan kualitas asli dan aftermarket.Asia Tenggara, Afrika, Amerika Utara, Amerika Selatan, Eropa dan Oceania dengan merek kami sendiri "Belparts", yang sangat dipuji oleh pelanggan asing dan menikmati reputasi yang tinggi.
Apa yang dapat disediakan perusahaan kami:
1Bagian hidraulik:Pompa hidrolik, katup kontrol utama, silinder hidrolik, drive akhir, motor perjalanan, motor ayunan dll.
2Bagian mesin:Asset mesin, piston, ring piston, blok silinder, kepala silinder, poros engkol, turbocharger, pompa injeksi bahan bakar, starter motor dan alternator dll.
CyFor Linder Head, CyFor Linder Block, Turbocharger, Piston, Piston Ring, Metal, Crankshaft, Pompa Minyak, Pompa Injeksi Bahan Bakar, Pompa Air, Alternator, Motor Mulai
3Bagian bawah kendaraan:Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler dan Idler cushion, coil adjuster, track karet, dll.
4Bagian kabin:Assy kabin operator, kabel, monitor, pengontrol, kursi, pintu dll.
5suku cadang hidraulik:Katup utama, Pompa utama, Katup Solenoid, Boom/Arm/Bucket CyFor Linder, Final Drive, Travel Motor,
